Non-Trouble Code Procedures

DIAGNOSIS PROCEDURE








1. Check to see if the battery voltage is normal.
2. Check to see if the fuse is normal.

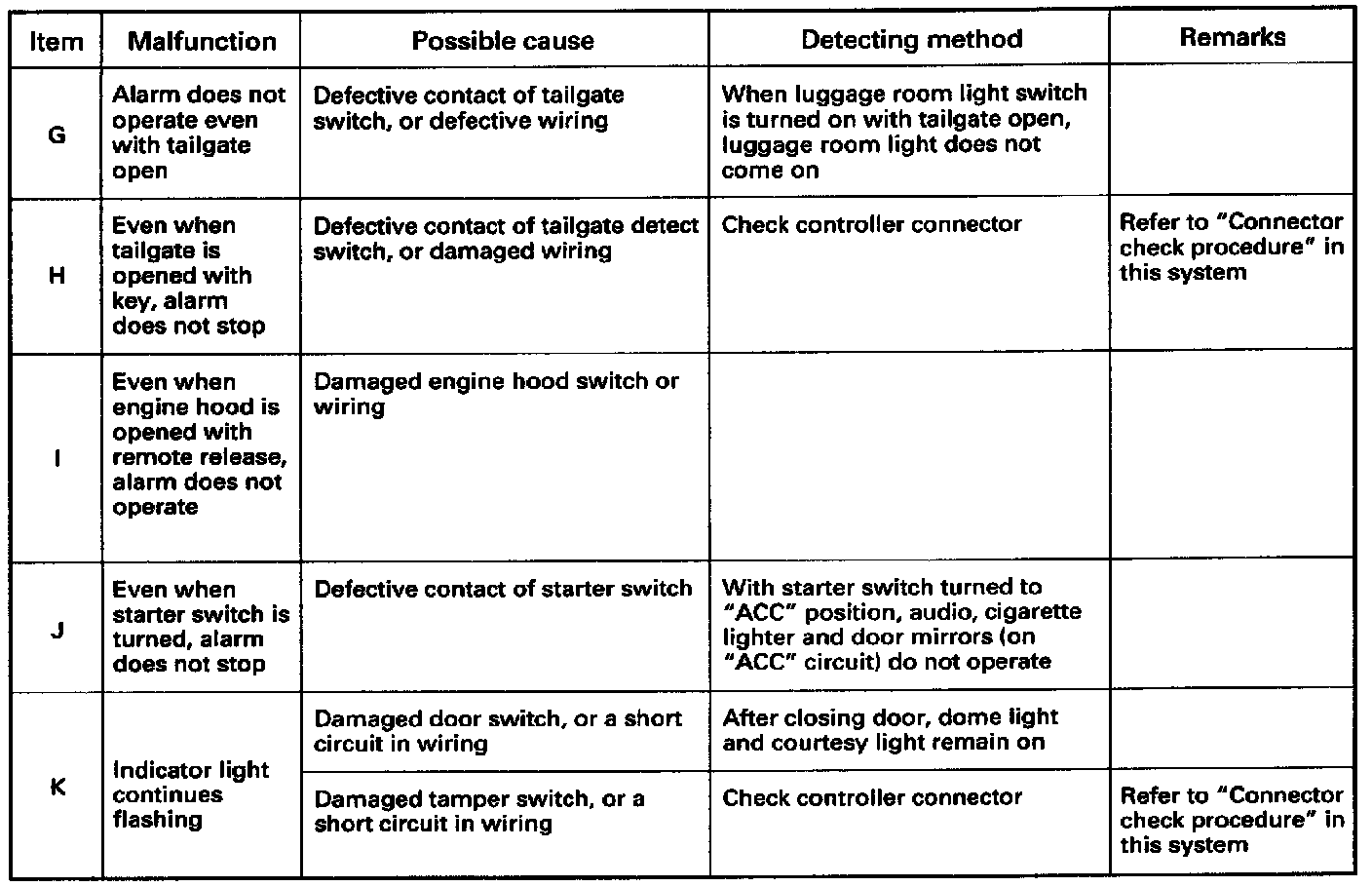

3. Replace the anti-theft controller with one reserved for test. If a trouble recurs even after replacing the controller, find out the cause of the trouble by referring to "System check procedure" and the following list.












SYSTEM CHECK PROCEDURE








CONNECTOR CHECKING PROCEDURE
