Home >> Acura Truck >> 2007 >> RDX L4-2.3L Turbo >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Locations >> Maintenance Data

Maintenance Data

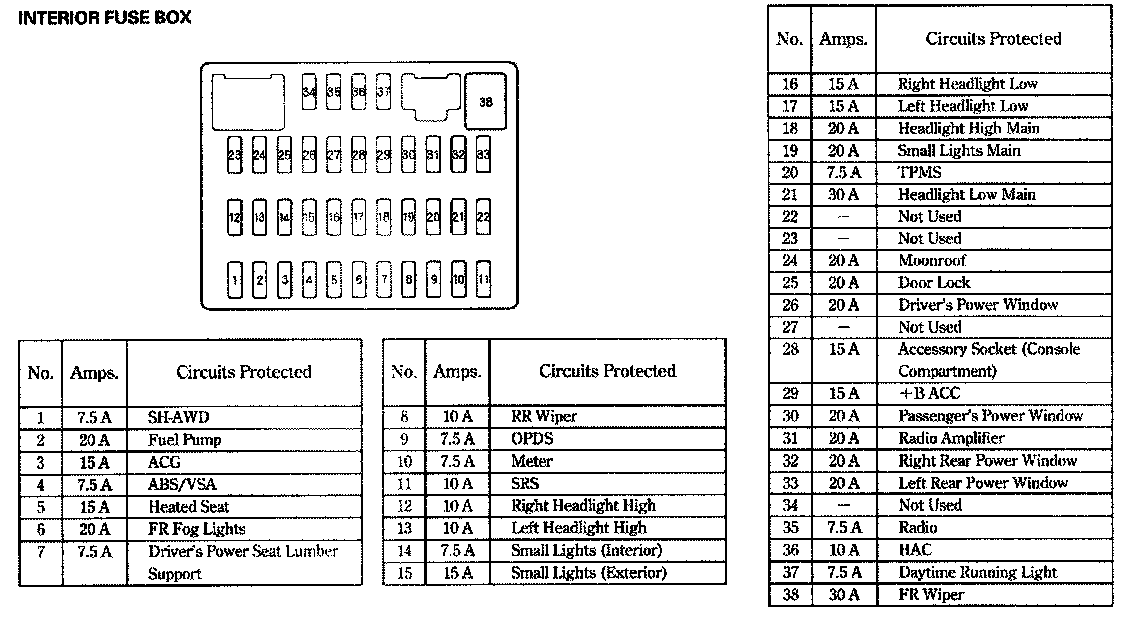

Interior Fuse Box:

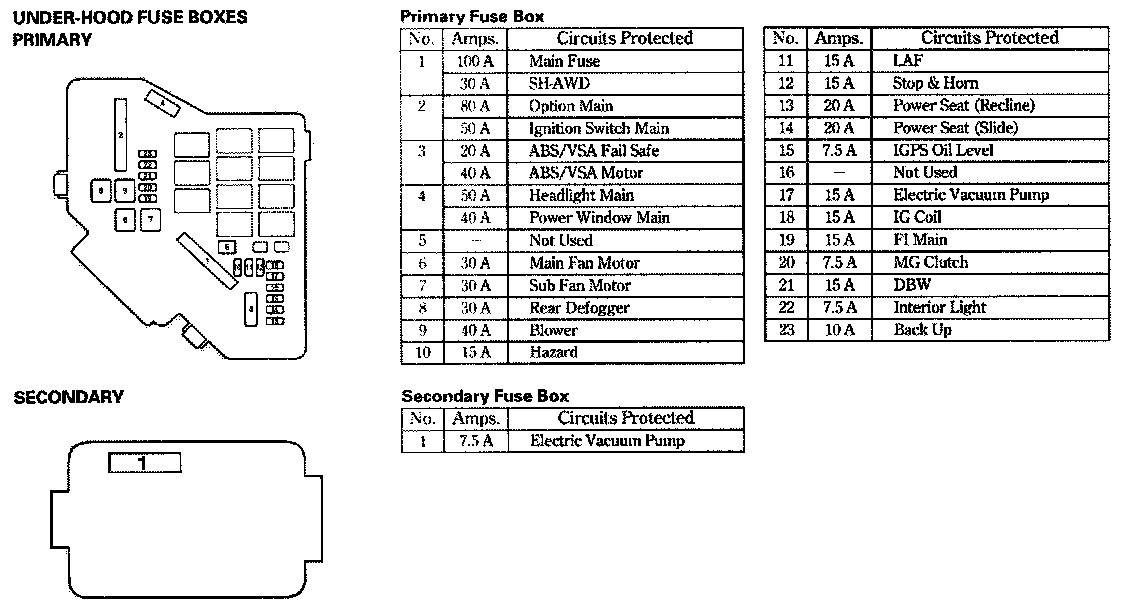

Under-Hood Fuse Boxes:
