Control Assembly: Service and Repair

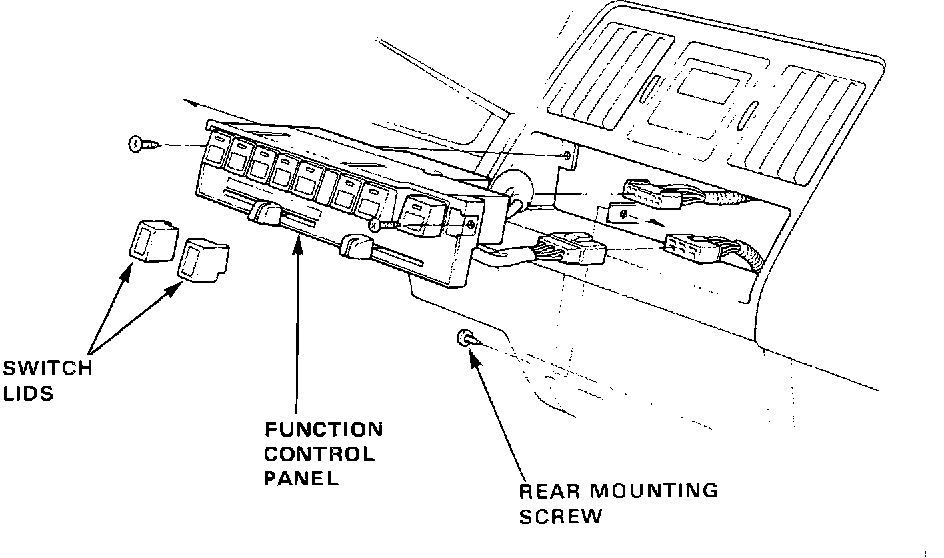

REMOVALFunction Control Panel Removal:
1. Remove glove box and rear mounting screw.
2. Remove switch hole lids and screws.
3. Disconnect air mix cable.
4. Pull panel from dash and unplug connectors.
DISASSEMBLY

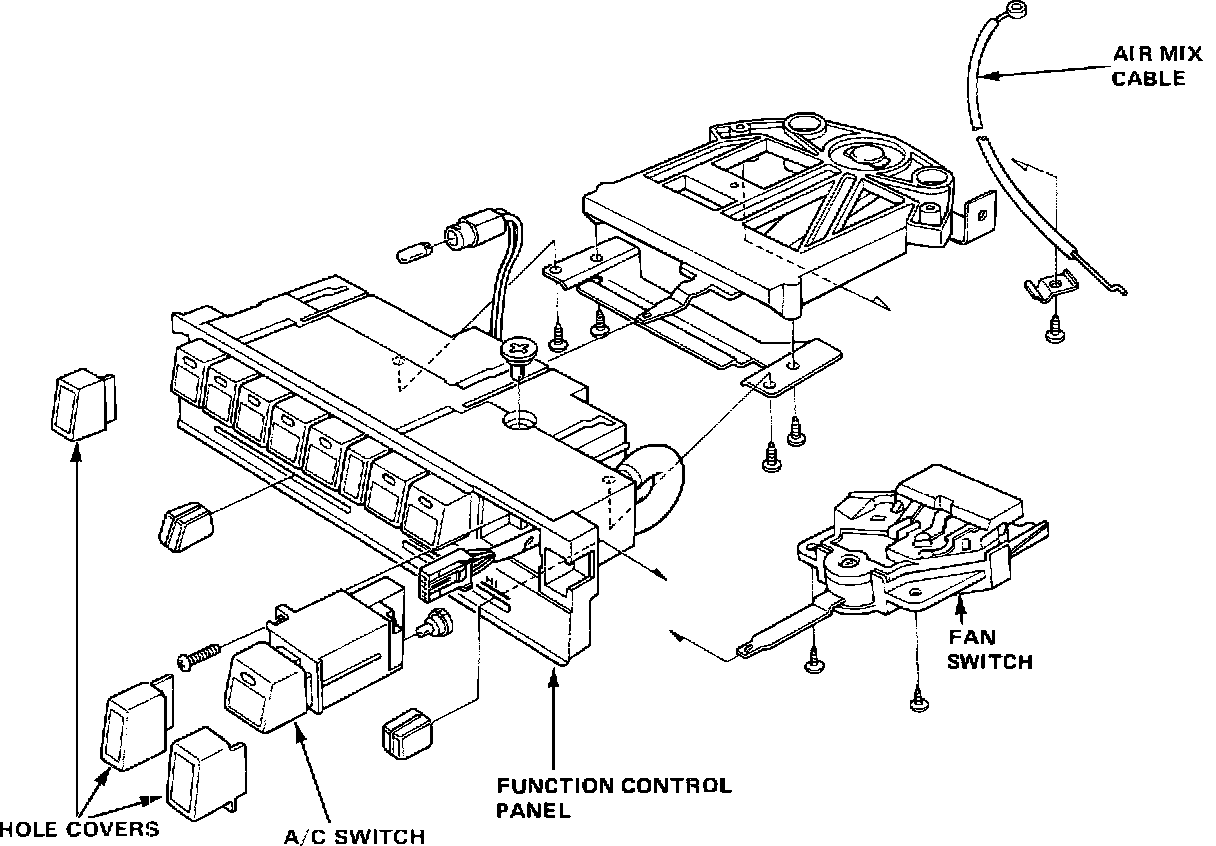

Function Control Panel Disassembly:
