Recirculation Control Motor Testing

Recirculation Control Motor Testing

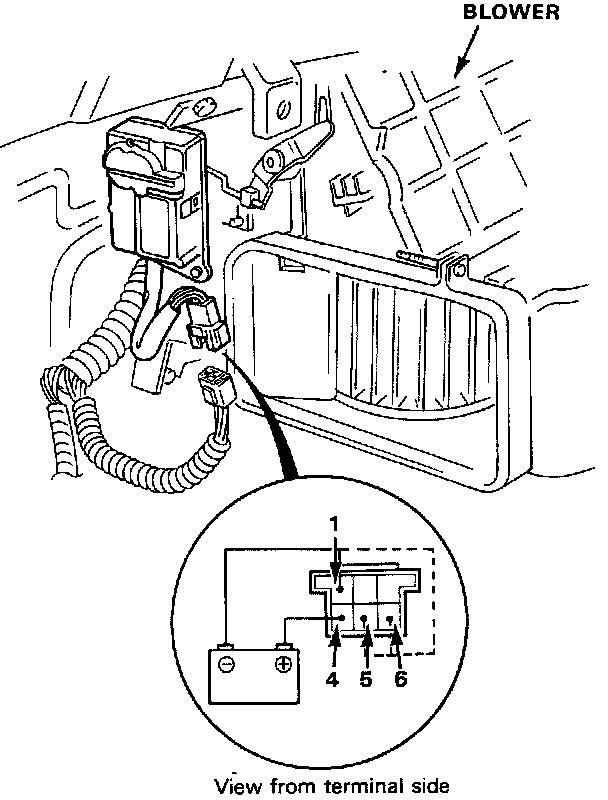

1. Connect the battery positive to the 4 terminal of the recirculatlon control motor connector and negative to 1 terminal.
2. Using a jumper wire connect the 1 terminal and 5 or 6 terminal.
- From the recirculation door REC position the motor should turn with the 1 terminal connected to 6 terminal.
- From the door FRESH position, the motor should turn with the 1 terminal connected to 5 terminal.
4. The motor automatically stops after half turn with the jumper wire connected.
