Home
>>
Acura
>>
1991
>>
NSX V6-3.0L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

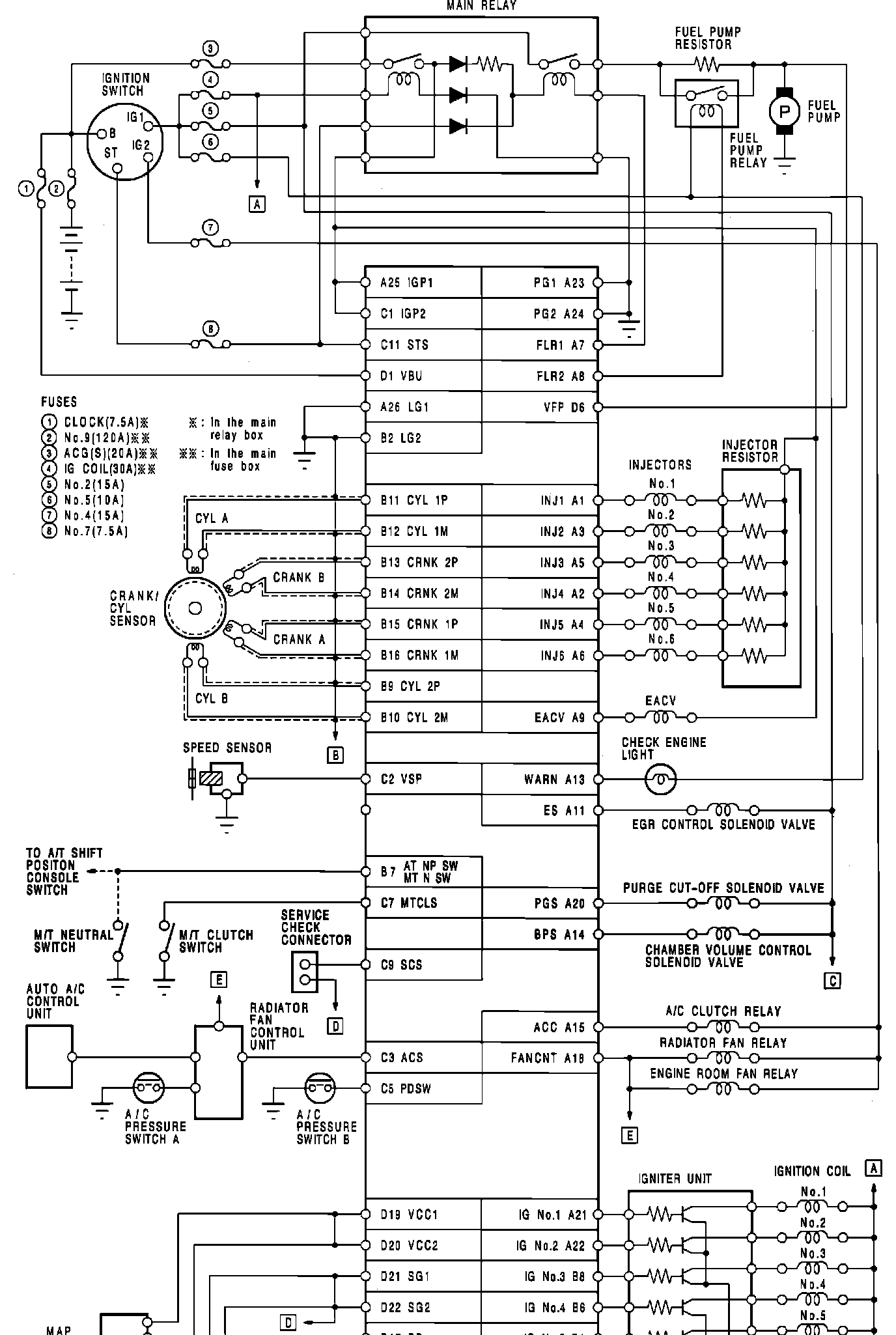

Engine Control Module
Engine Control Module
0 � Electrical Connections:
