Entry Light

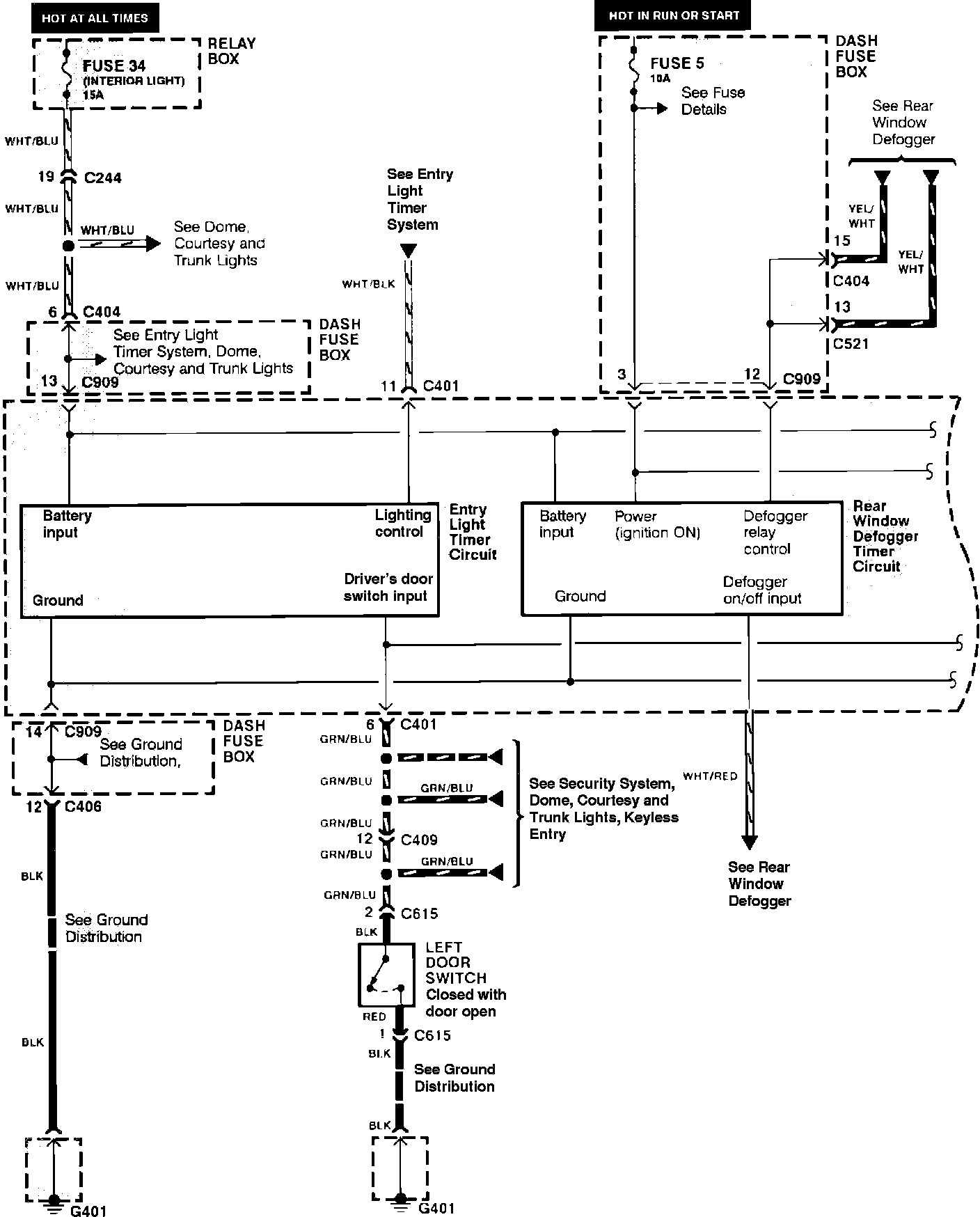

Integrated Control Unit: Entry Light, Light-on Warning, Rear Window Defogger Timer And Side Marker Flasher Circuits:

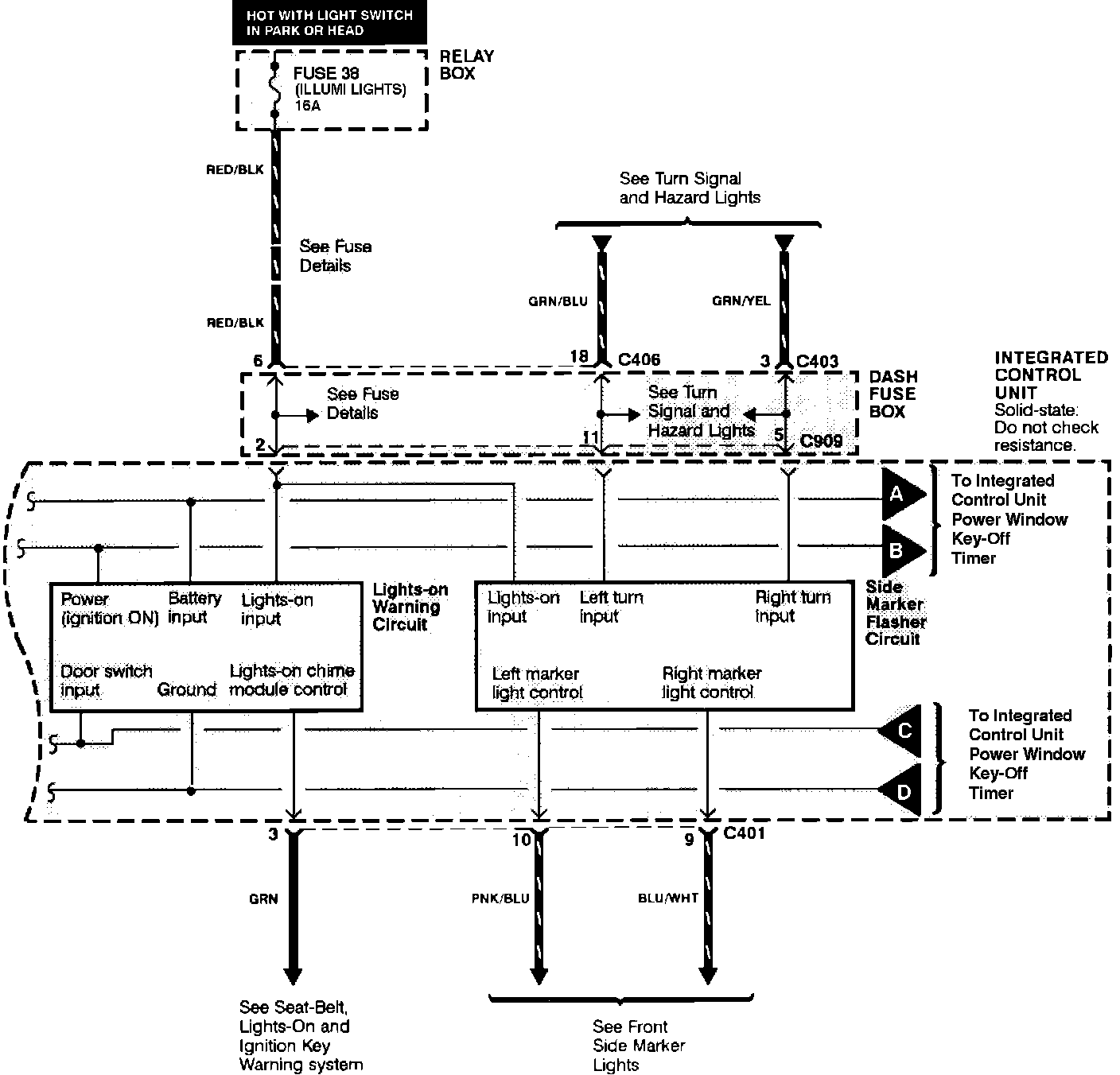

Integrated Control Unit: Entry Light, Lights-on Warning, Rear Window Defogger Timer And Side Marker Flasher Circuits:
