Power Window Key-Off Timer

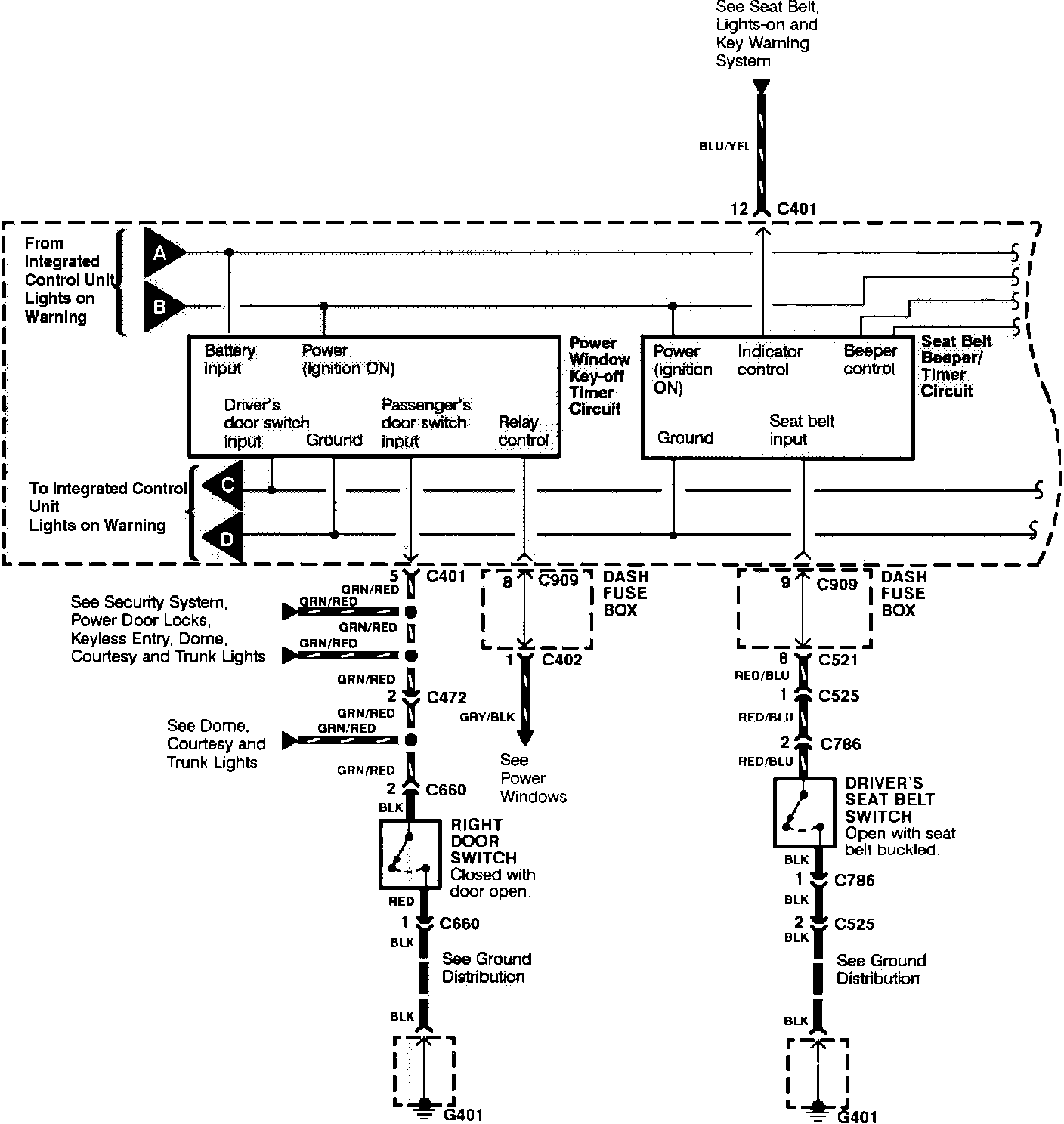

Integrated Control Unit: Ignition Key Warning Beeper, Oil Pressure Warning Flasher, Power Window Key-off Timer And Seat Belt Timer Circuits:

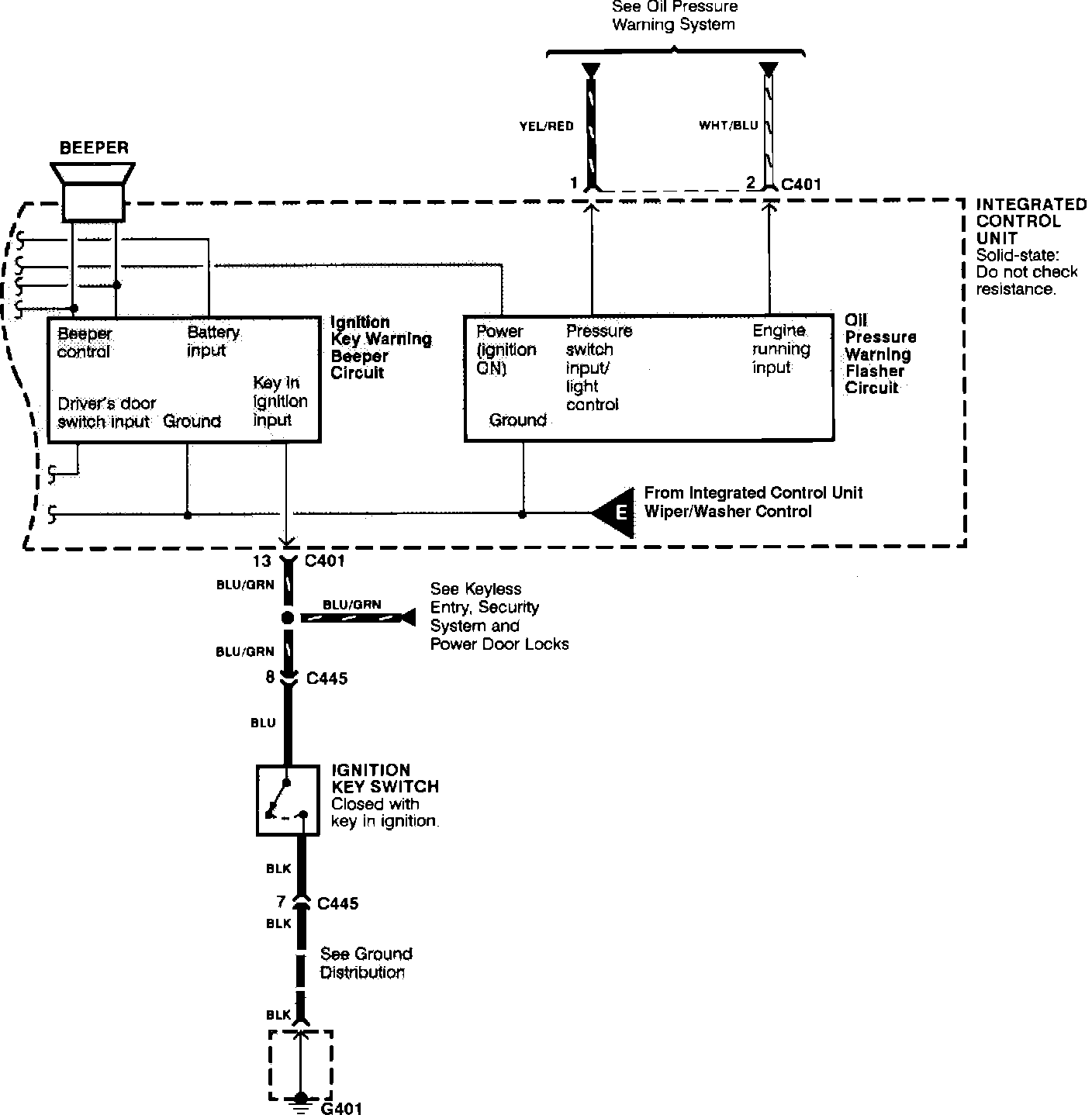

Integrated Control Unit: Ignition Key Warning Beeper, Oil Pressure Warning Flasher, Power Window Key-off Timer And Seat Belt Timer Circuits:
