Shift Interlock Control Module

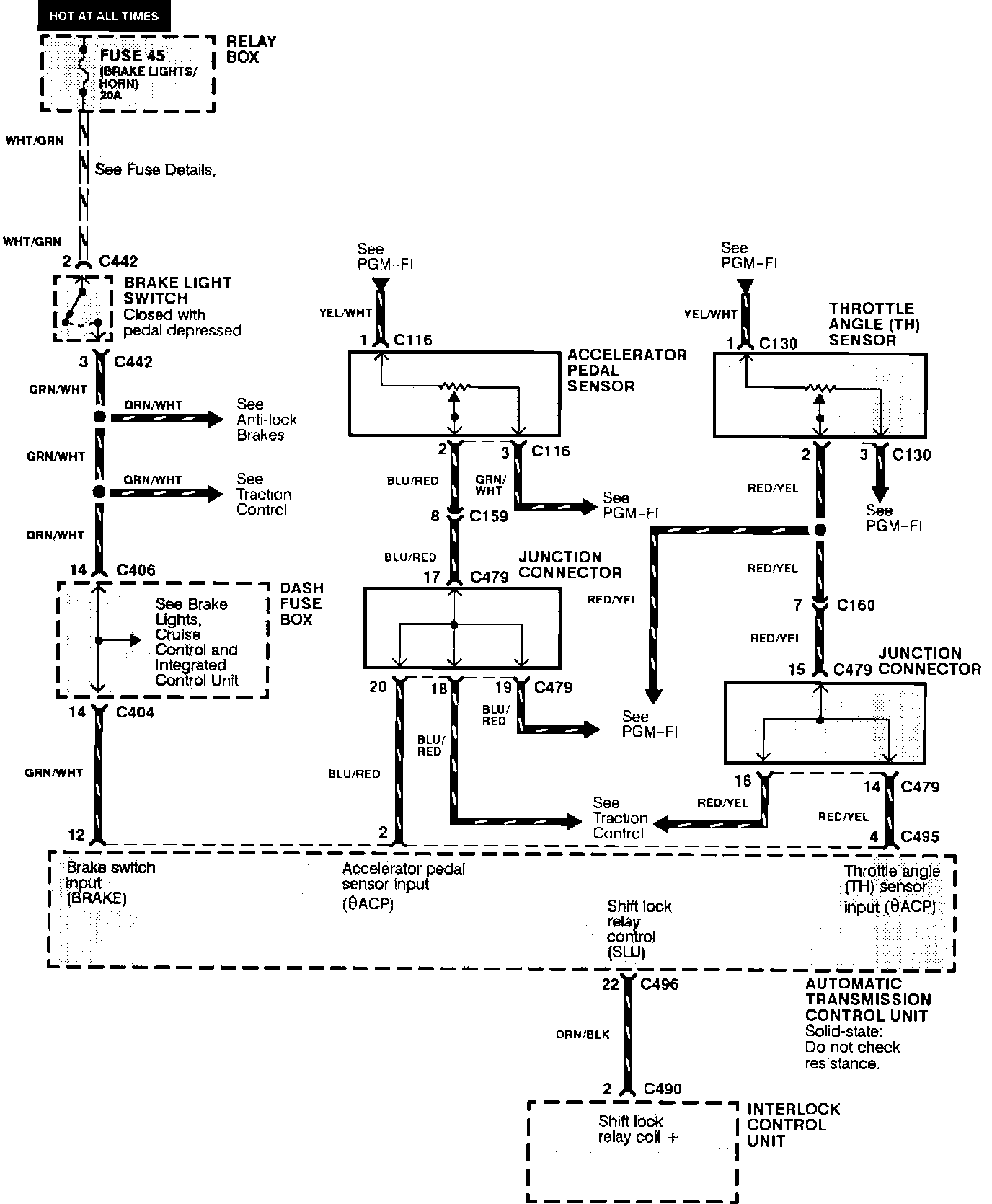

Automatic Transmission Controls: Brake Light Switch, Interlock Control Unit, Accelerator Pedal Sensor And Throttle Angle Sensor:
