Acura
>>
1991
>>
NSX V6-3.0L DOHC
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Locations
>>

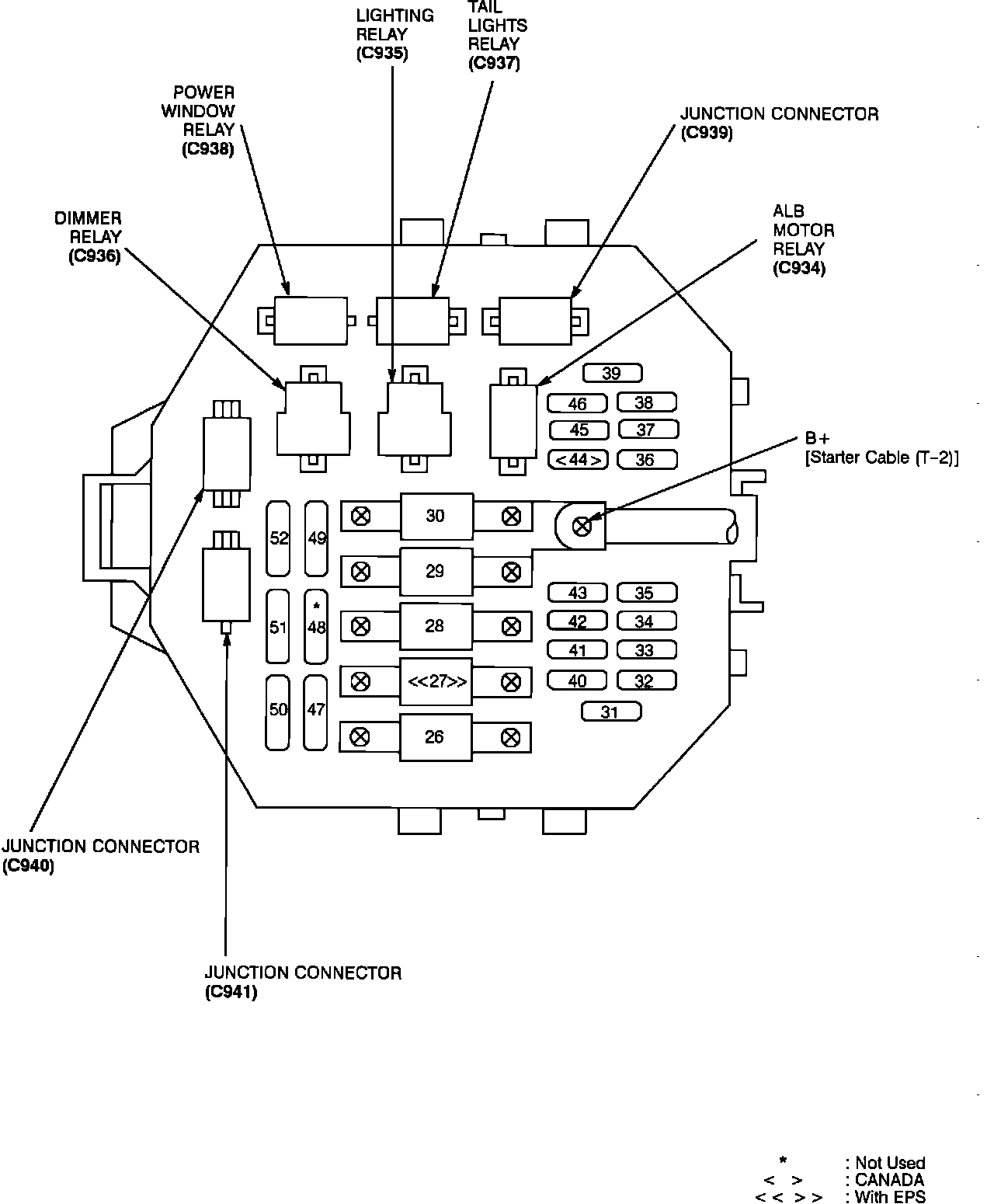

Fuse/Relay Box
Fuse/Relay Box

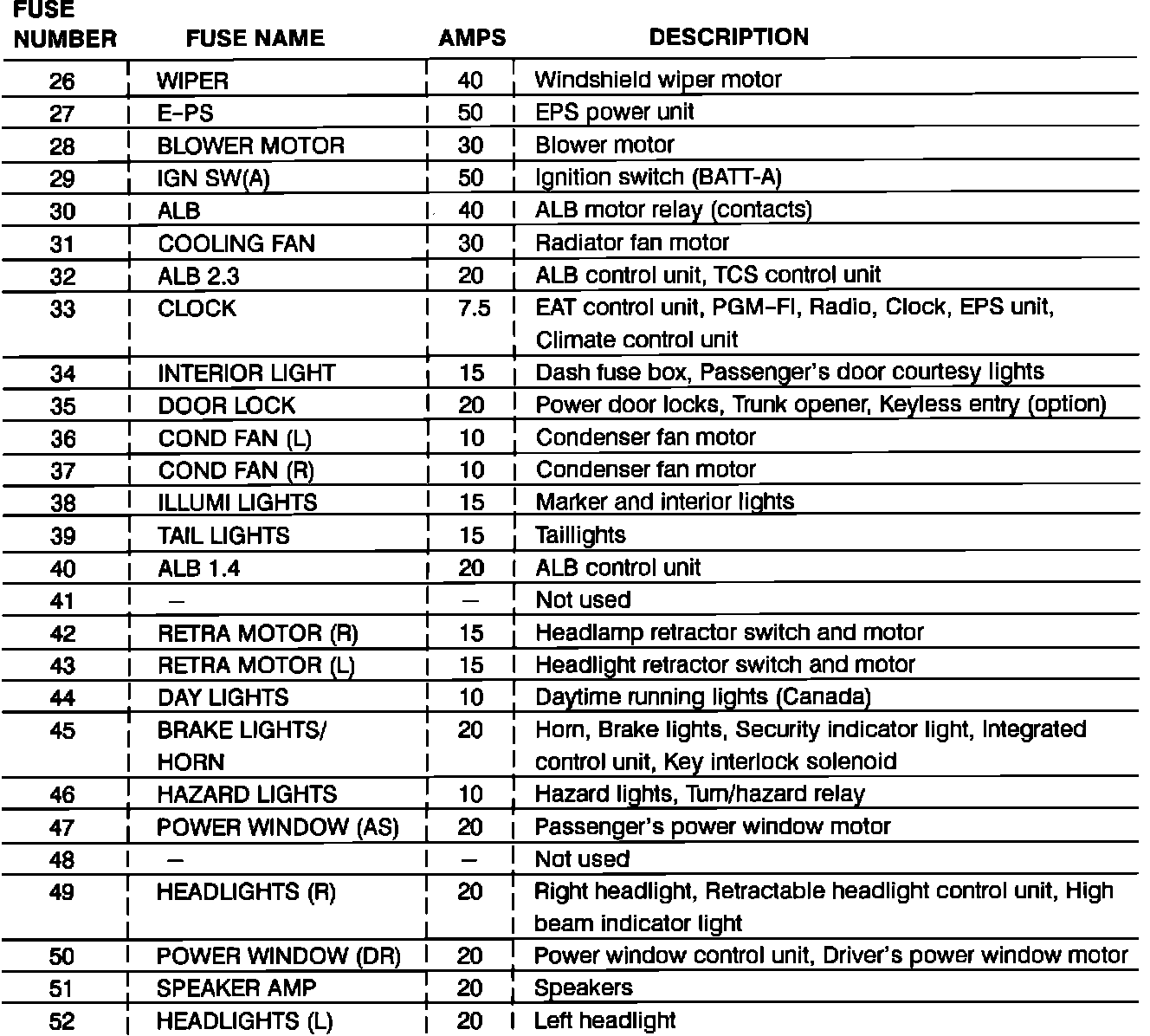

Fuse Panel Details: Relay Box:
Fuse Panel Details: Relay Box:
