Electronic Control Unit (ECU) Connections

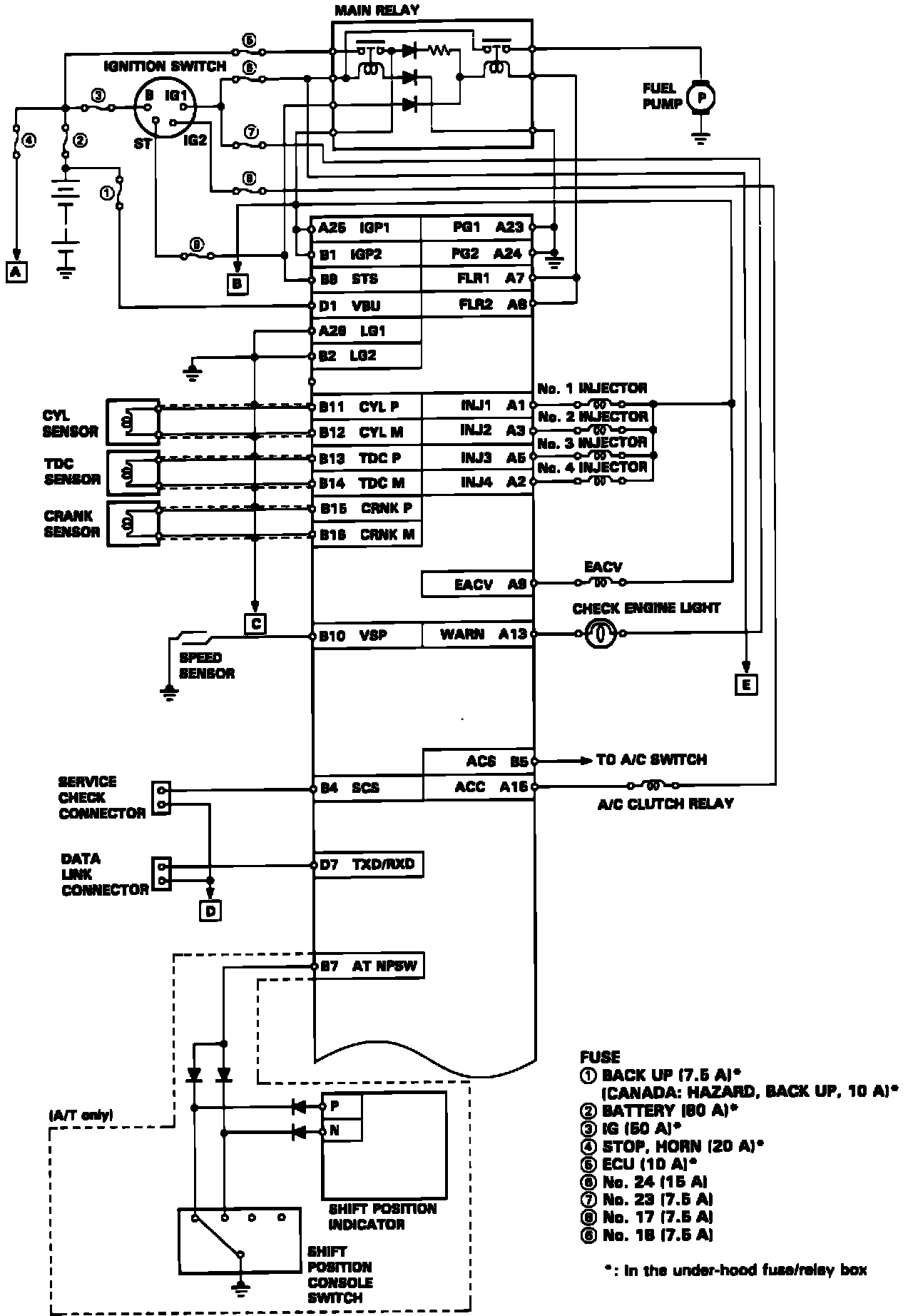

ECU Pin Connector Numbers:

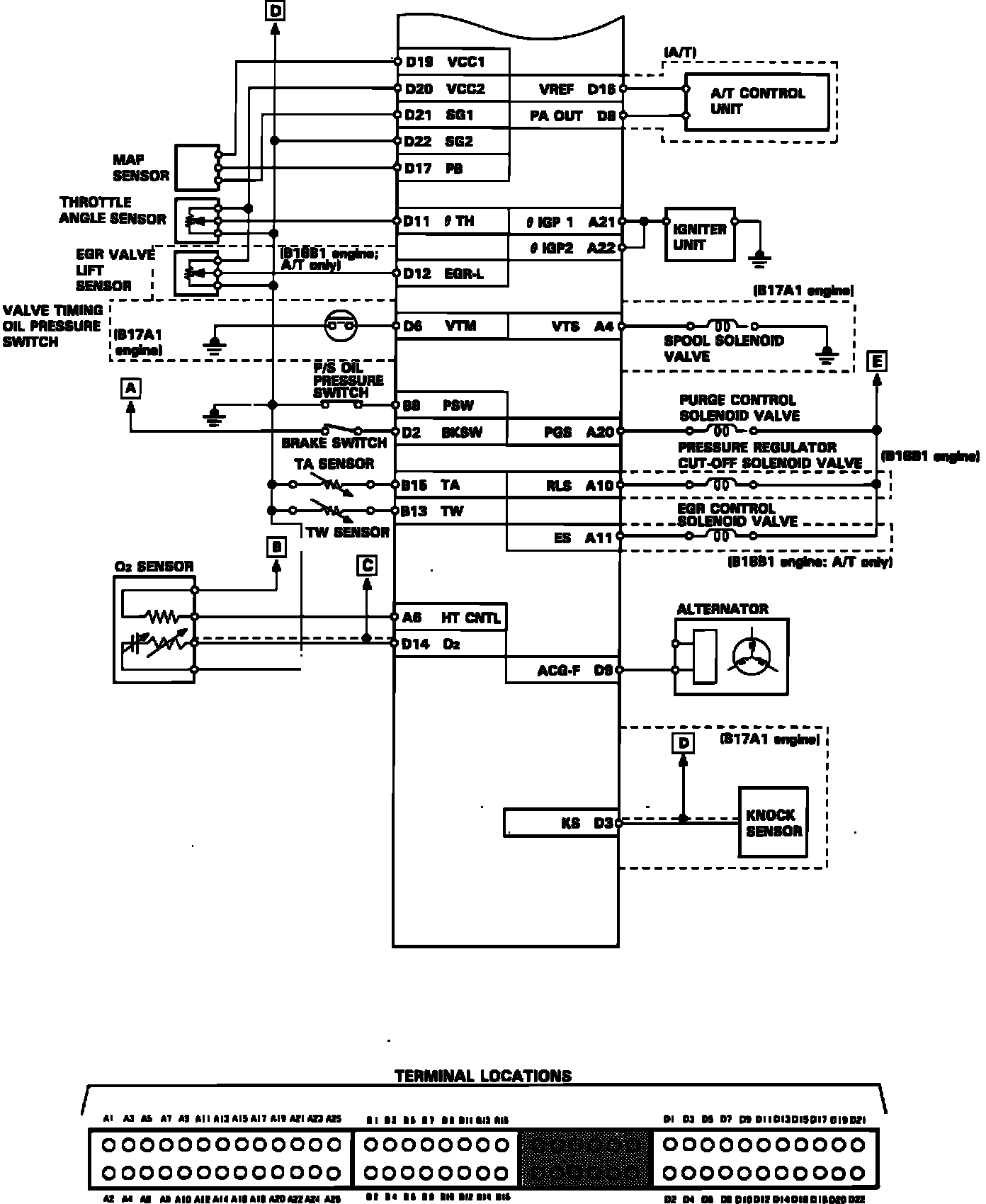

Electronic Control Unit Pin Locations:
