Electronic Climate Control

REMOVAL






CAUTION:

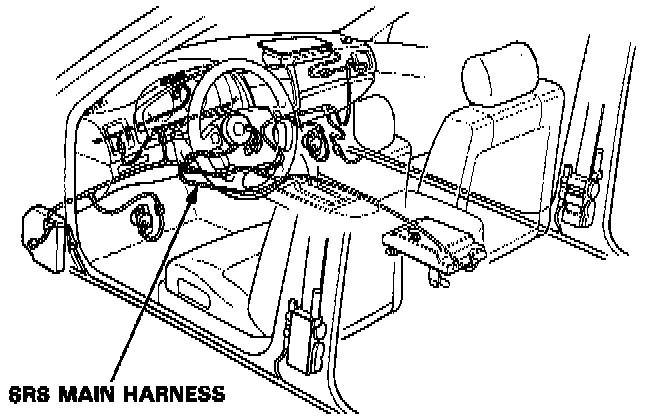

- All SRS wiring harnesses are covered with yellow outer insulation.
- Before disconnecting any part of the SRS wire harness, install the short connectors.
- Replace the entire affected SRS harness assembly if it has an open circuit or damaged wiring.

1. Remove the radio cassette unit. Service and Repair

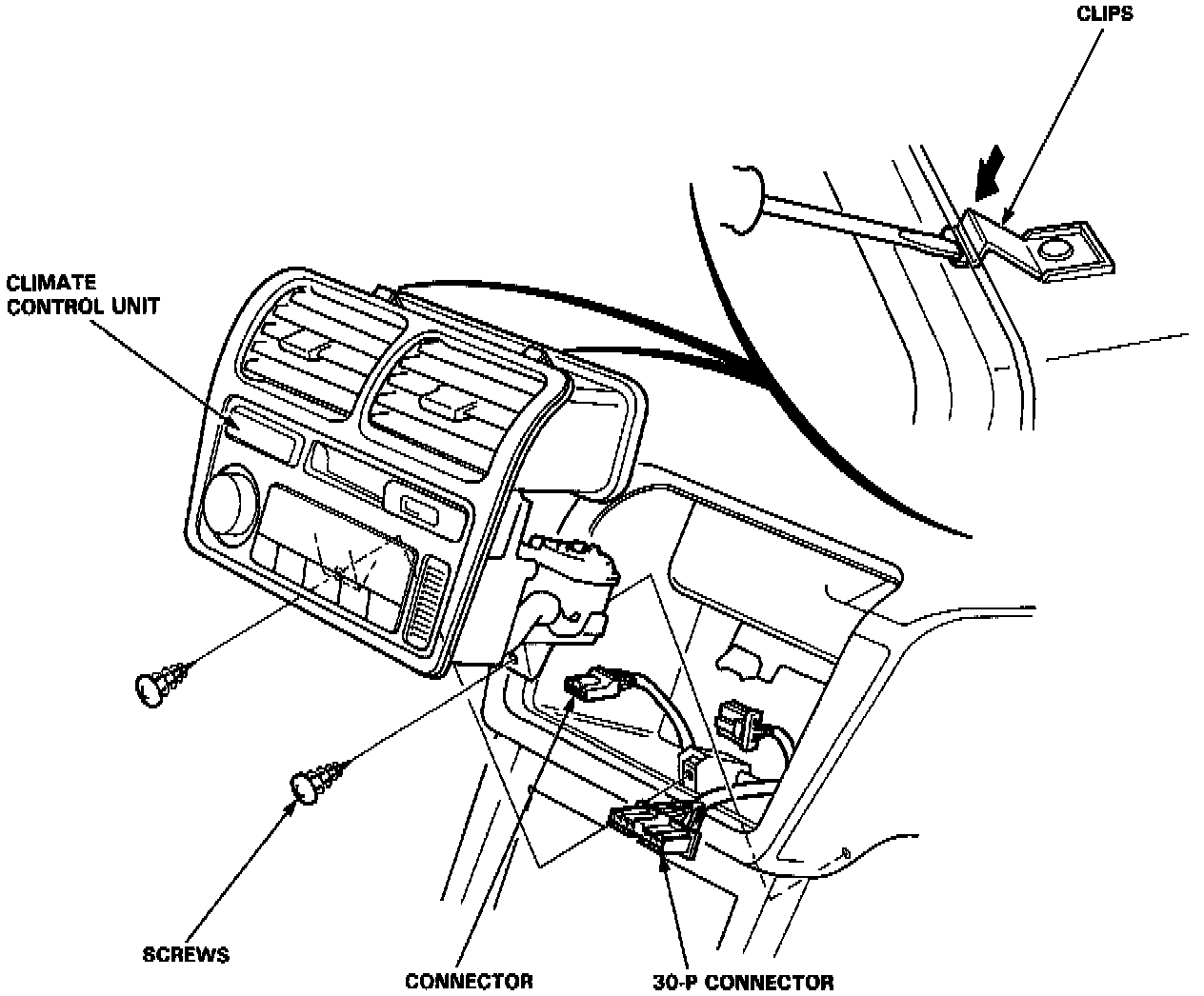

2. Remove the screws then disconnect the automatic climate control unit connectors.
3. Remove the climate control unit assembly by pushing the clips down as shown.

CAUTION: Be careful not to damage the center console panel and the dashboard.
