Manual Climate Control

CAUTION:

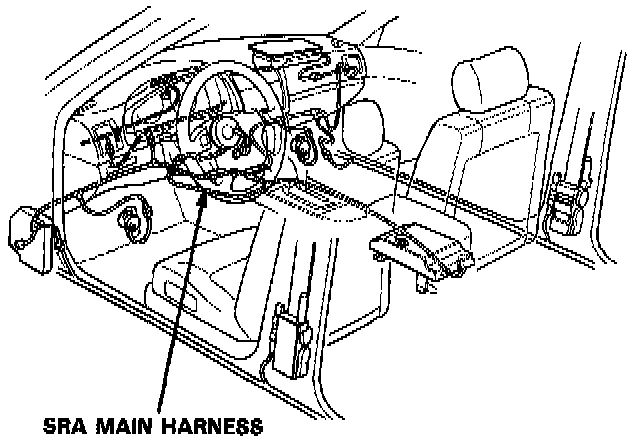

- All SRS wiring harnesses are covered with yellow outer insulation.
- Before disconnecting any part of the SRS wire harness, install the short connector.
- Replace the entire affected SRS harness assembly if it has an open circuit or damaged wiring.





1. Remove the radio/cassette unit. Service and Repair

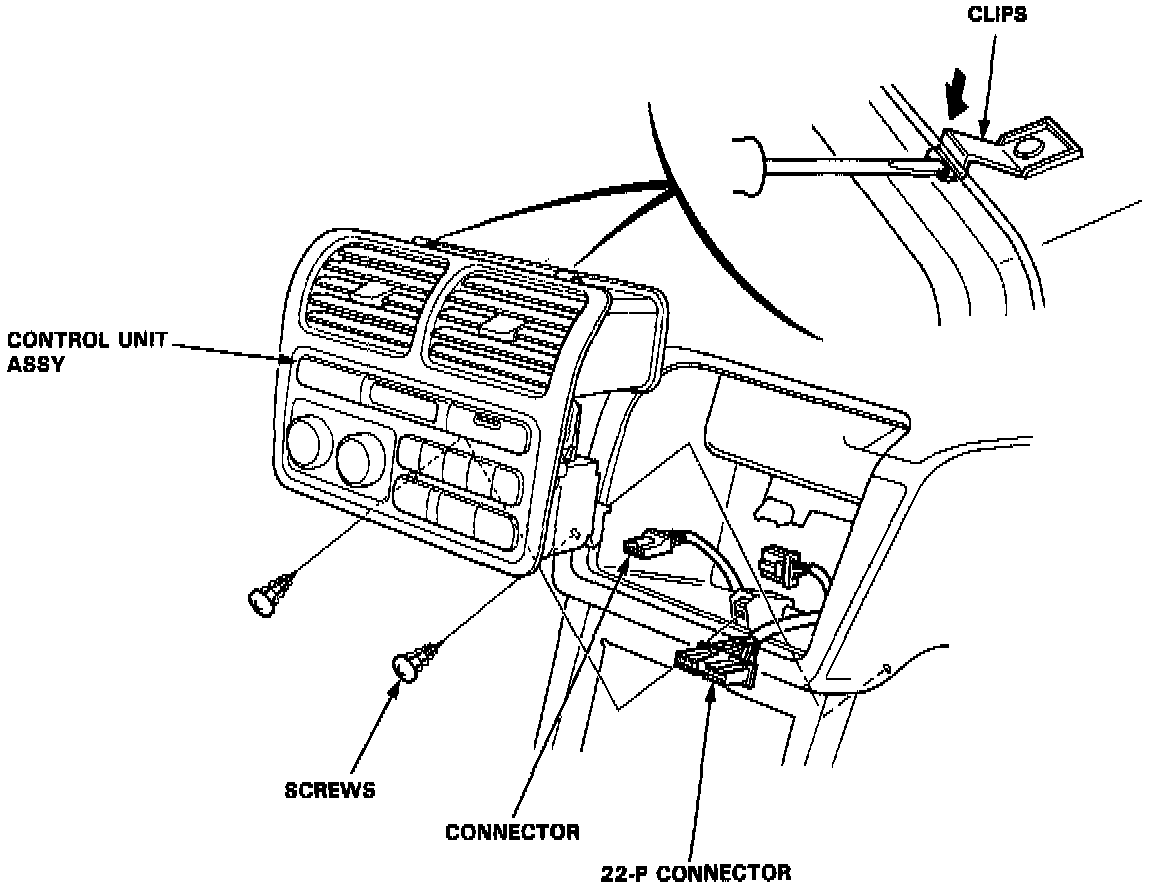

2. Remove the screws then disconnect the control unit connectors.
3. Remove the control unit assembly by pushing the clips down as shown.

CAUTION: Be careful not to damage the center console panel and the dashboard.
