Home >> Acura >> 1992 >> NSX V6-3.0L DOHC >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Locations >> Under-Dash Fuse Box

Under-Dash Fuse Box

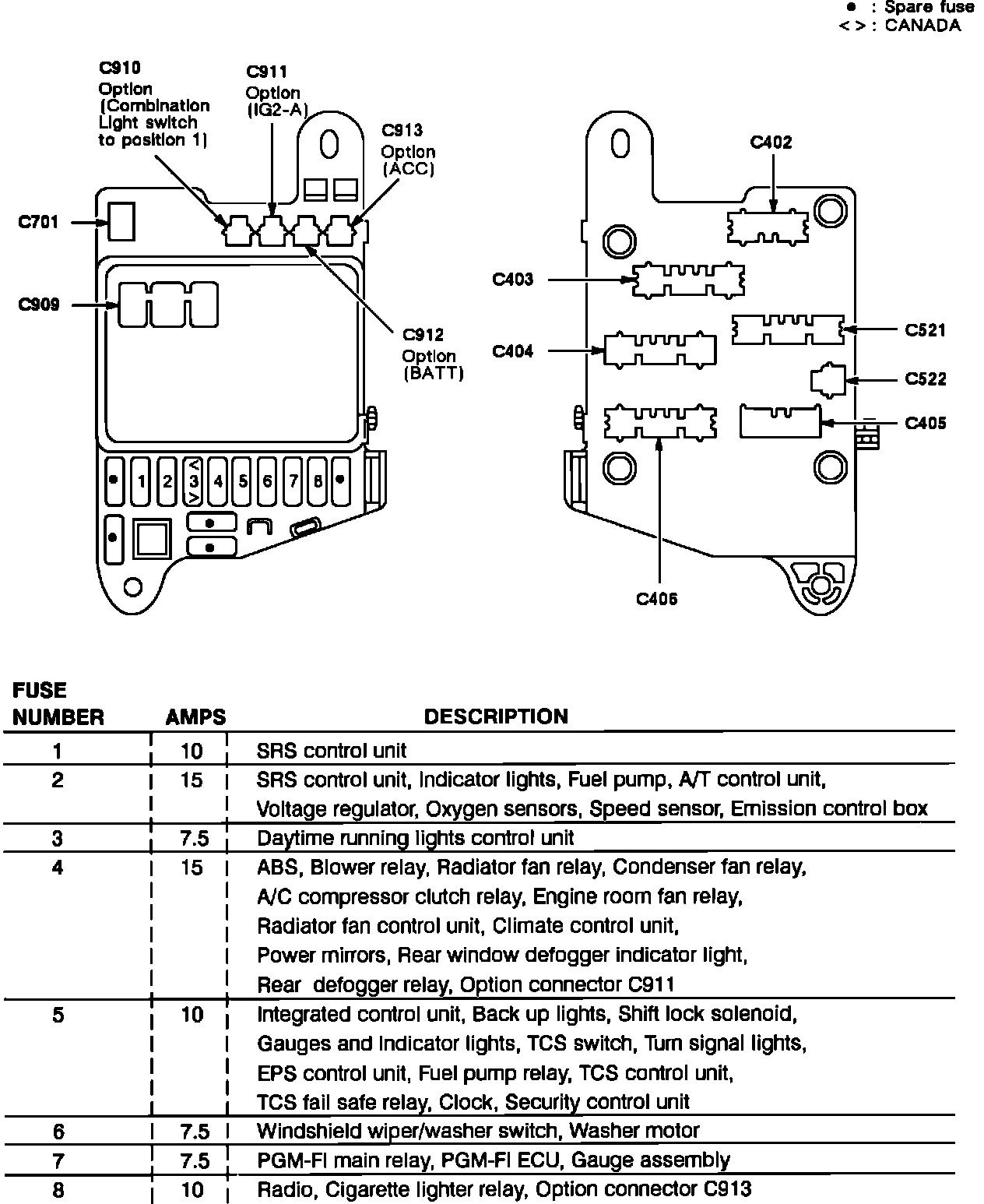

Fuse Panel Details: Under-dash Fuse Box:
