Compressor Controls

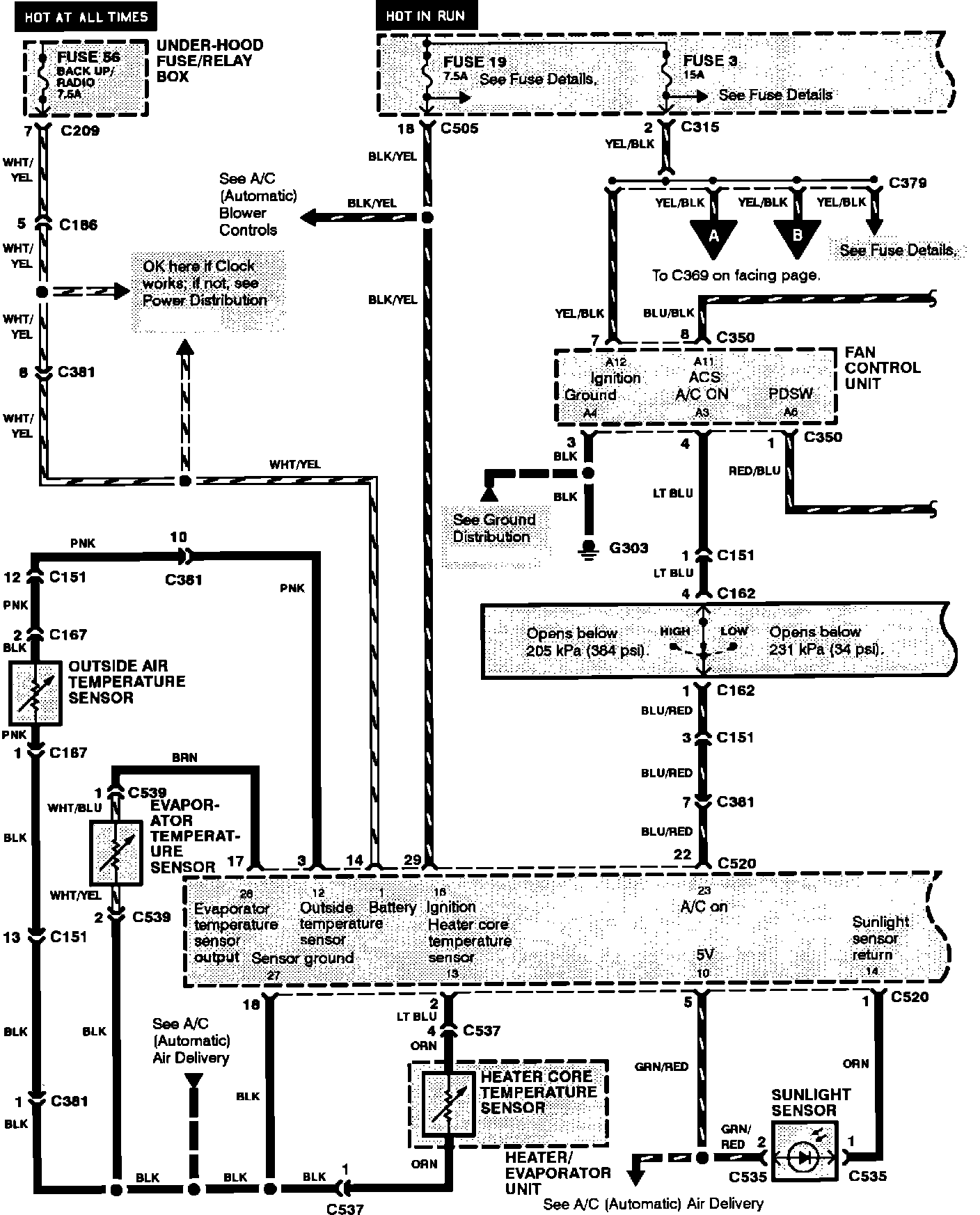

Air Conditioner (Automatic Controls): Compressor Controls:

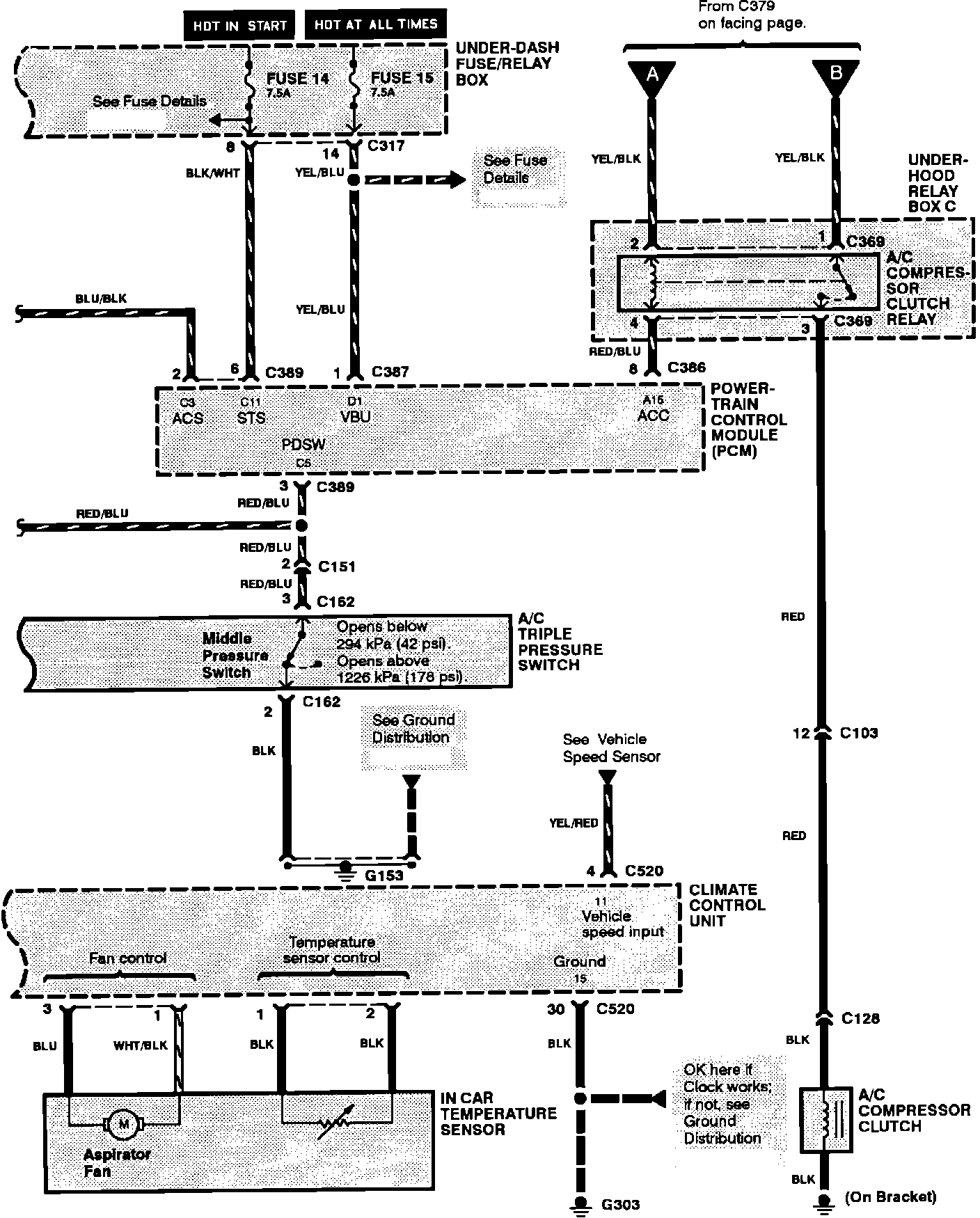

Air Conditioner (Automatic Controls): Compressor Controls:
