Home >> Acura >> 1993 >> NSX V6-3.0L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Shift Interlock, A/T >> Shift Interlock Control Module

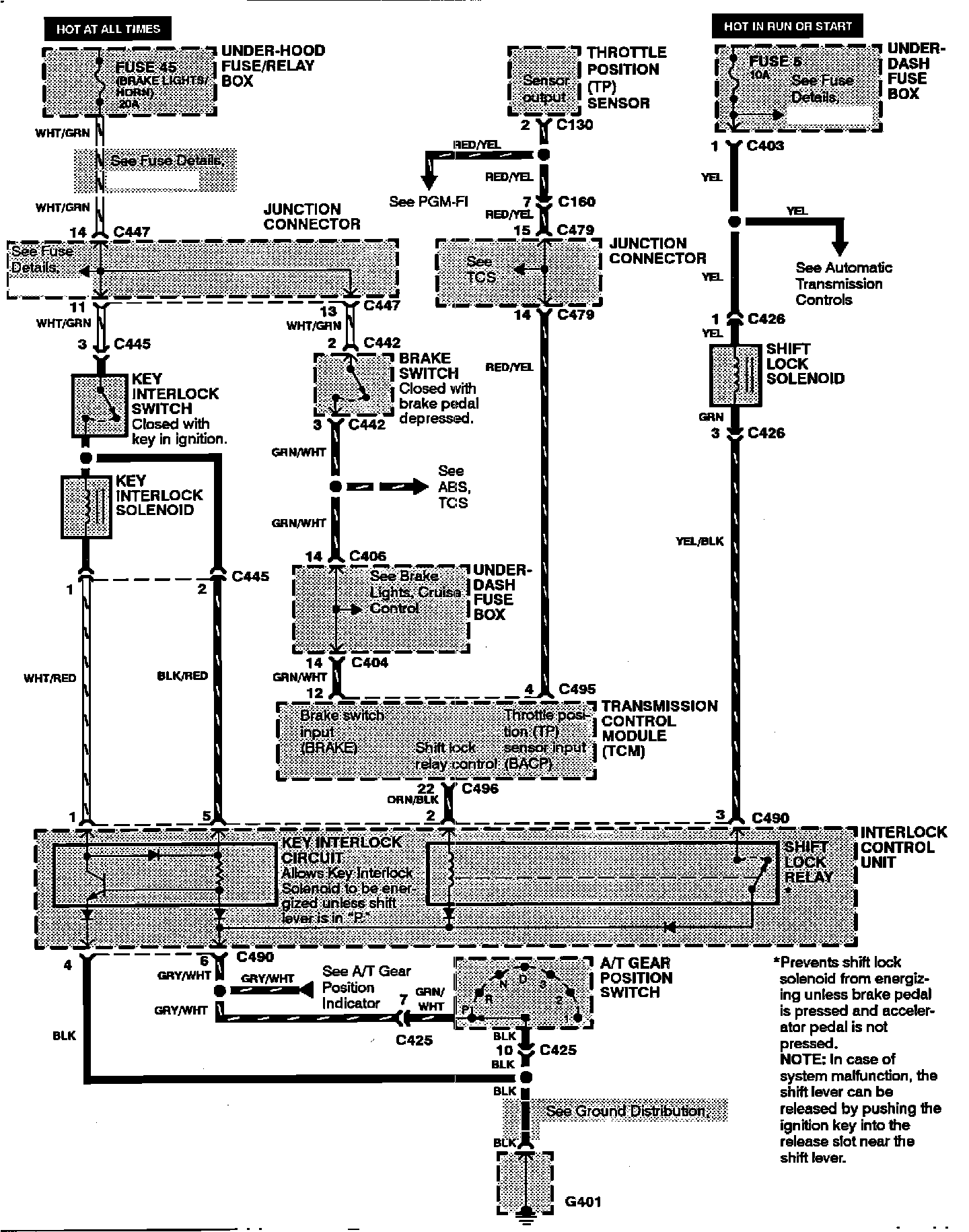

Shift Interlock Control Module

Interlock System:
