Operation CHARM
: Car repair manuals for everyone.
Home
>>
Acura
>>
1993
>>
NSX V6-3.0L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Wire Harness Routing
>>
Engine
Engine

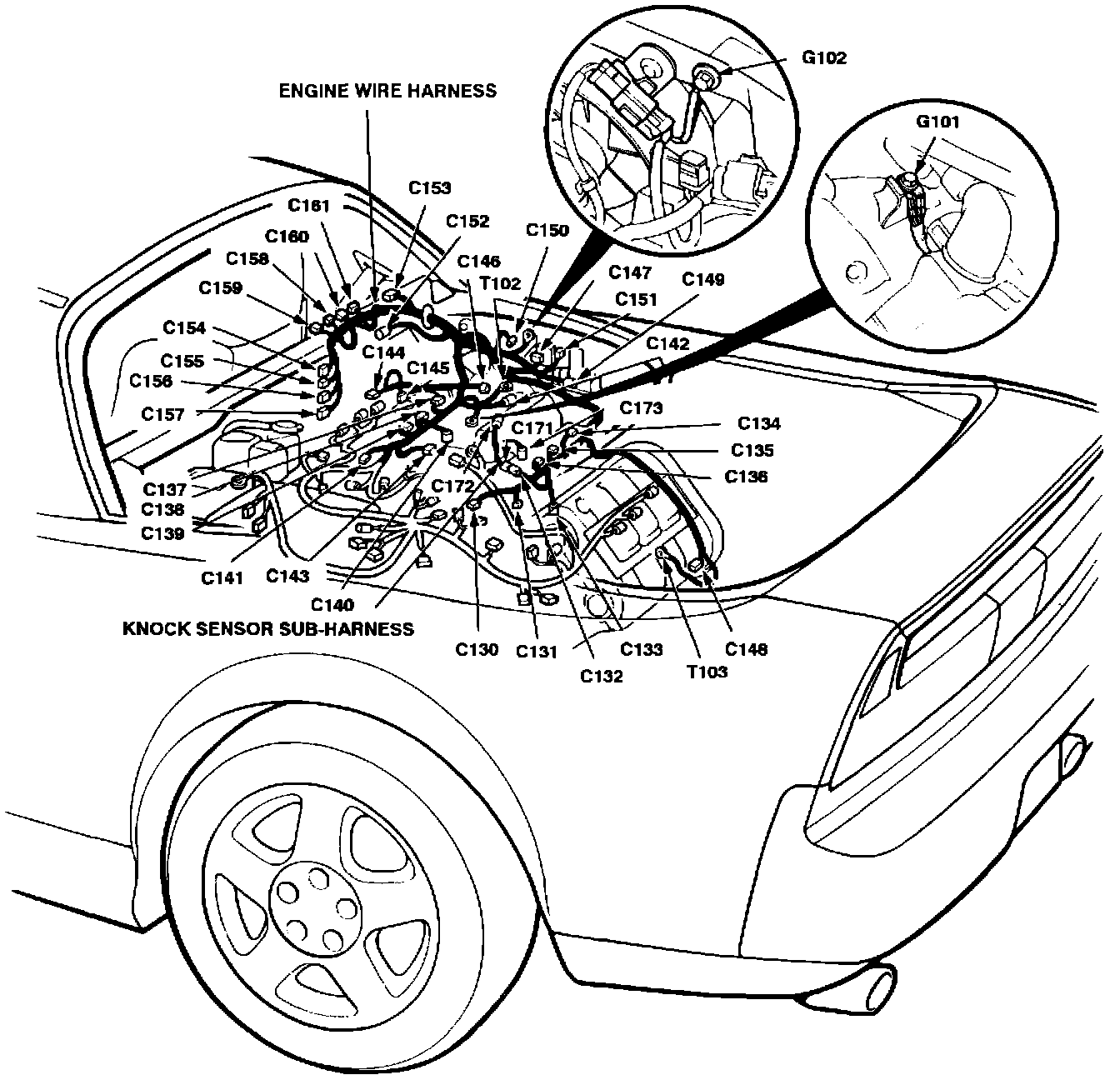

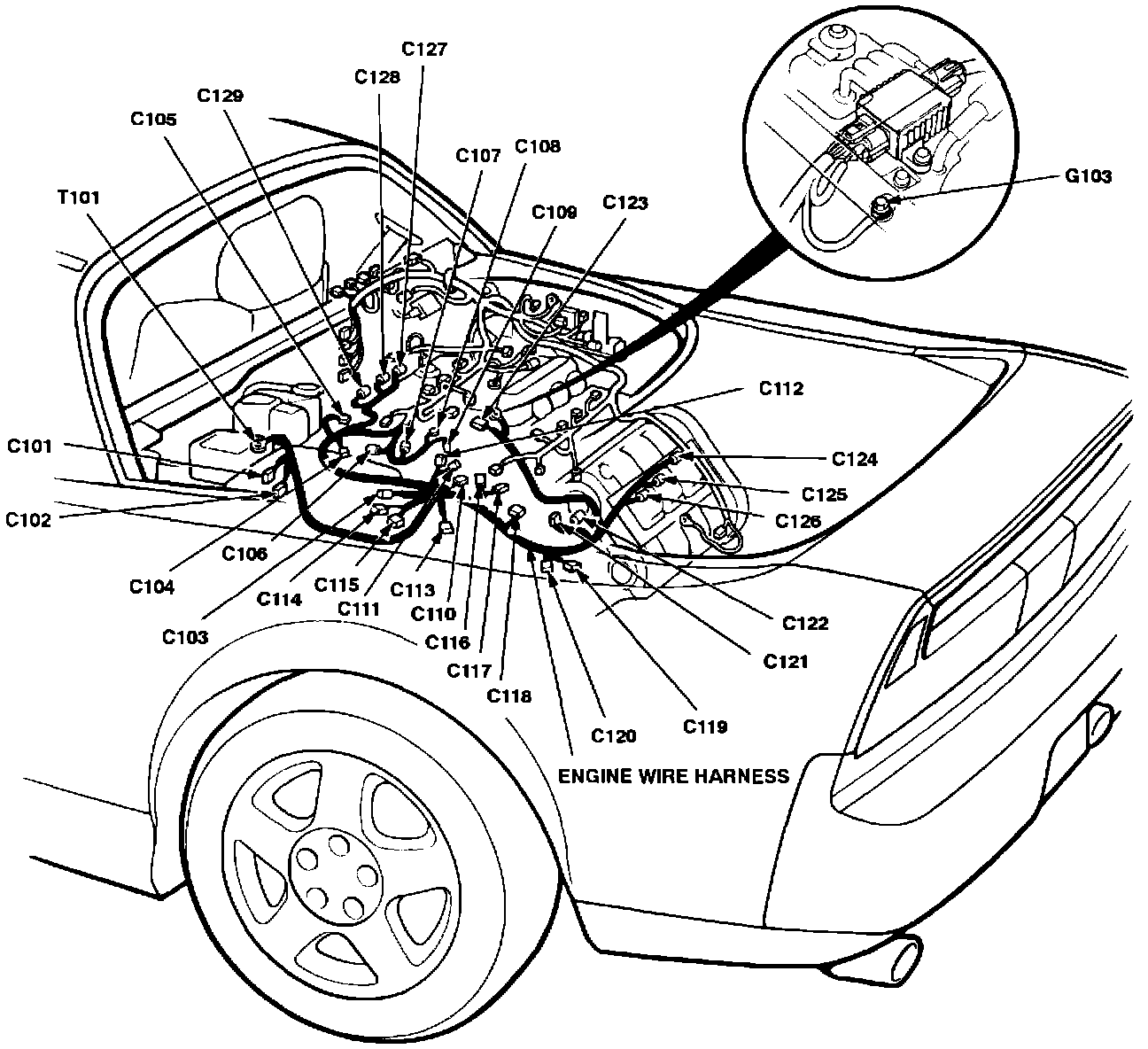

Connector Identification And Wire Harness Routing: Engine:
Connector Identification And Wire Harness Routing: Engine:
