A/T Torque Data

MR9A 4-spd A/T, L. Side Cover Assembly 1 Of 6:

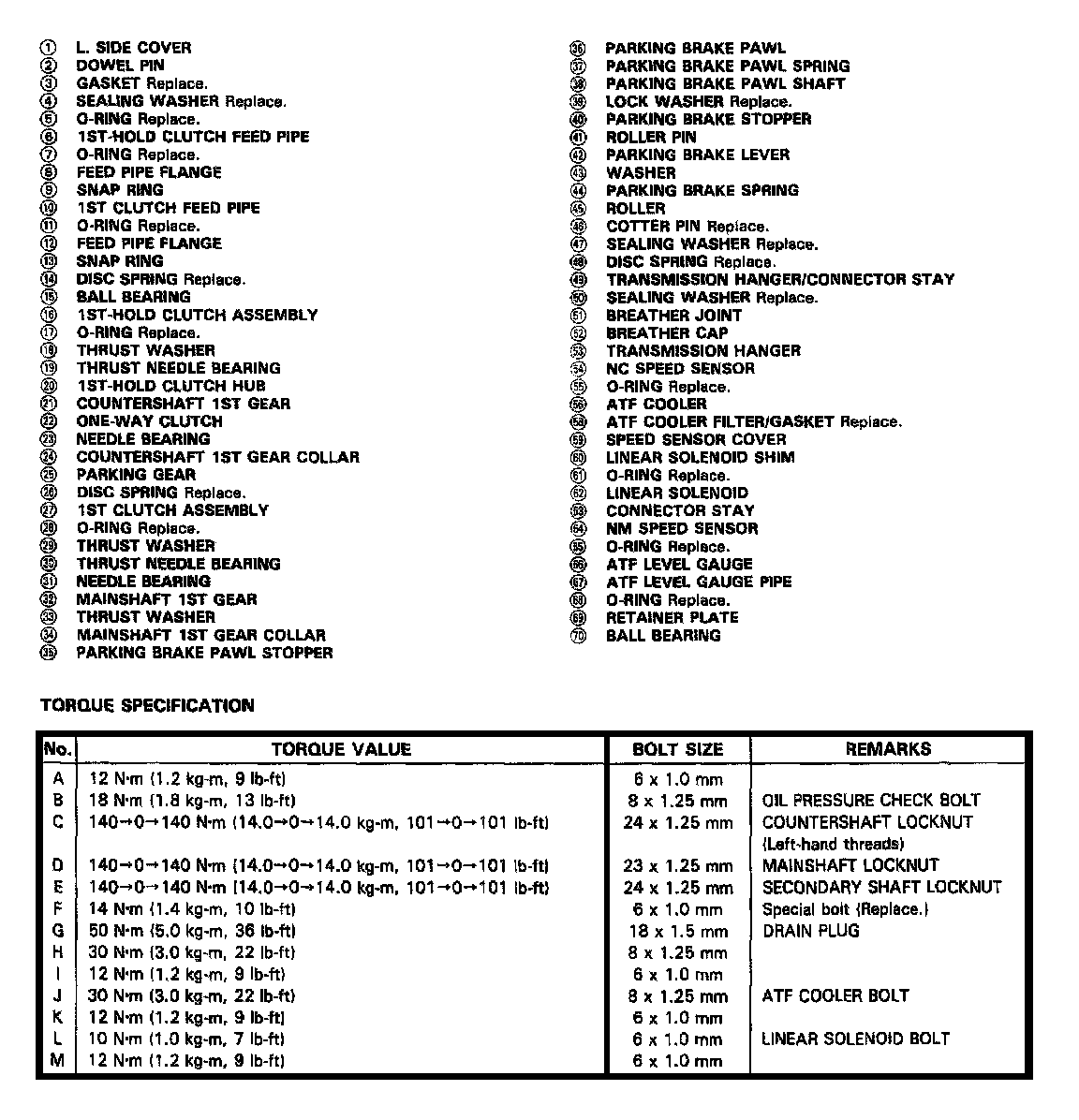

MR9A 4-spd A/T, L. Side Cover Legend 2 Of 6:

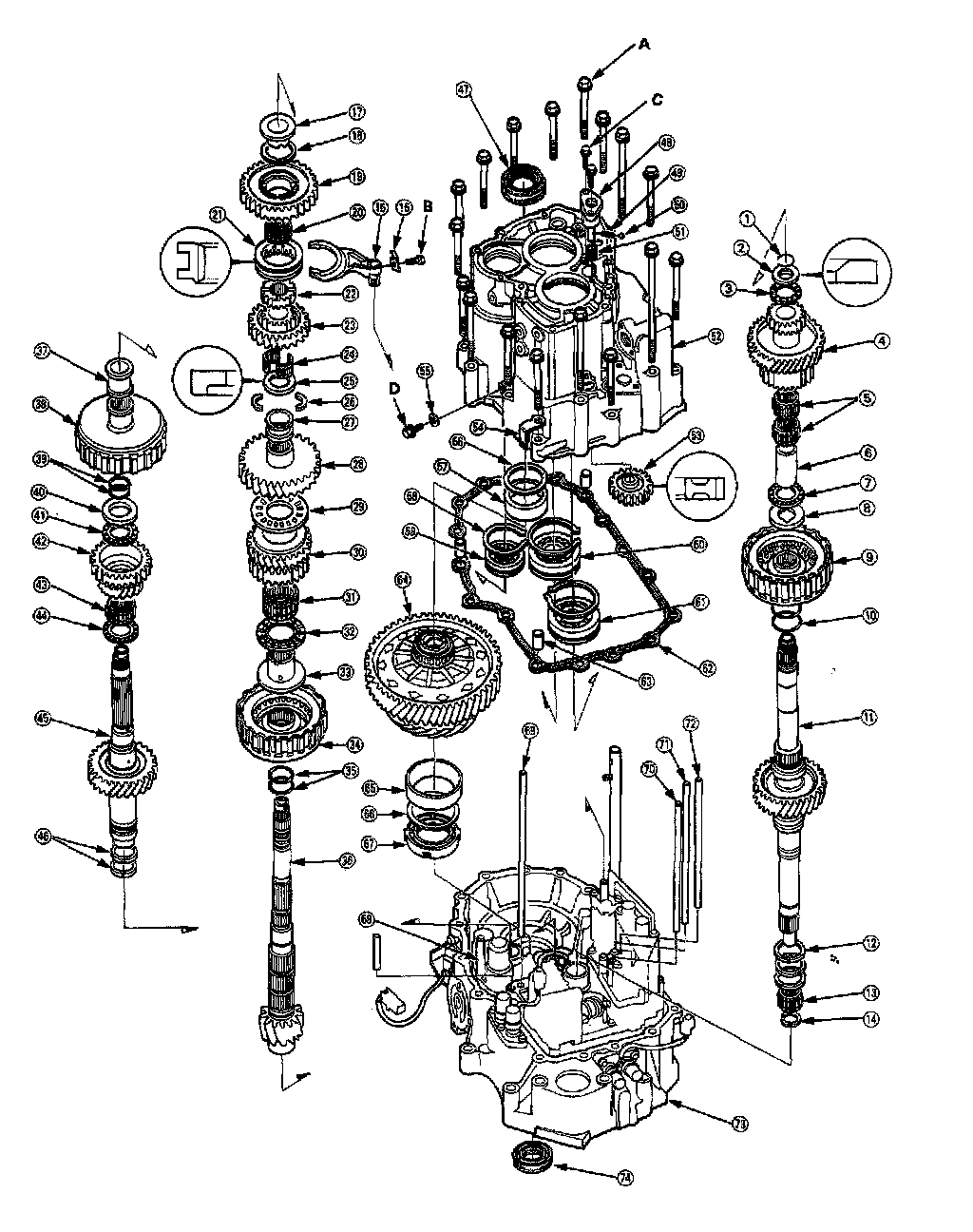

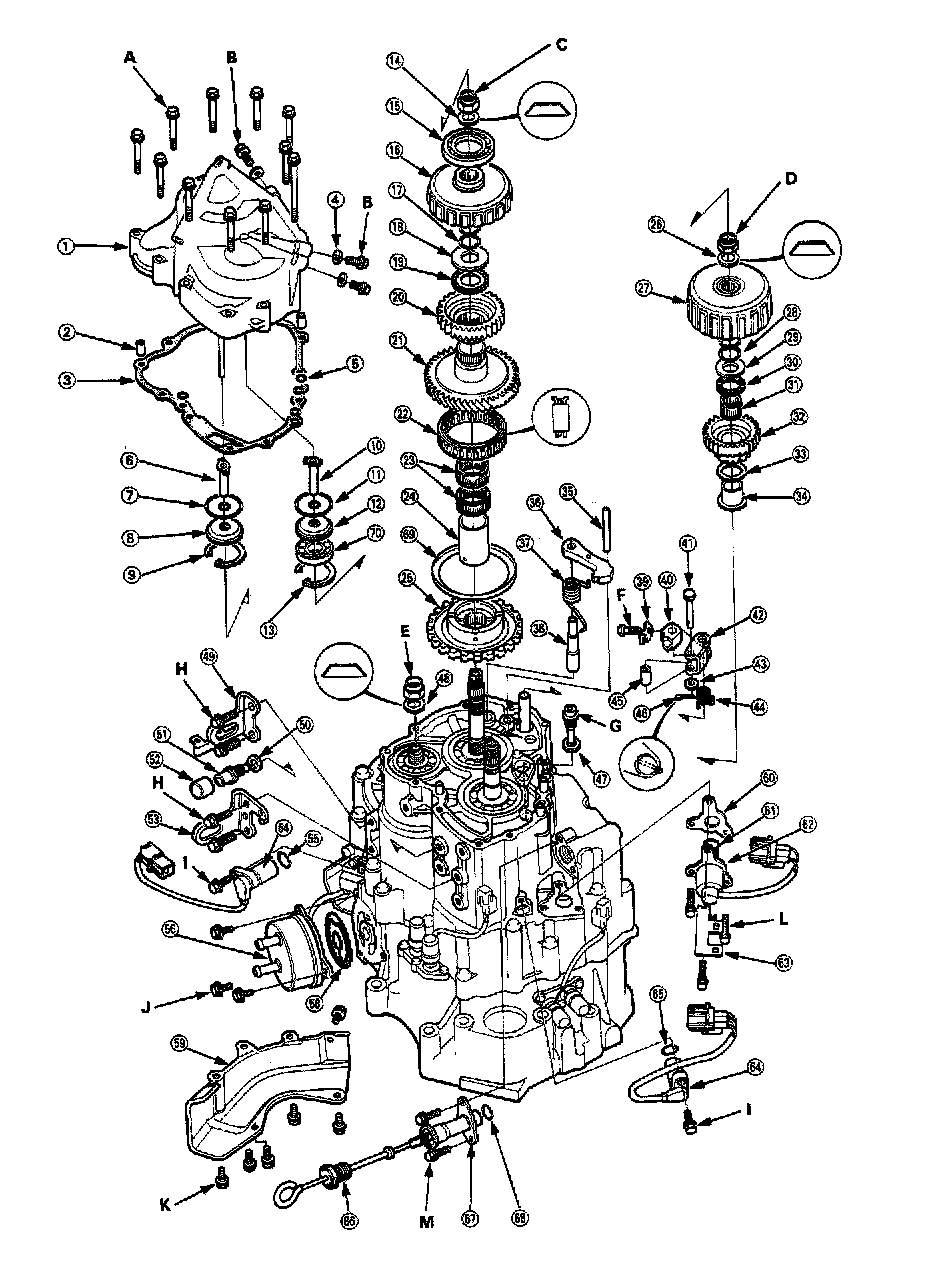

MR9A 4-spd A/T, Transmission Housing 3 Of 6:

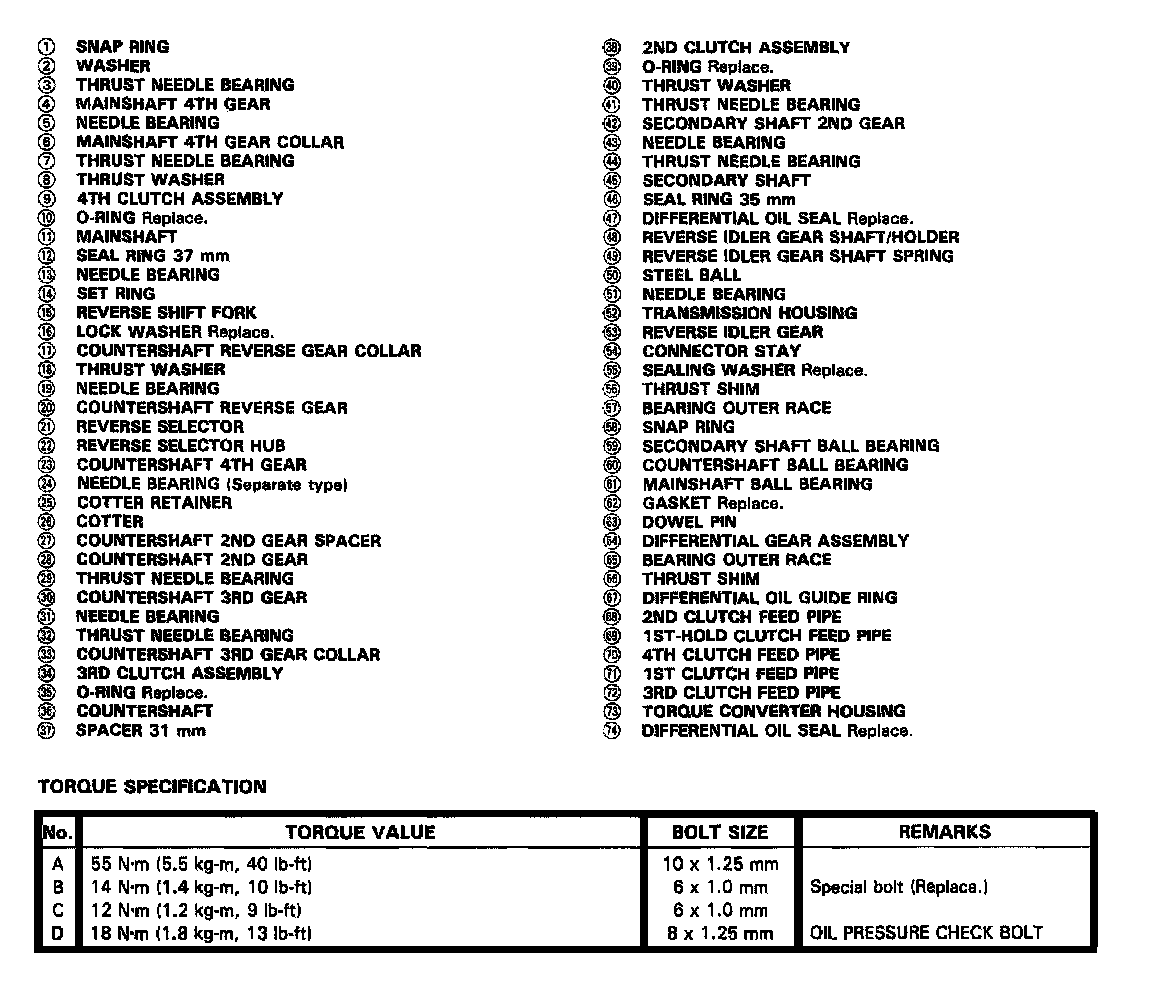

MR9A 4-spd A/T, Transmission Housing Legend 4 Of 6:

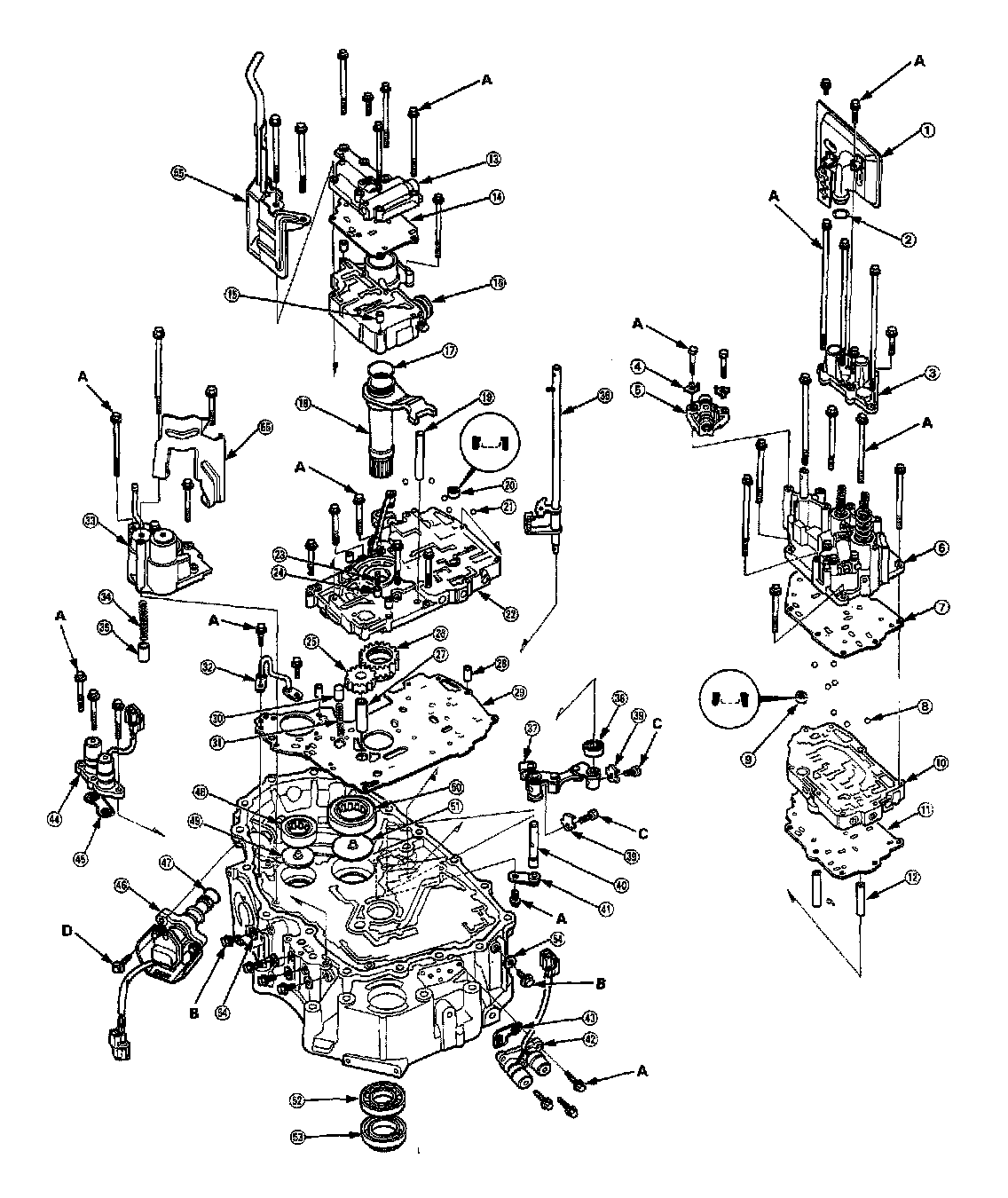

MR9A 4-spd A/T, Torque Converter Housing/Valve Body 5 Of 6:

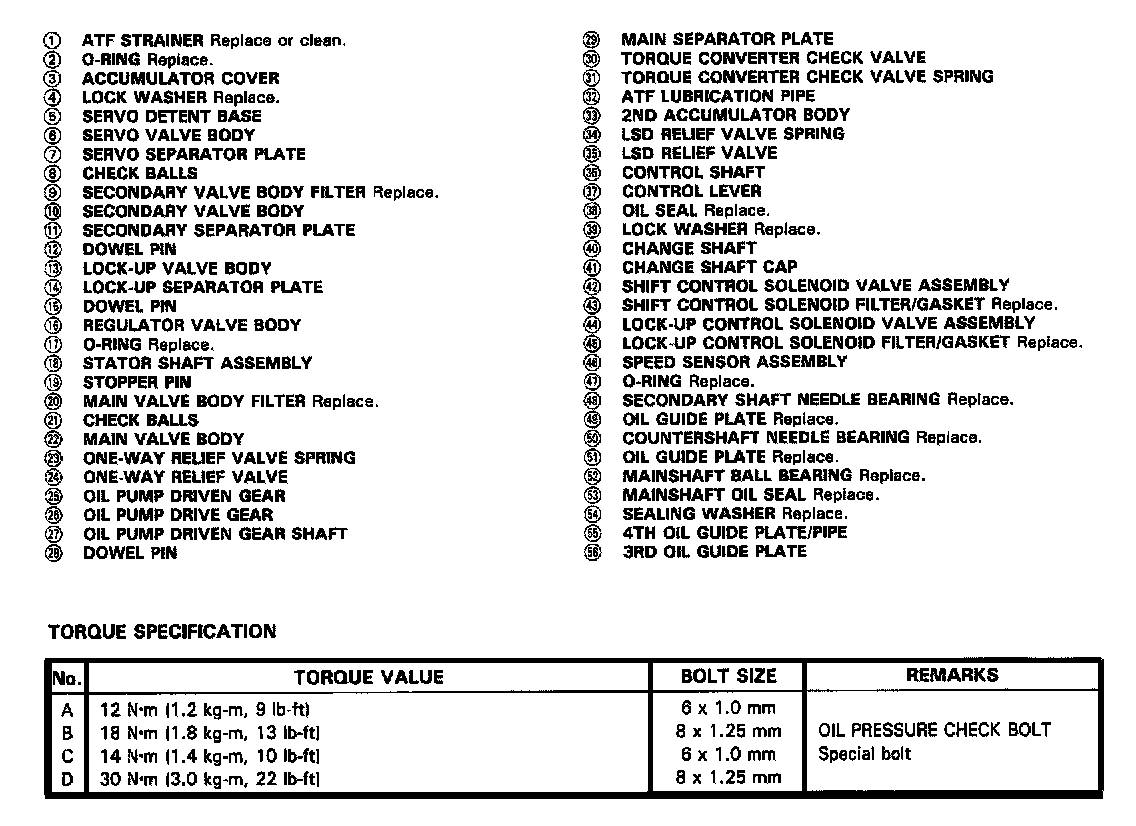

MR9A 4-spd A/T, Torque Converter Housing /Valve Body Legend 6 Of 6:

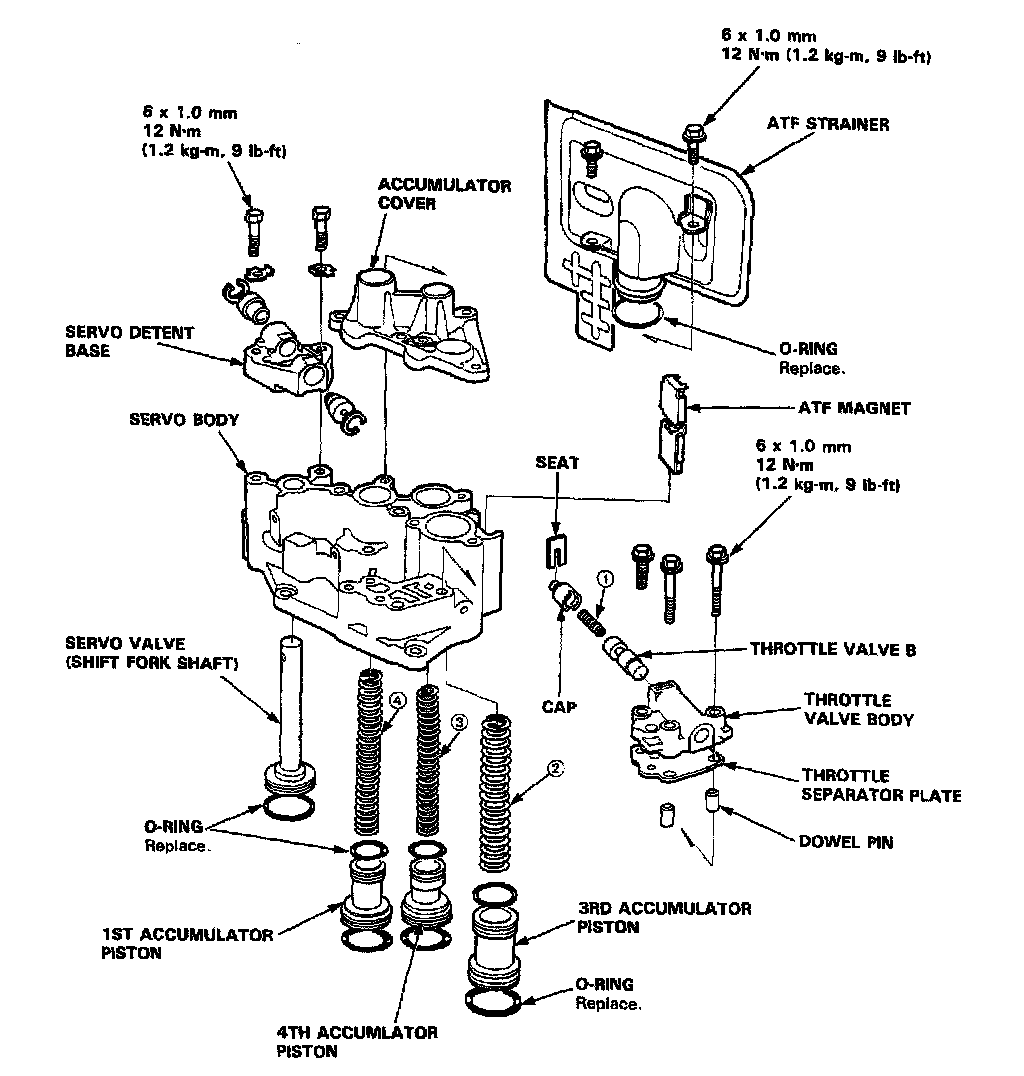

MR9A 4-spd A/T, Servo Body/Throttle Valve Body:

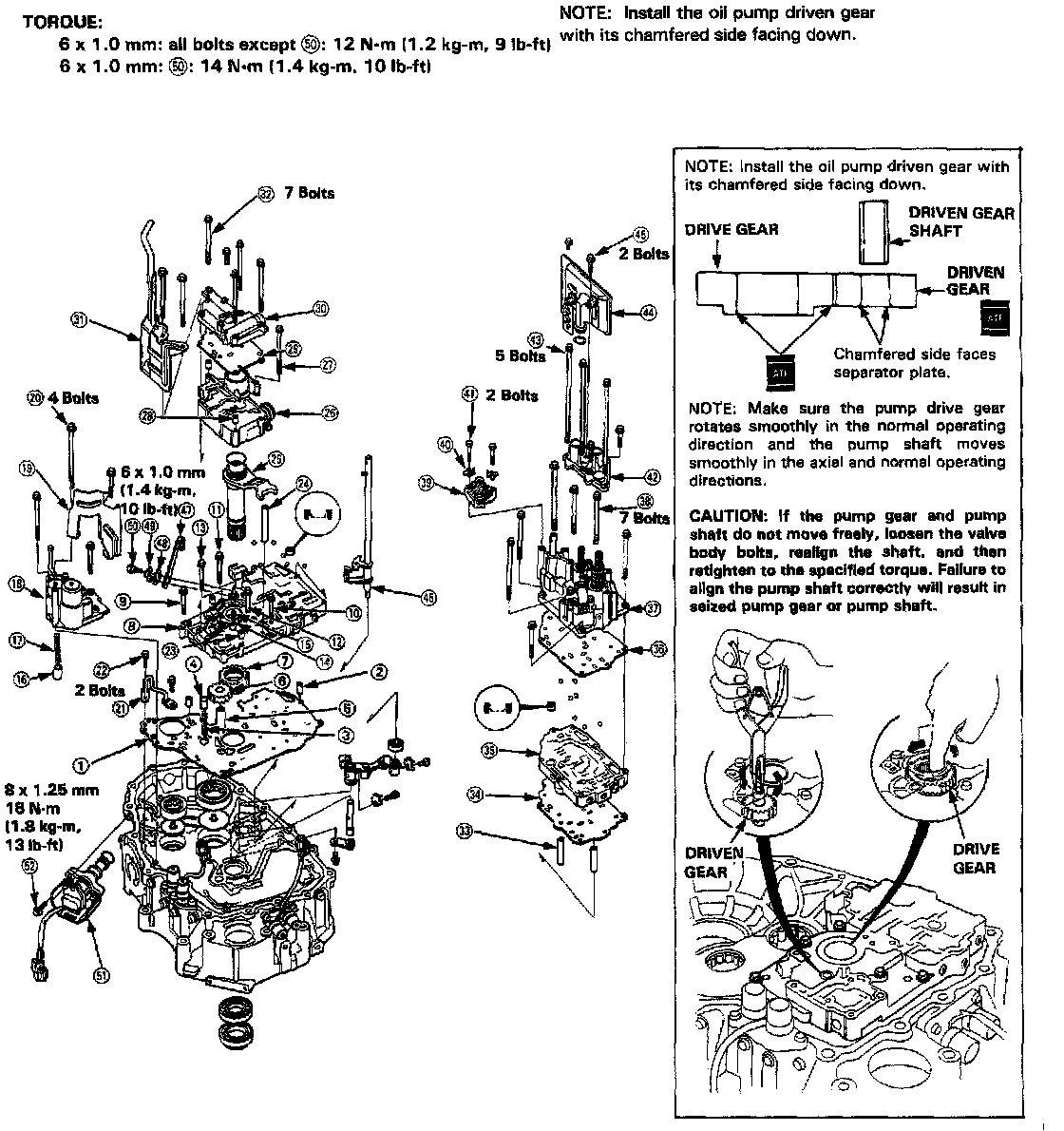

MR9A 4-spd A/T, Accumulator Cover & Oil Pump Drive Gear:

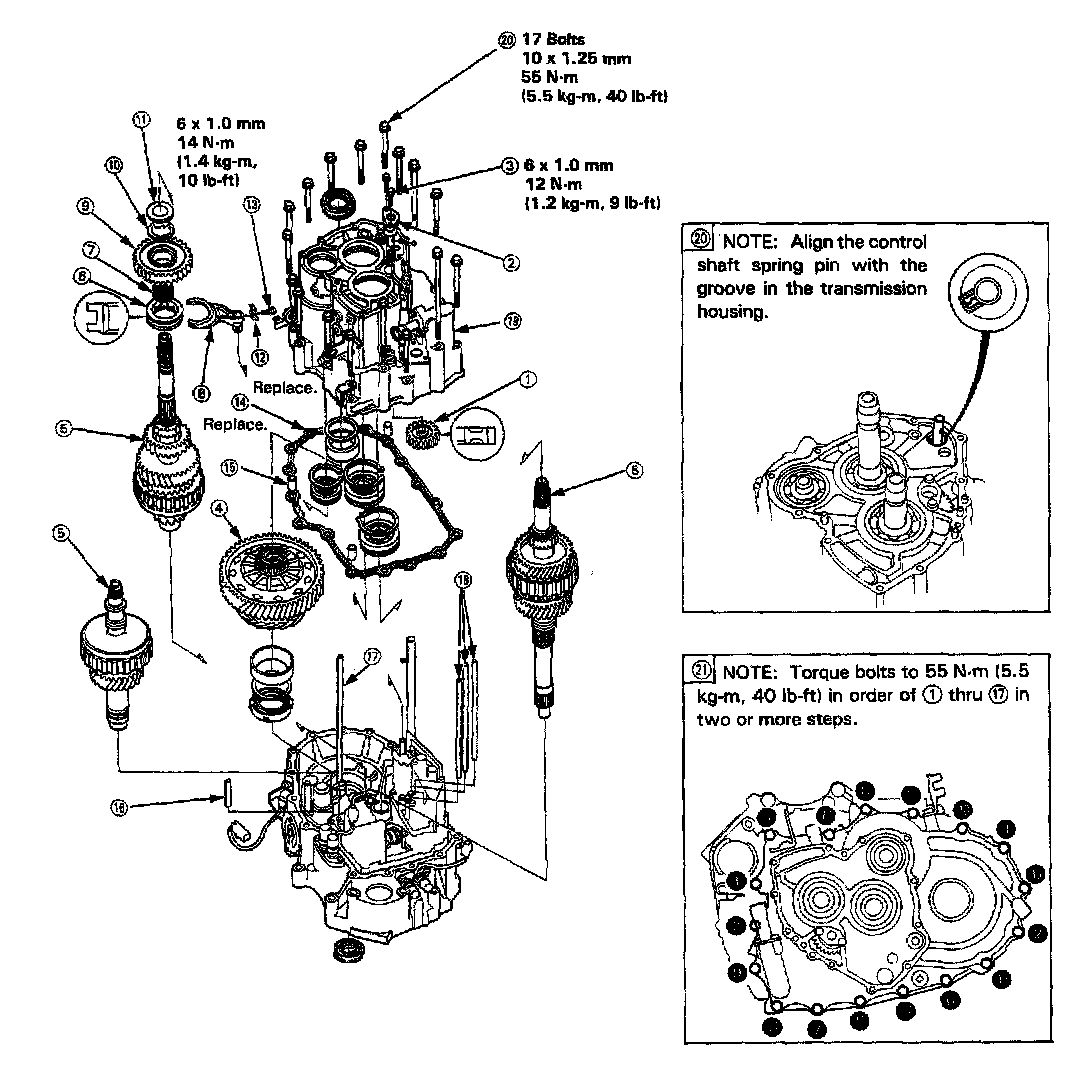

MR9A 4-spd A/T, Transmission Housing Torque & Sequence:

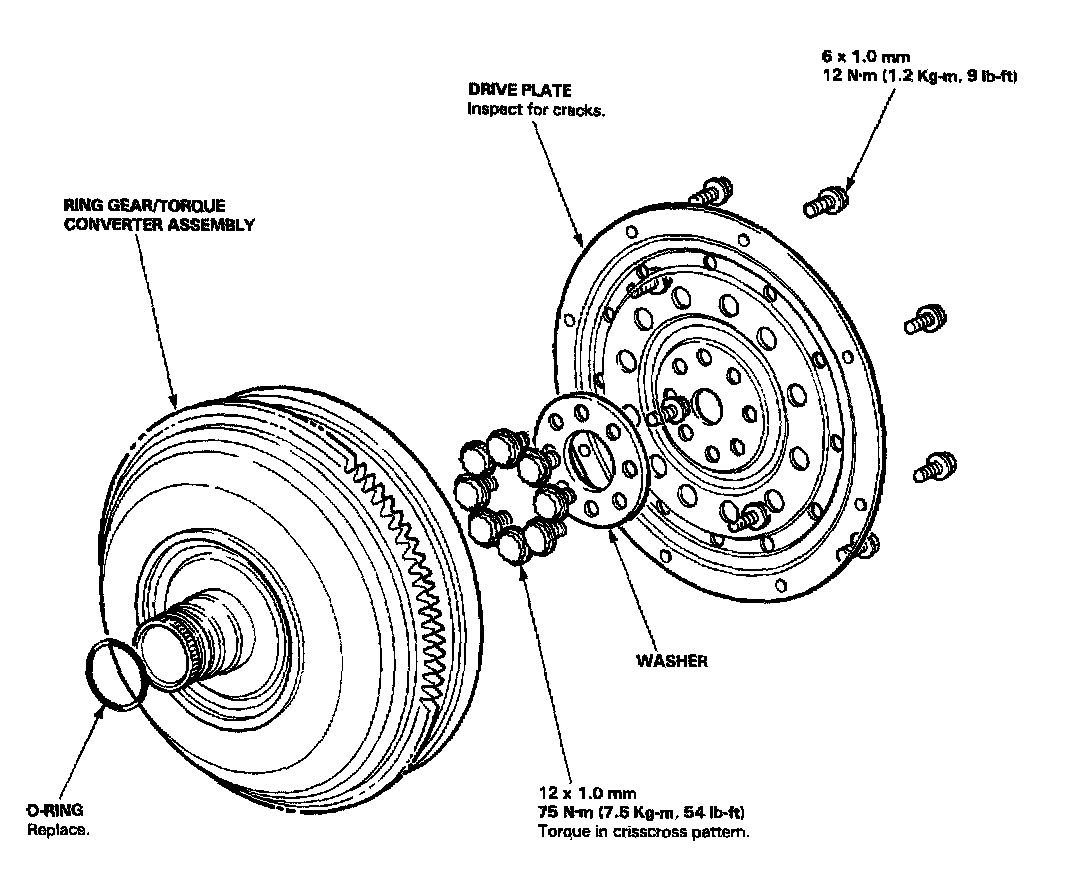

MR9A 4-spd A/T, Torque Converter Assembly:

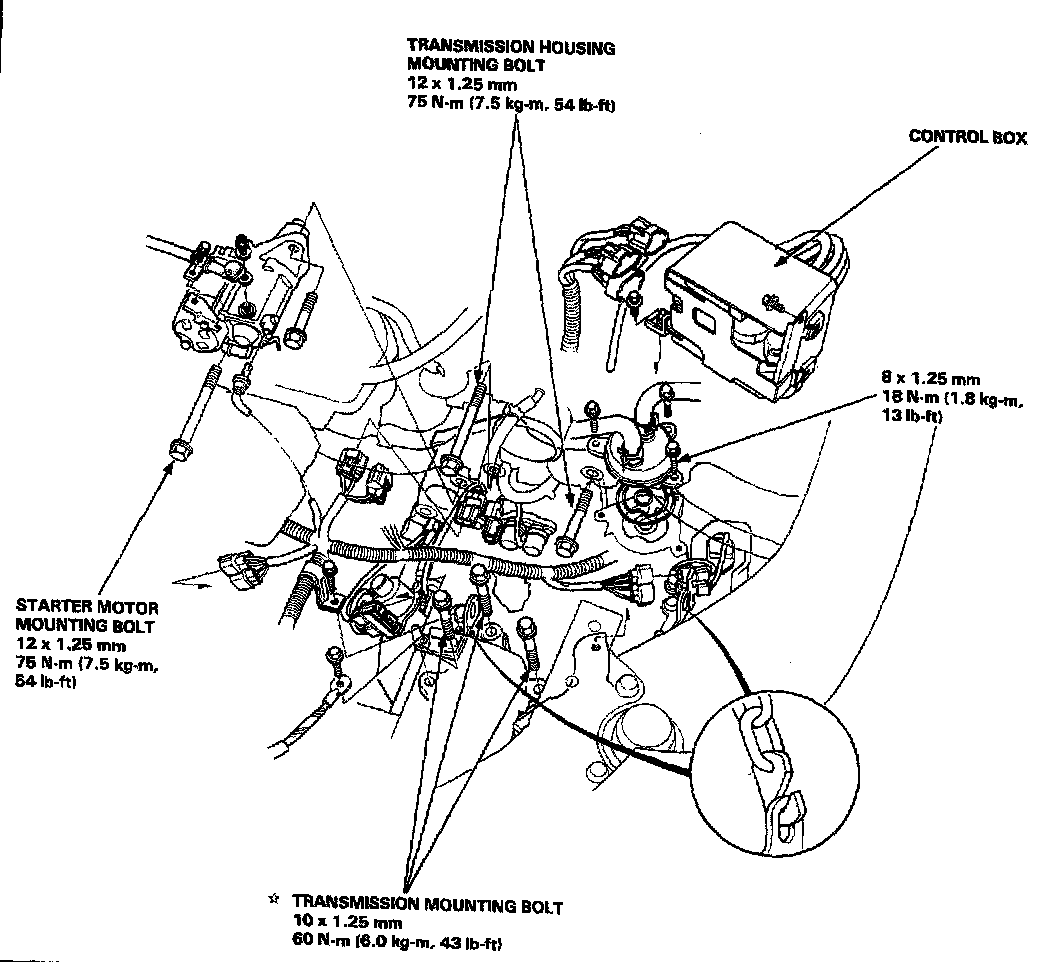

MR9A 4-spd A/T, Transmission Mountings:

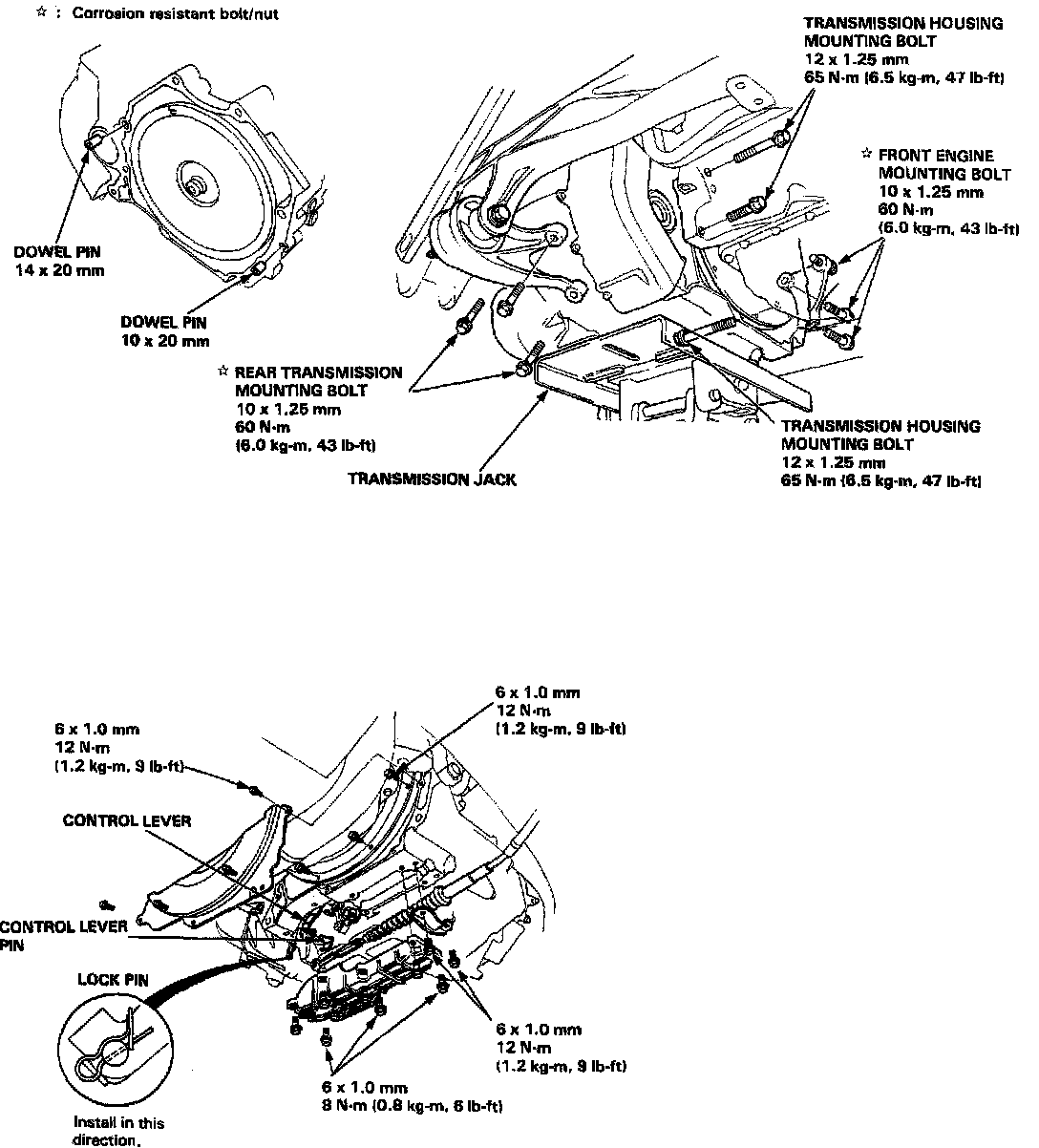

MR9A 4-spd A/T, Transmission Mounts:

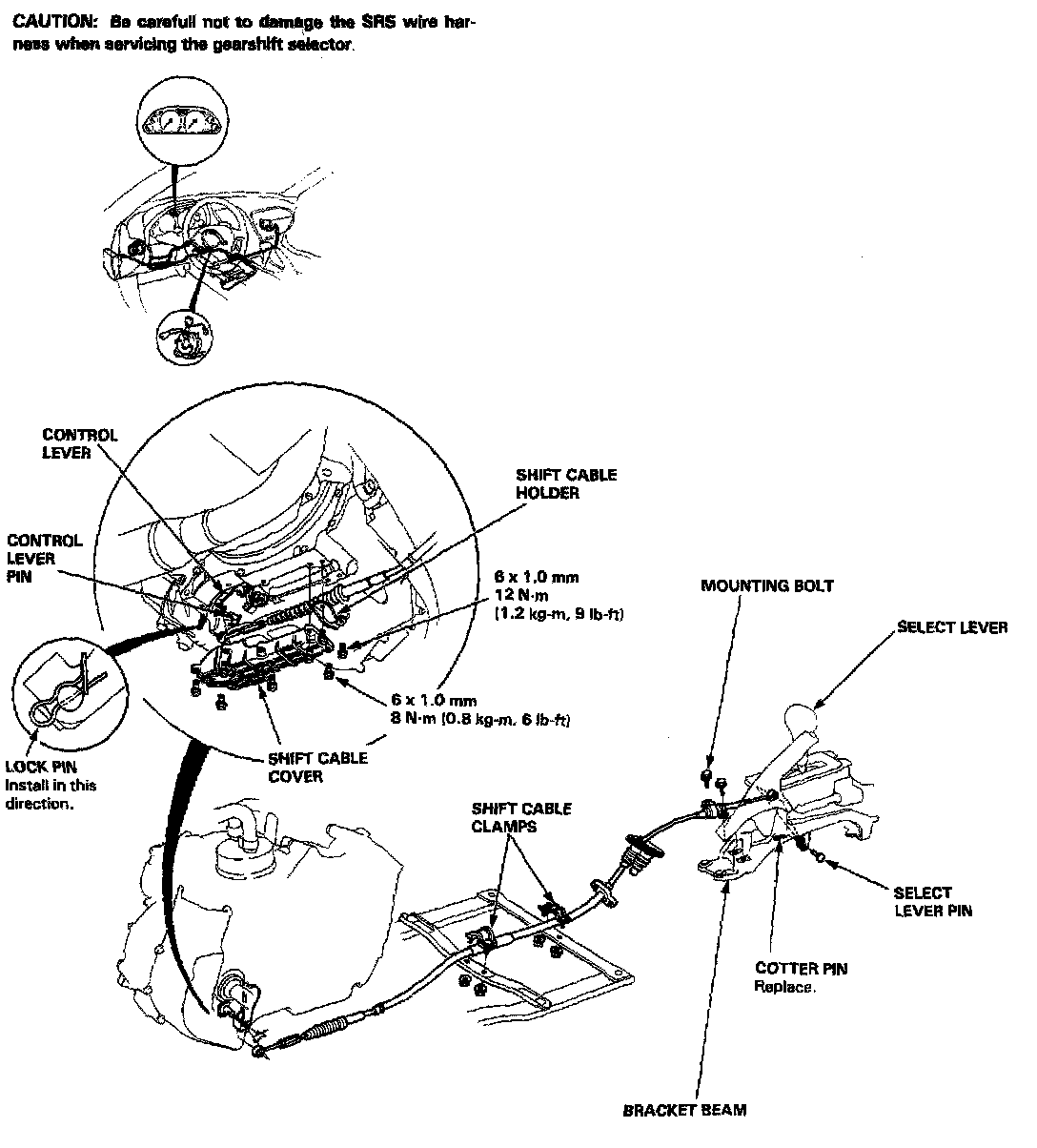

MR9A 4-spd A/T, Shift Cable Installation:

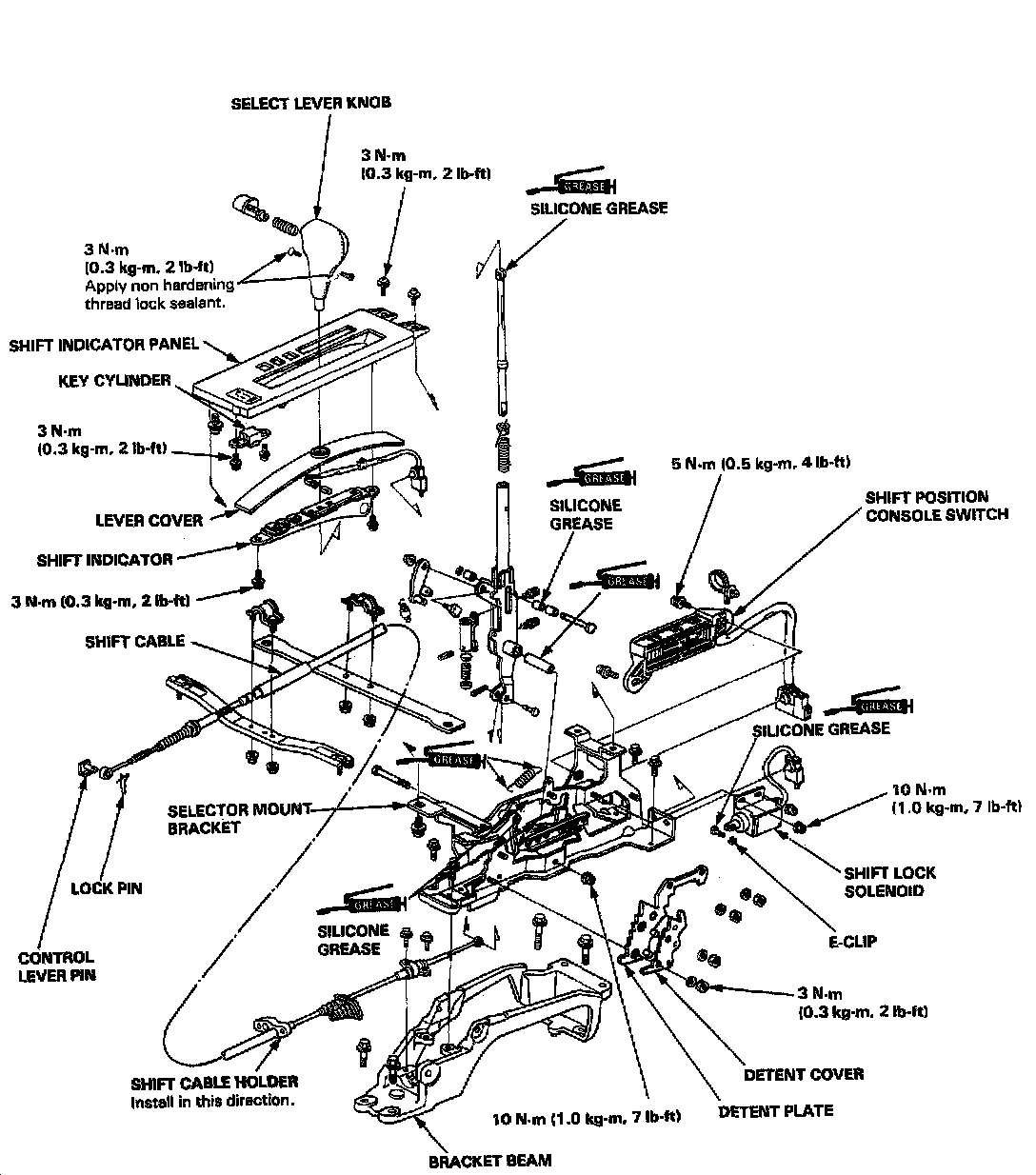

MR9A 4-spd A/T, Gearshift Selector Assembly:
