Cruise Control Module: Testing and Inspection

1. On models equipped with radio coded theft protection system, refer to Vehicle Damage Warnings for system disarming and arming procedures.
2. Remove dashboard lower panel, then disconnect control unit connector.

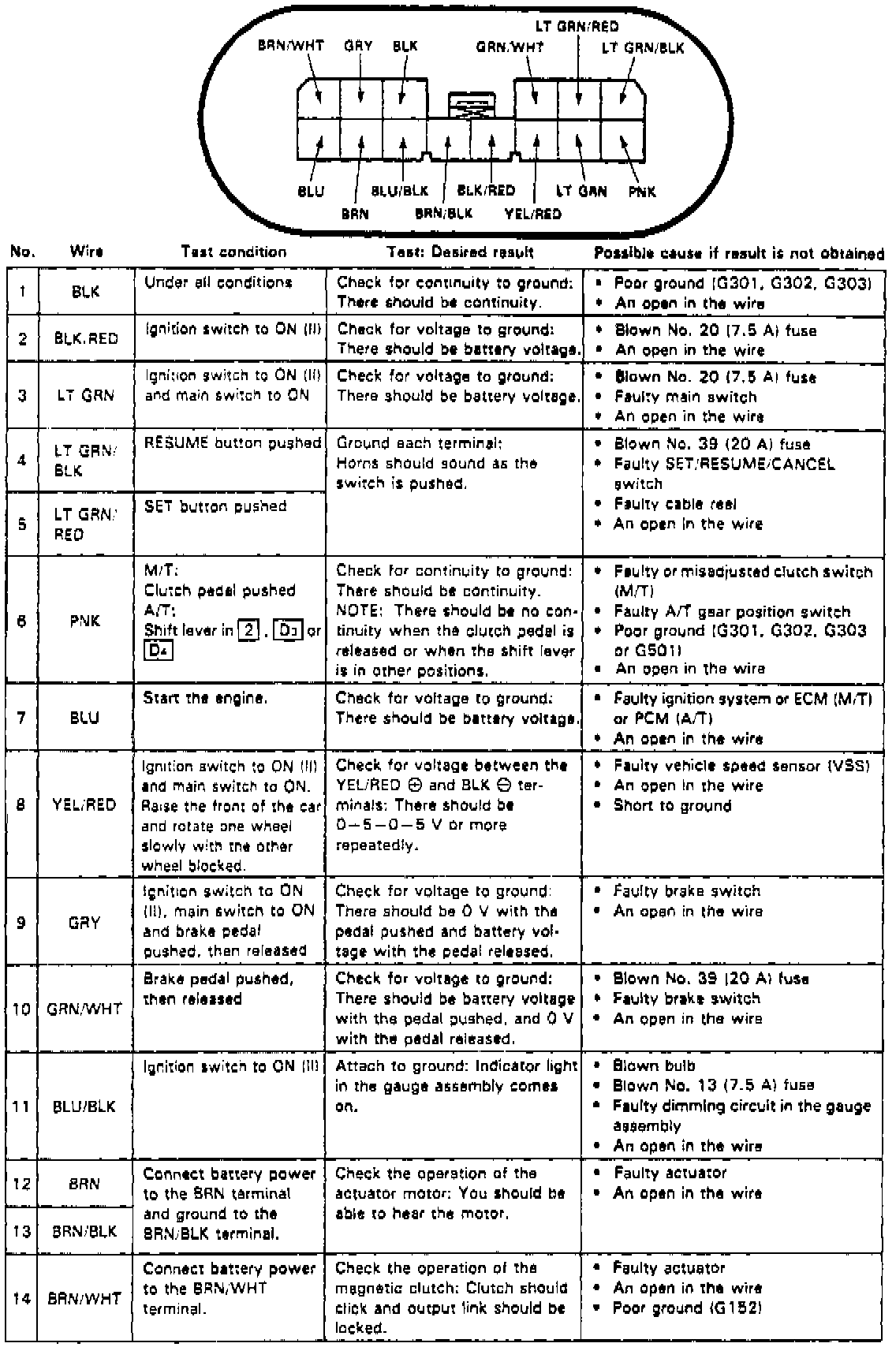

Fig. 10 Control Unit Input Test:

3. Referring to Fig. 10, perform all tests as shown. Recheck connections between connector and control unit, then reinstall if all tests are satisfactory.
4. On models equipped with radio coded theft protection system, refer to Vehicle Damage Warnings for system disarming and arming procedures.
