Fuses
>>

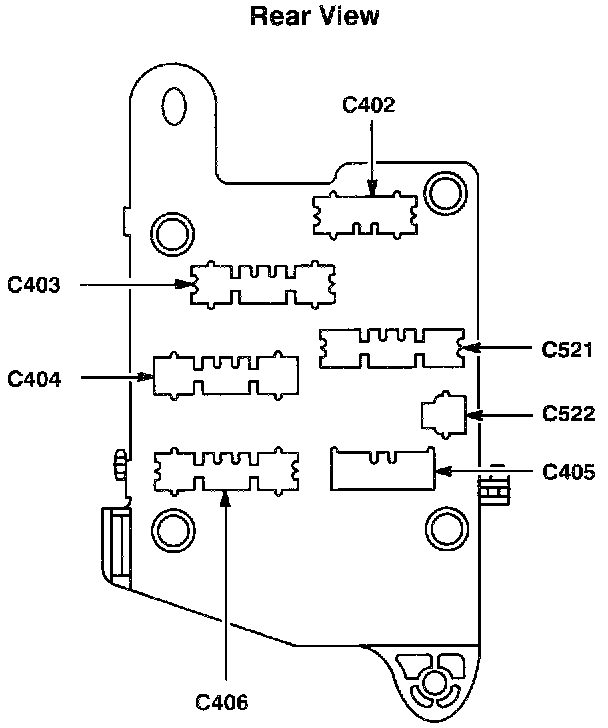

Under-Dash Fuse Box
>>
Under-Dash Fuse Box
Under-Dash Fuse Box

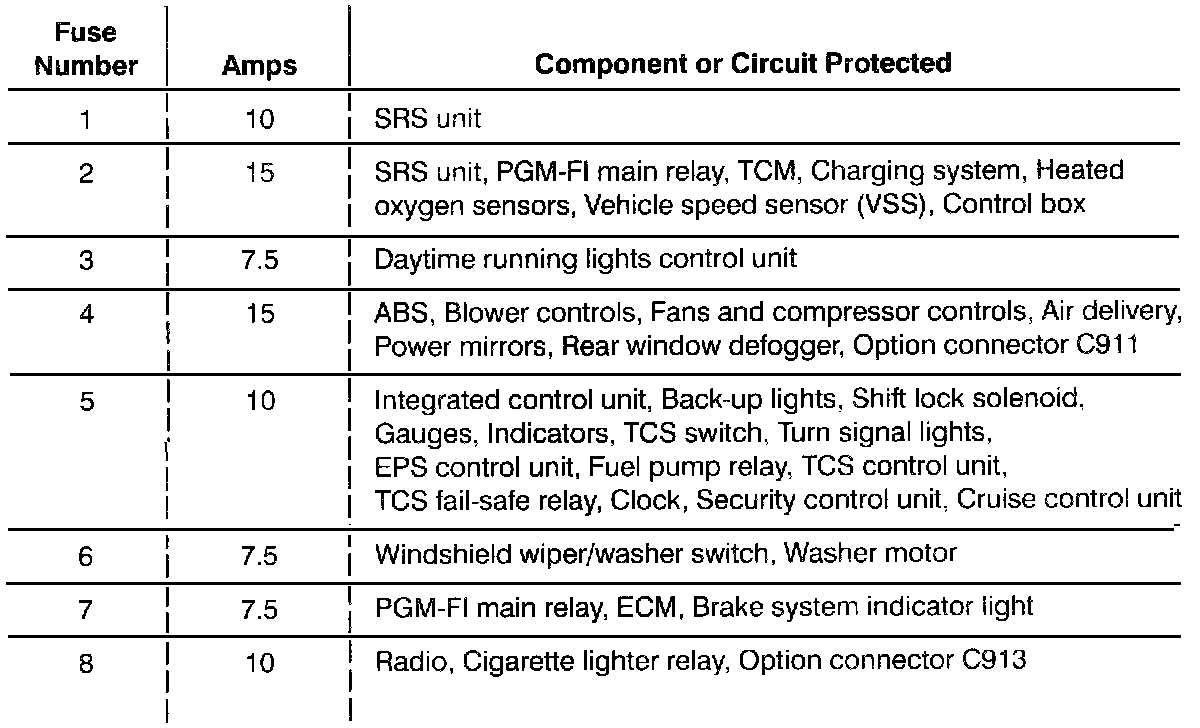

Fuse/Relay Information - Under-dash Fuse Box:
Fuse/Relay Information - Under-dash Fuse Box:
Fuse/Relay Information - Under-dash Fuse Box:
