Connector/Circuit ID

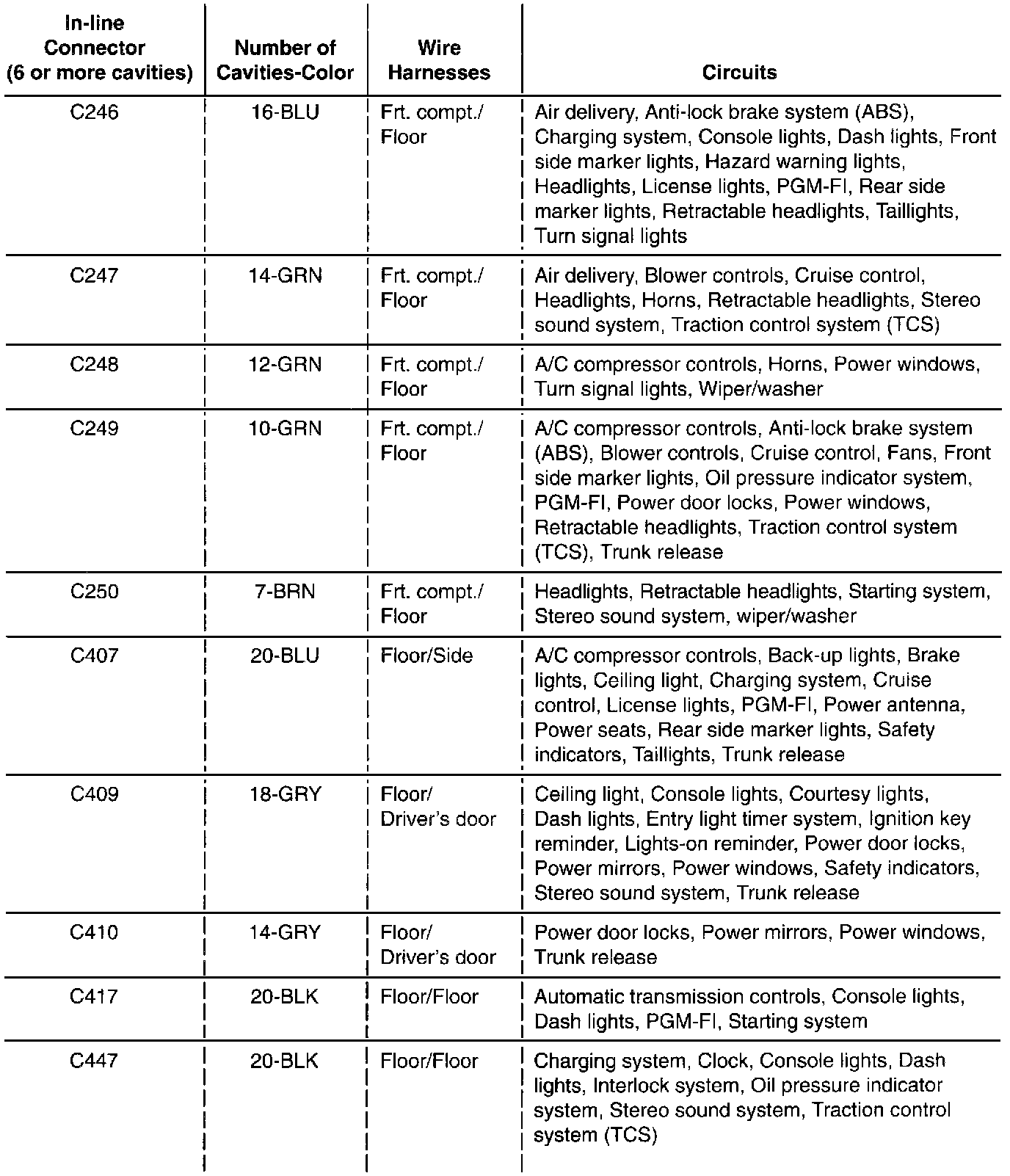

In-Line-Connector Circuit Identification (Part 1 Of 3):

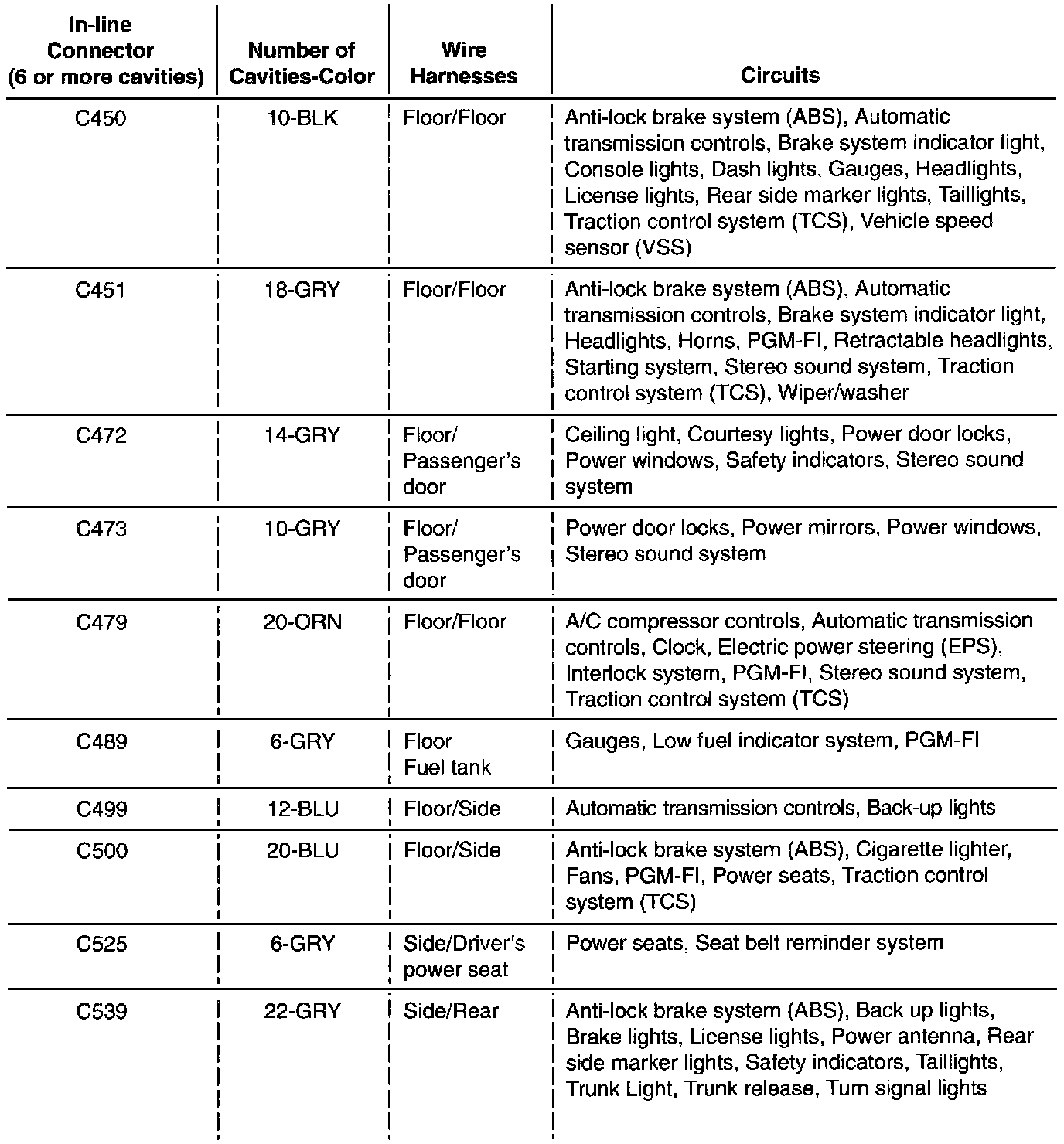

In-Line-Connector Circuit Identification (Part 2 Of 3):

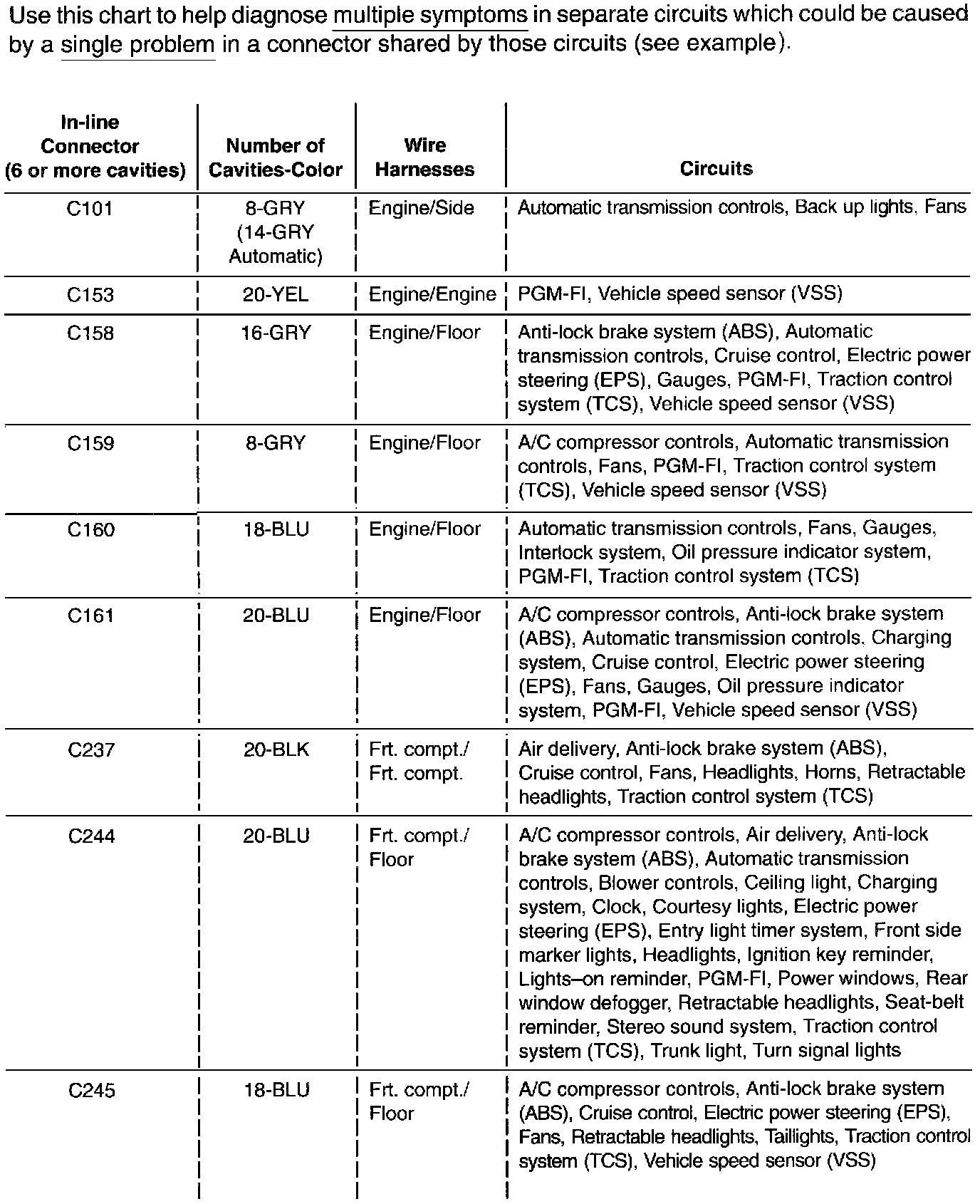

In-Line-Connector Circuit Identification (Part 3 Of 3):
