Manifold Pressure/Vacuum Sensor: Testing and Inspection

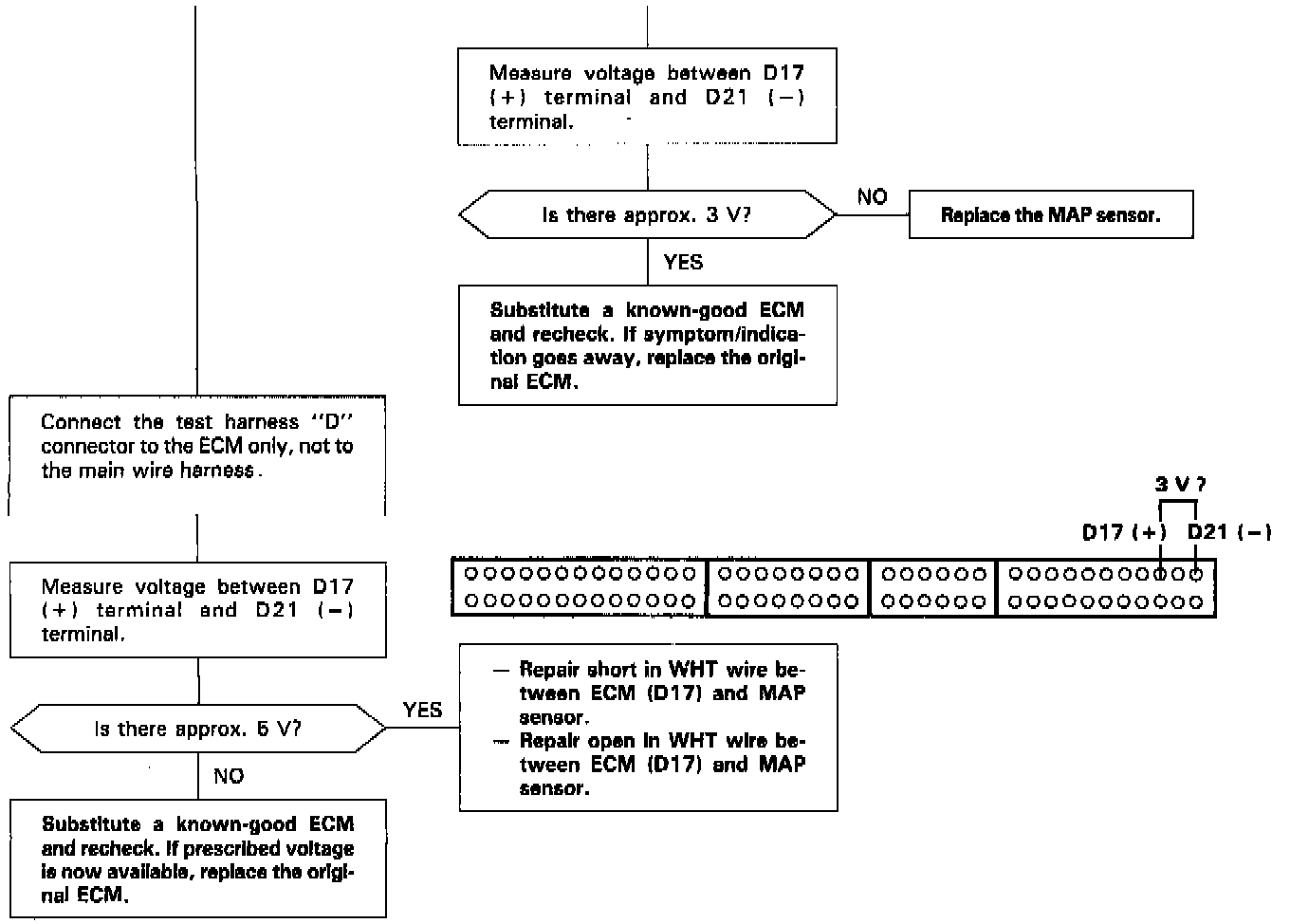

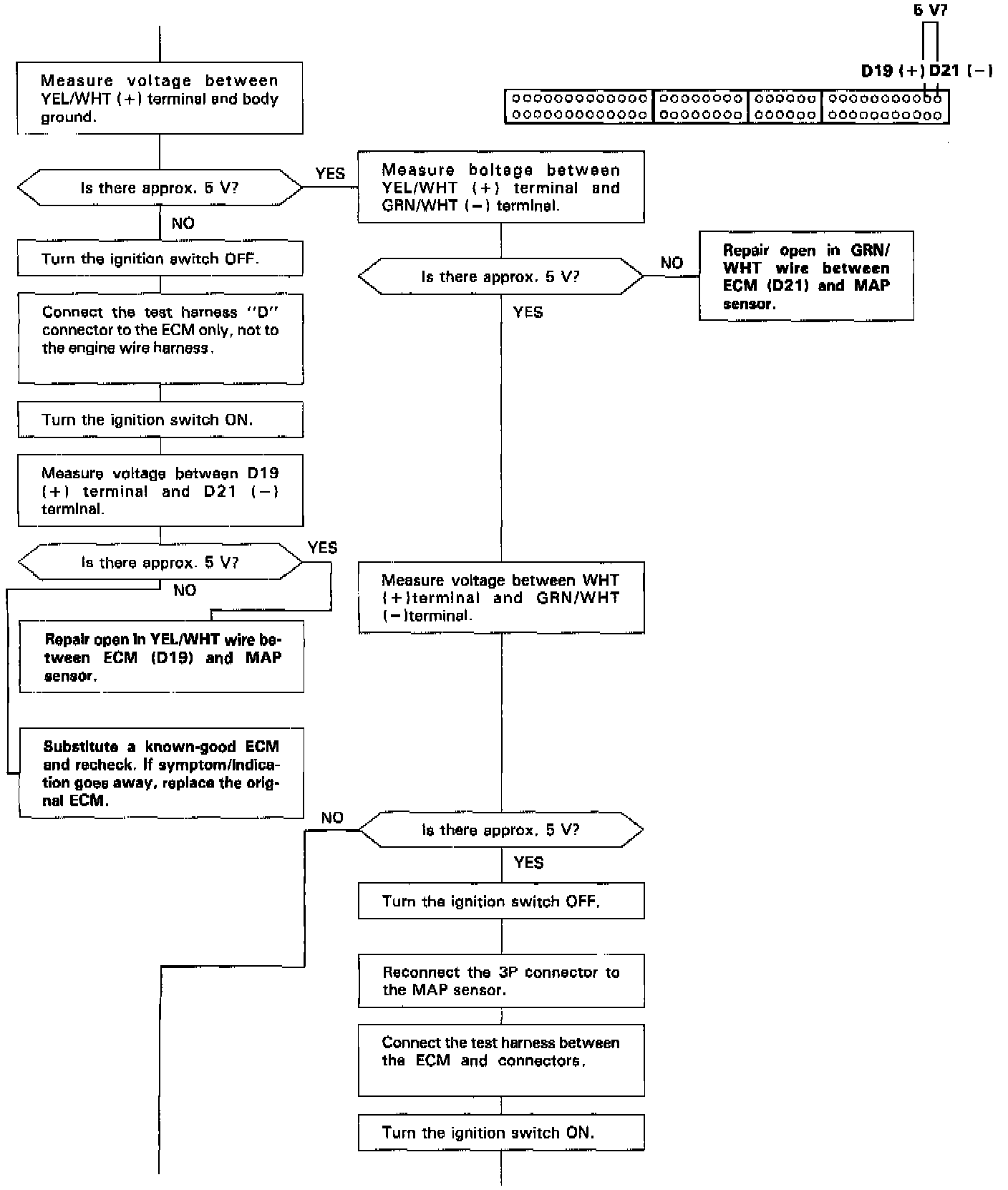

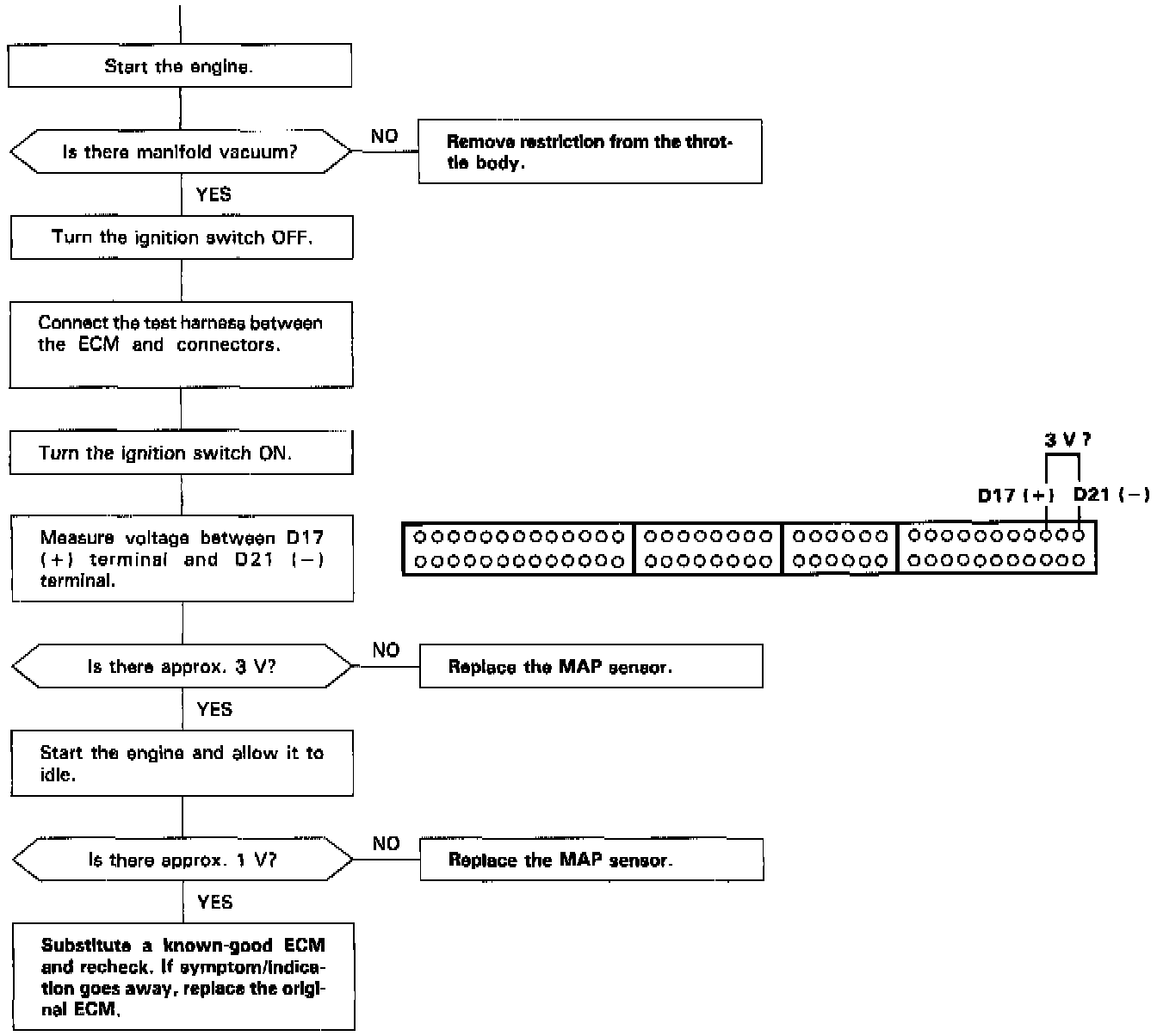

Follow the steps as shown in the applicable Troubleshooting Flowchart.

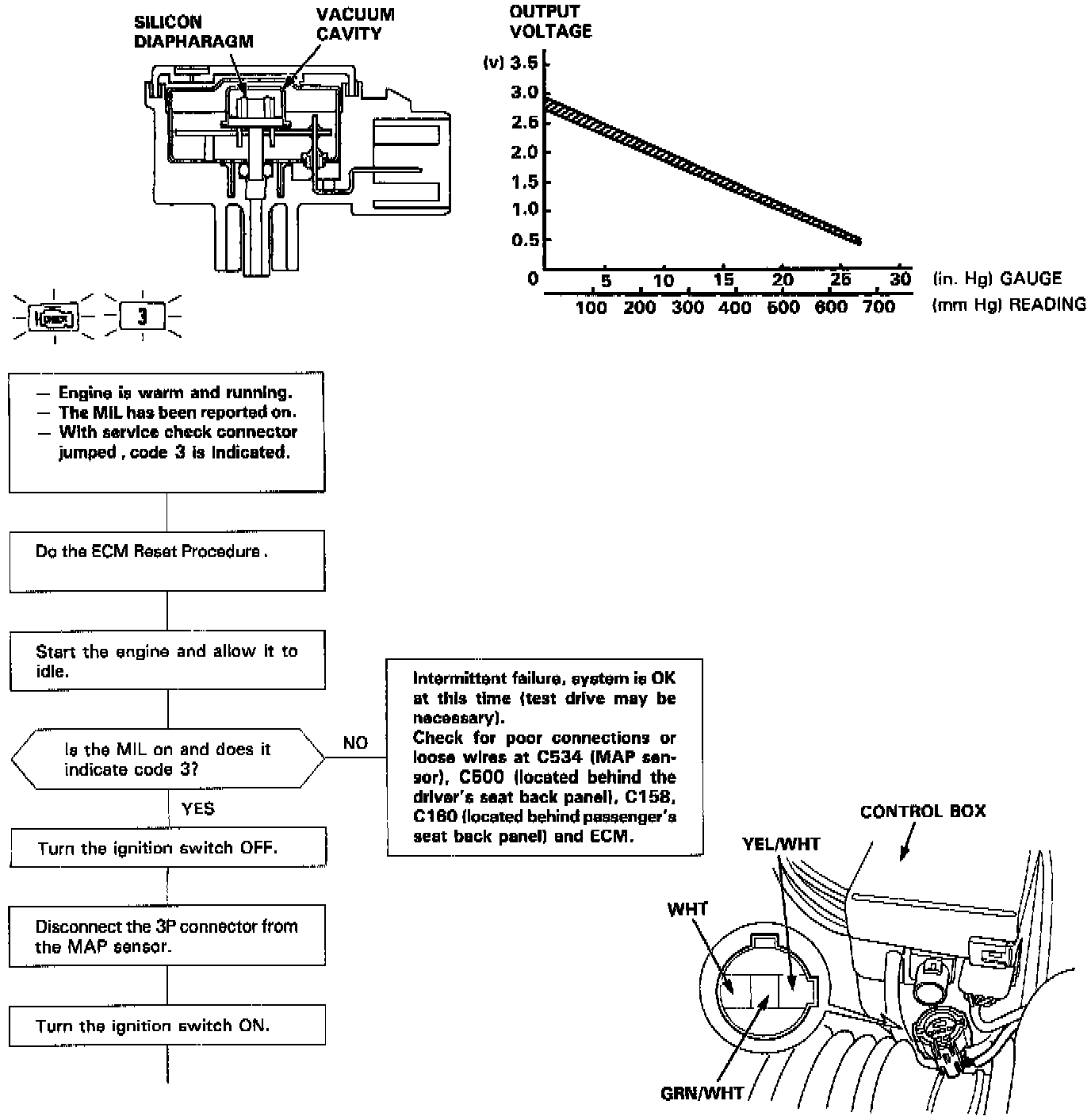

Test 1.








Test 2.
