System Specifications

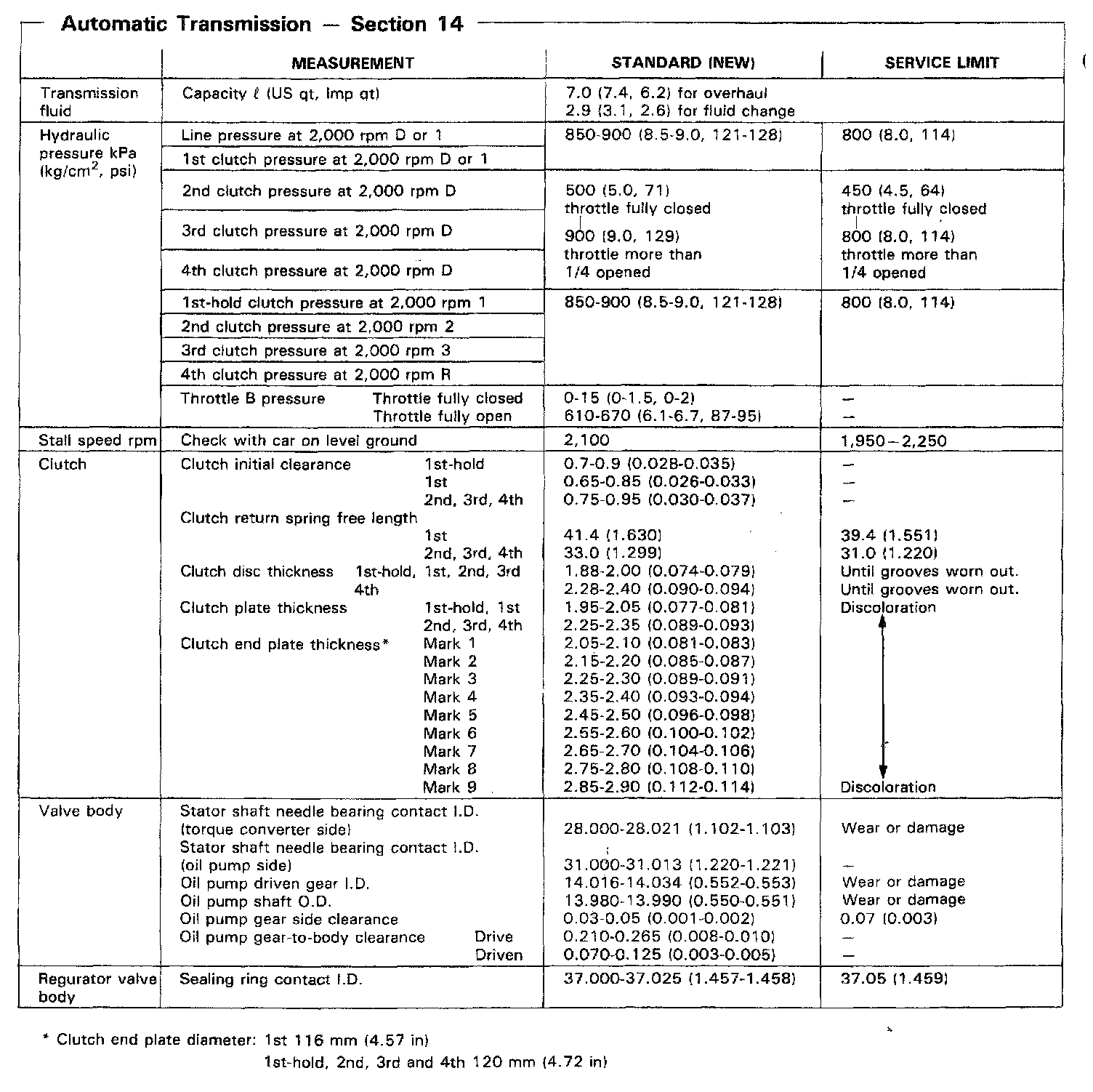

MR9A 4-spd A/T, Transmission Measurements:

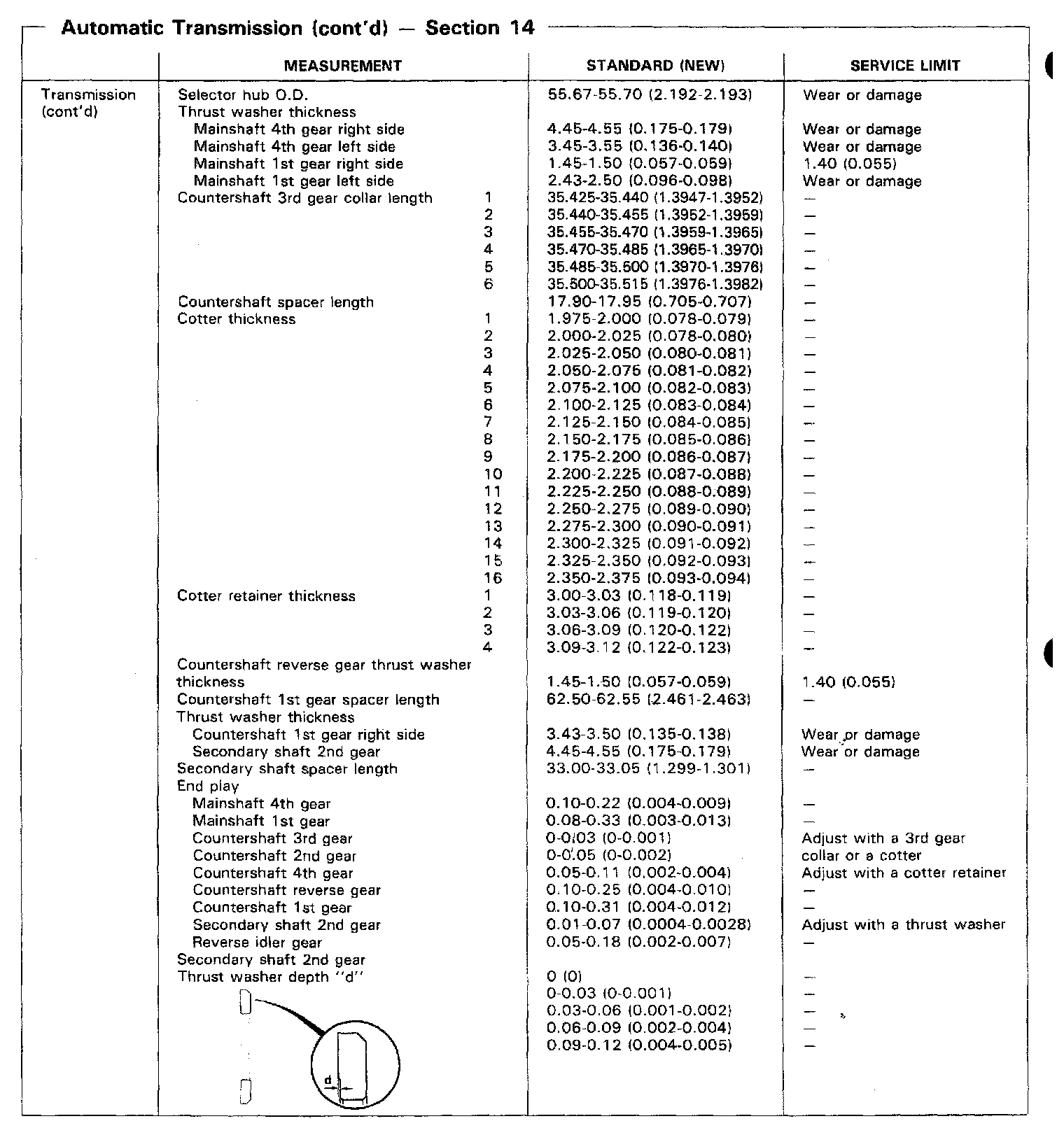

MR9A 4-spd A/T, Mainshaft & Countershaft Measurements:

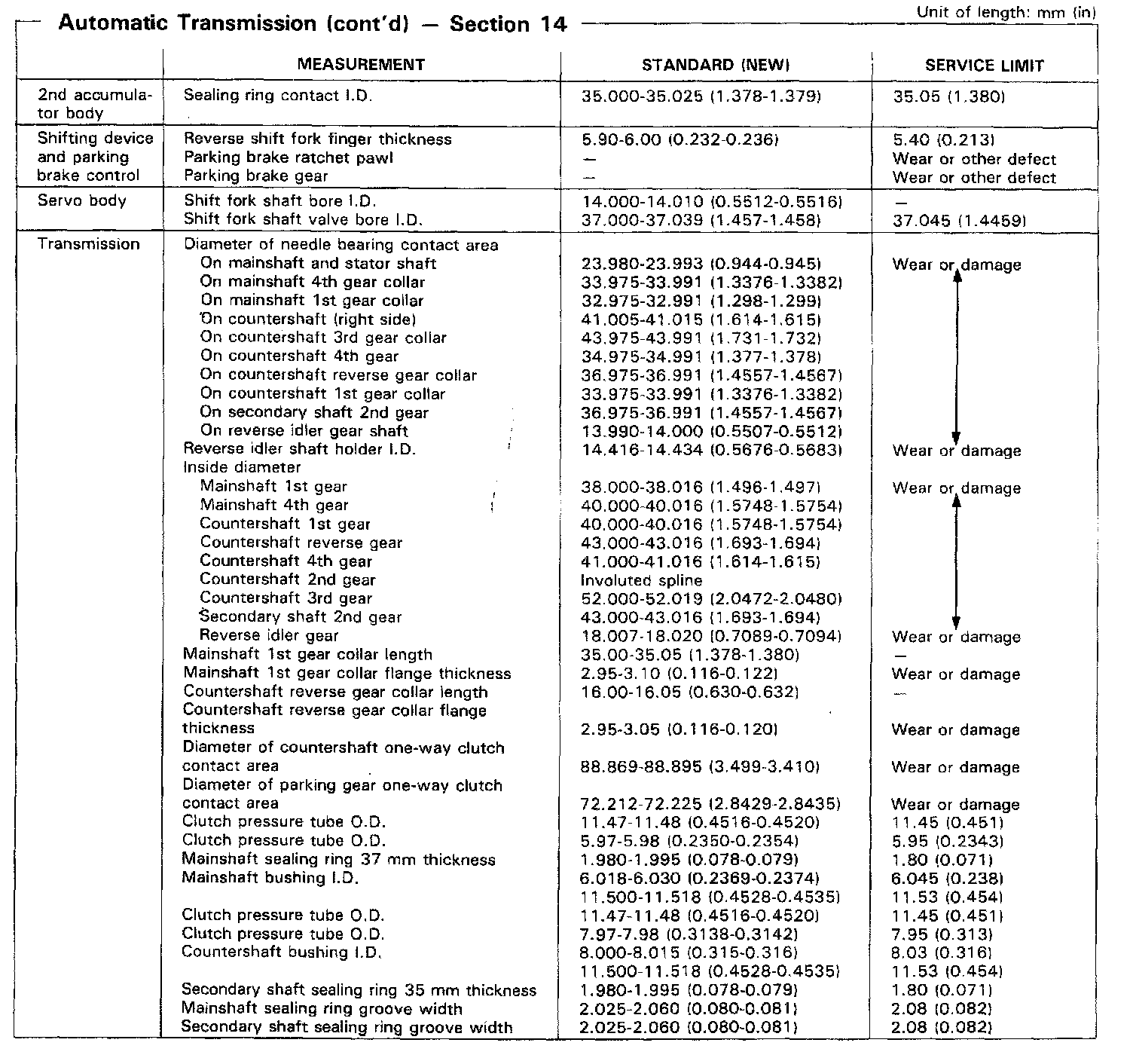

MR9A 4-spd A/T, Transmission Measurements:

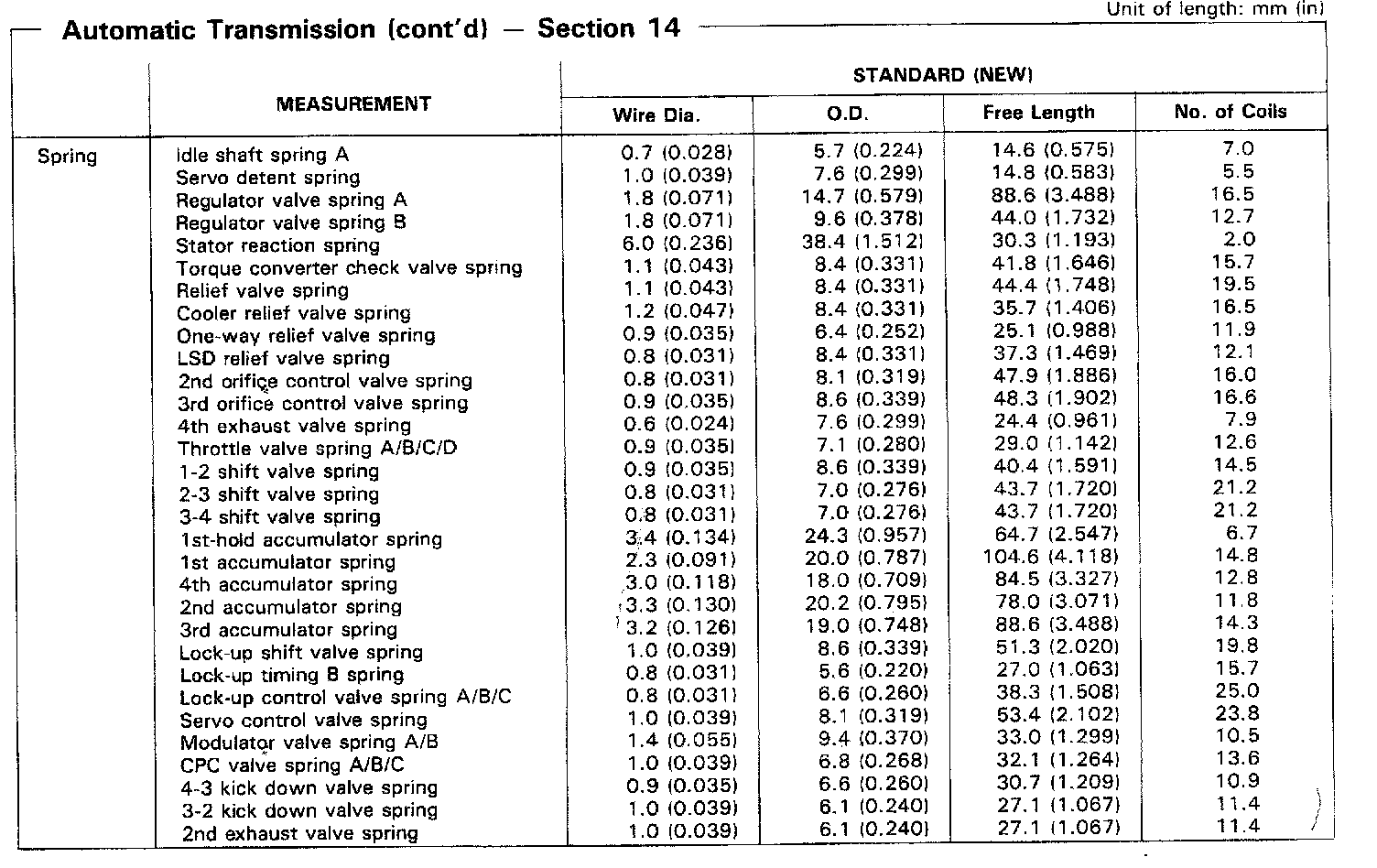

MR94-spd A/T, Transmission Spring Measurements:

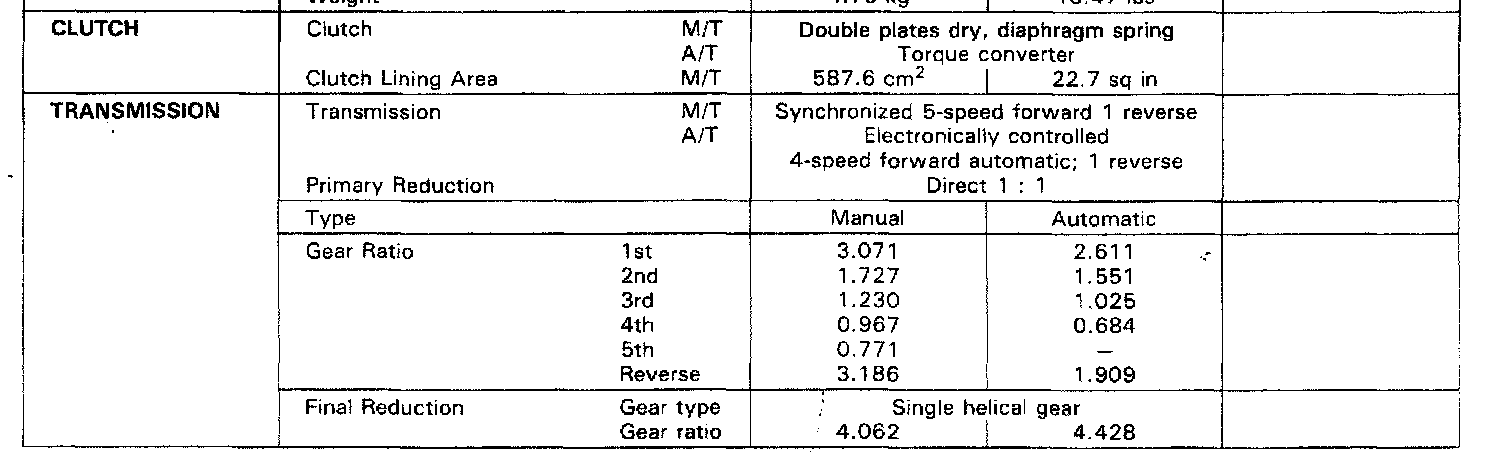

MR9A 4-spd A/T, Transmission Gear Ratios:
