Climate Control Unit

1. Remove the audio unit.

NOTE: Make sure you have the anti-theft code for the radio, then write down the frequencies for the radio's preset buttons.

2. Open the glove box.

Climate Control Unit-Replacement:

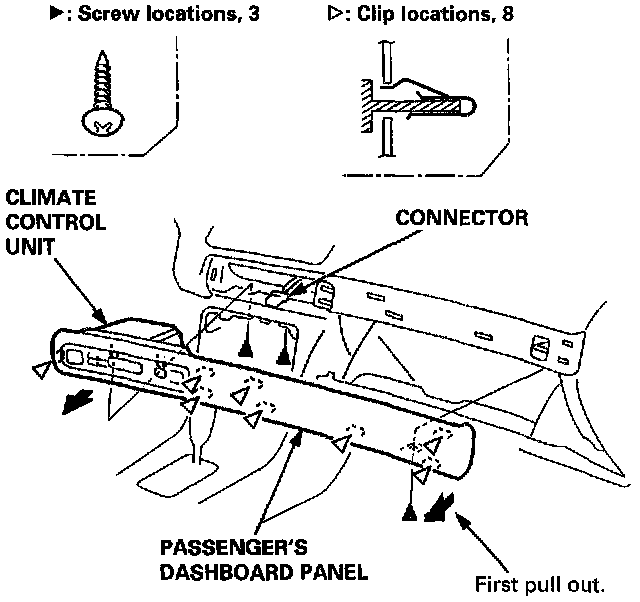

3. Remove the screws, then carefully pull out the passenger's dashboard panel and climate control unit as an assembly. Disconnect the connectors from the climate control unit.

Climate Control Unit-Replacement:

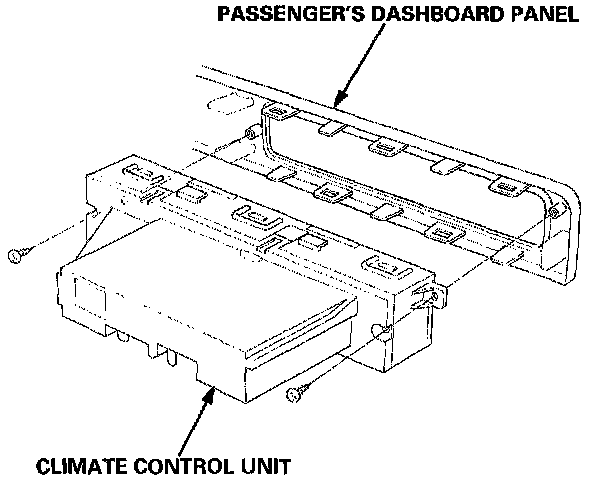

4. Remove the self-tapping screws and the climate control unit from the passenger's dashboard panel.
5. Install in the reverse order of removal.
