Pinout Values and Diagnostic Parameters

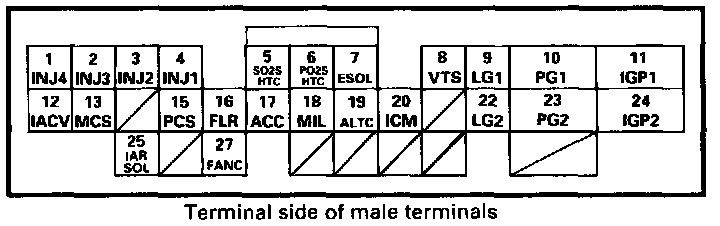

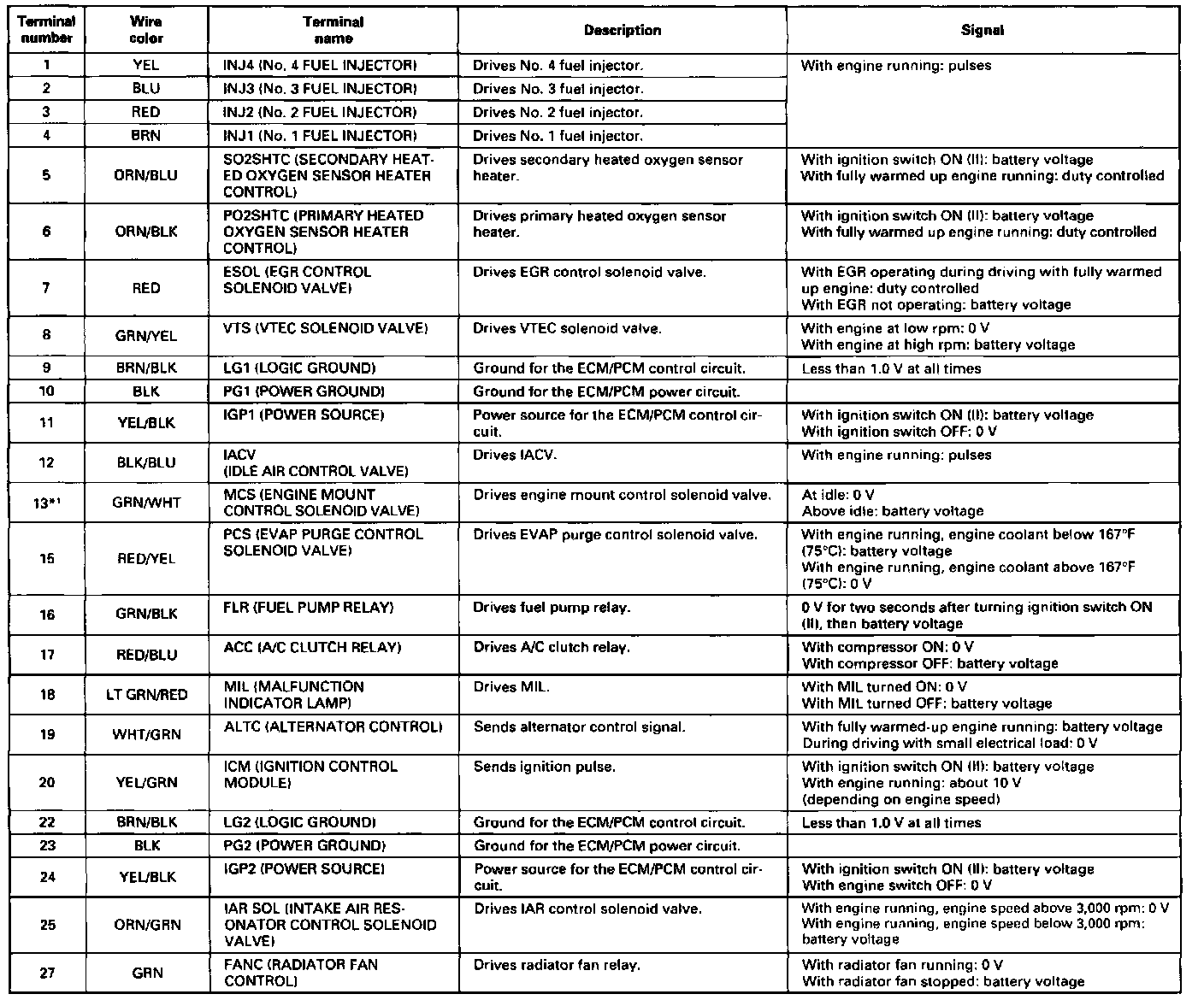

ECM/PCM CONNECTOR A (32P)

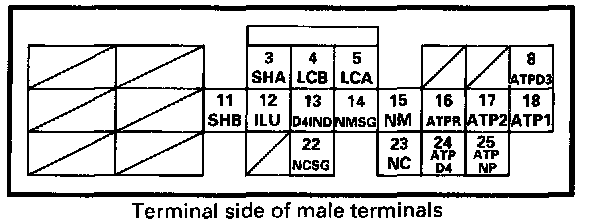

PCM CONNECTOR B (25P)*1

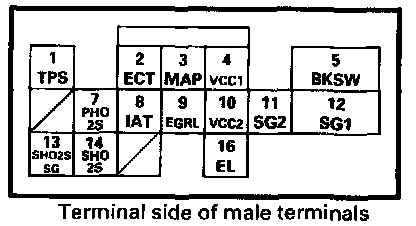

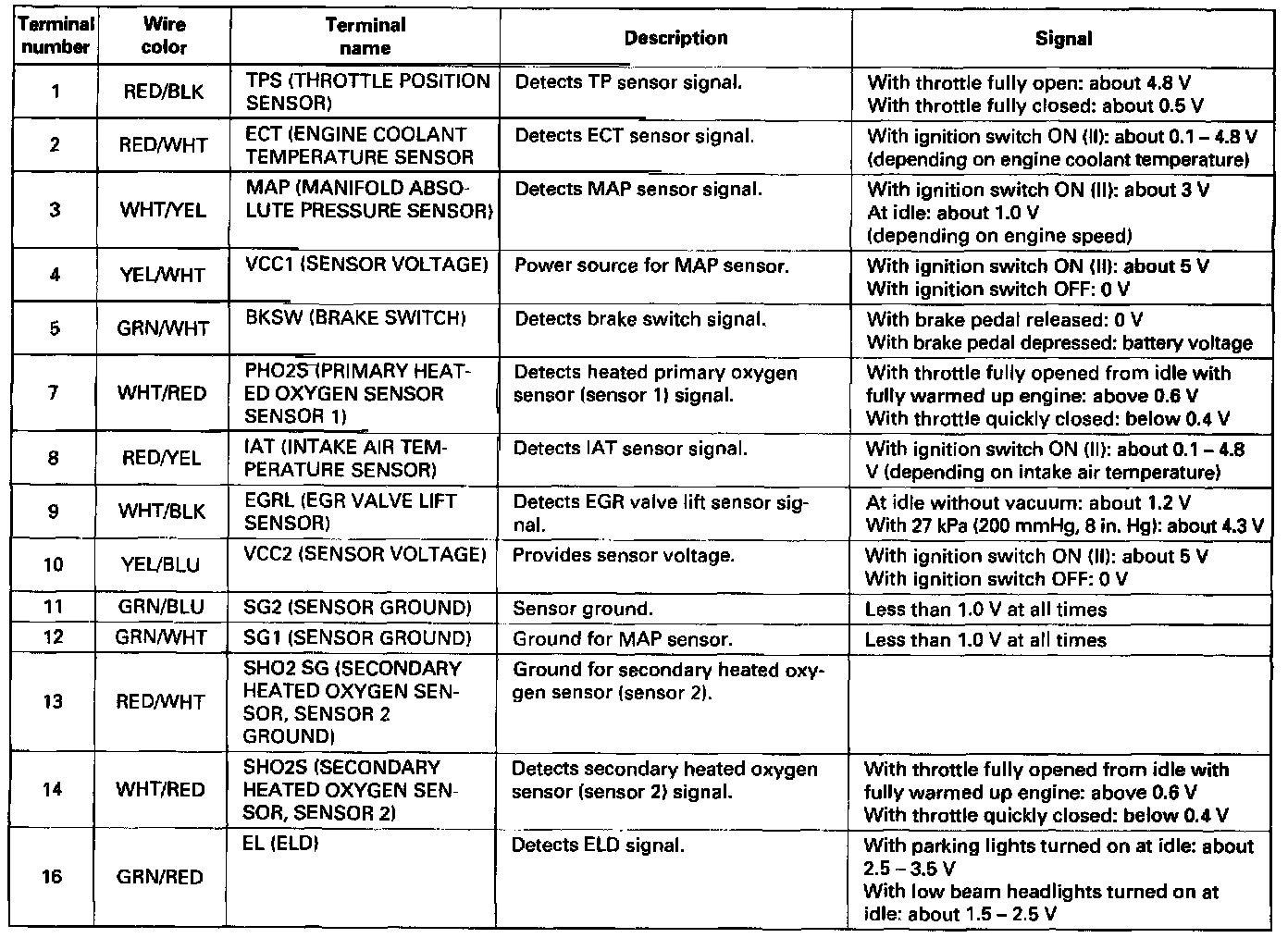

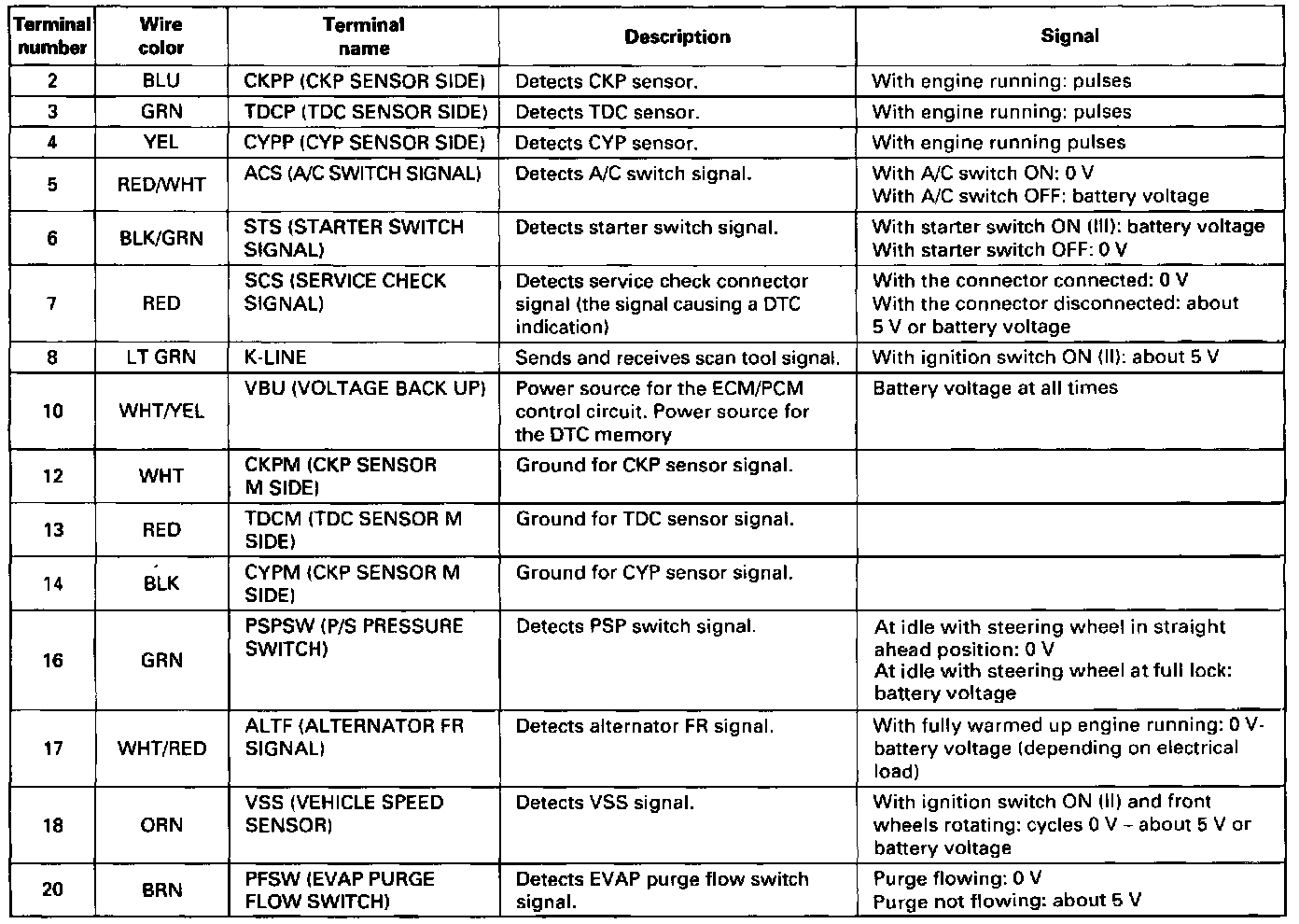

ECM/PCM CONNECTOR C (31P)








ECM/PCM CONNECTOR D (16P)

NOTE: Standard Battery voltage is 12 V.

*1:A/T
