Catalytic Converter: Service and Repair

Replacement

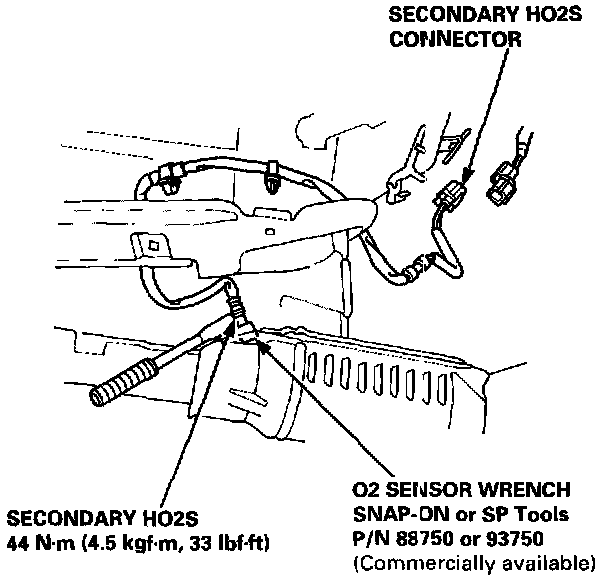

1. Remove the Secondary HO2S:
a. Disconnect the secondary HO2S connector, and remove the harness clamps, then remove the secondary HO2S.

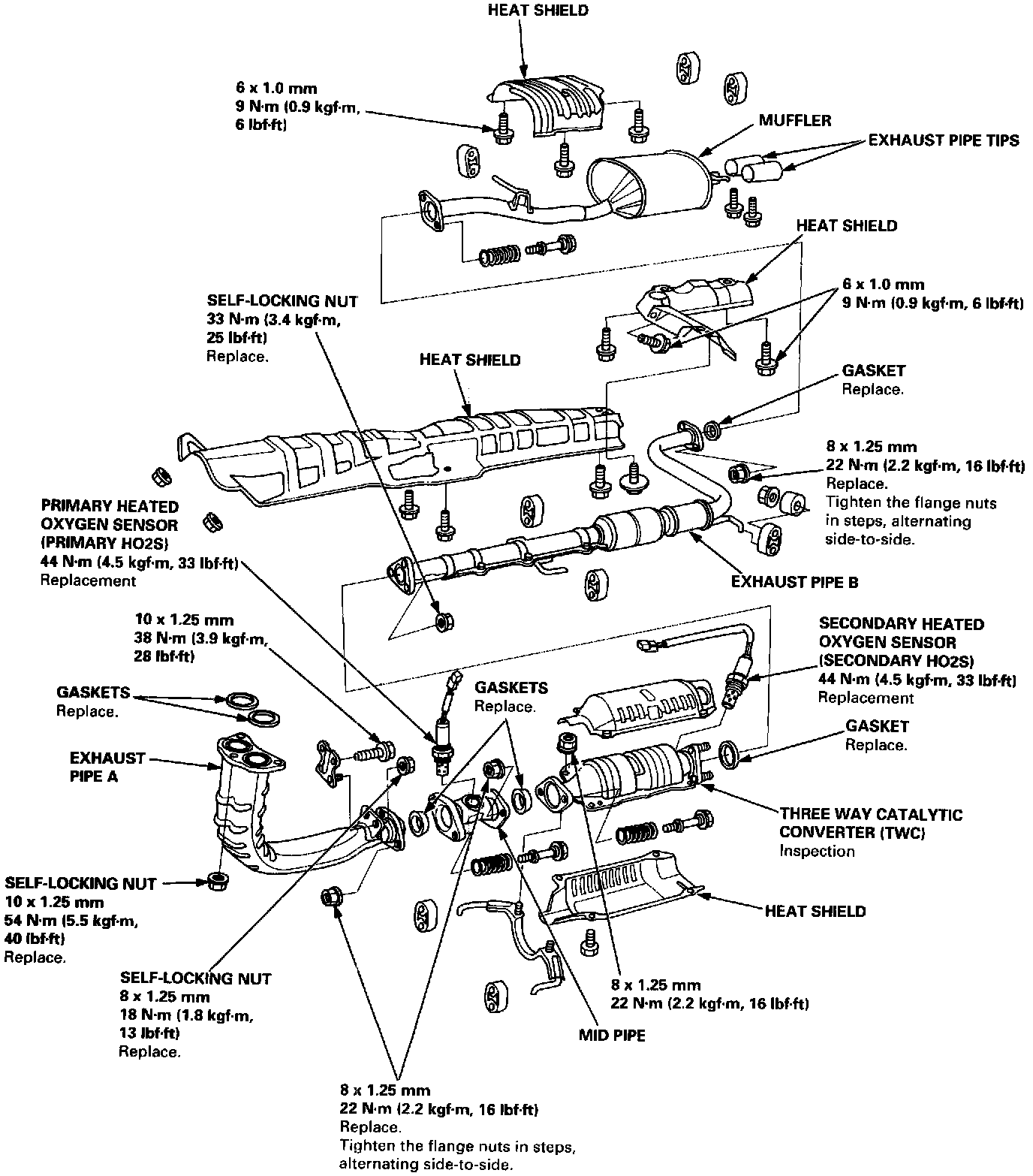

3. Replace catalytic convertor (see Image).
3. Install the secondary HO2S.

Torque: 44 Nm (33 ft.lbs.)
