Radiator Cooling Fan Control Module: Testing and Inspection

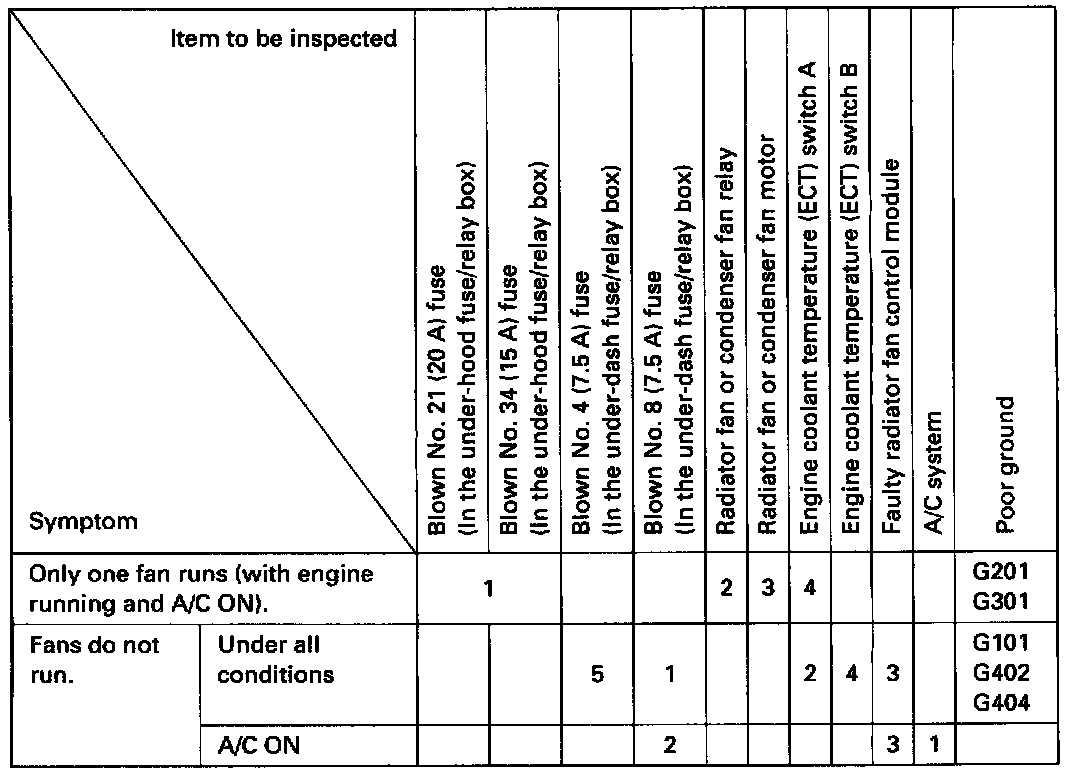

NOTE: The numbers in the table show the troubleshooting sequence.
