A/T Technical Data

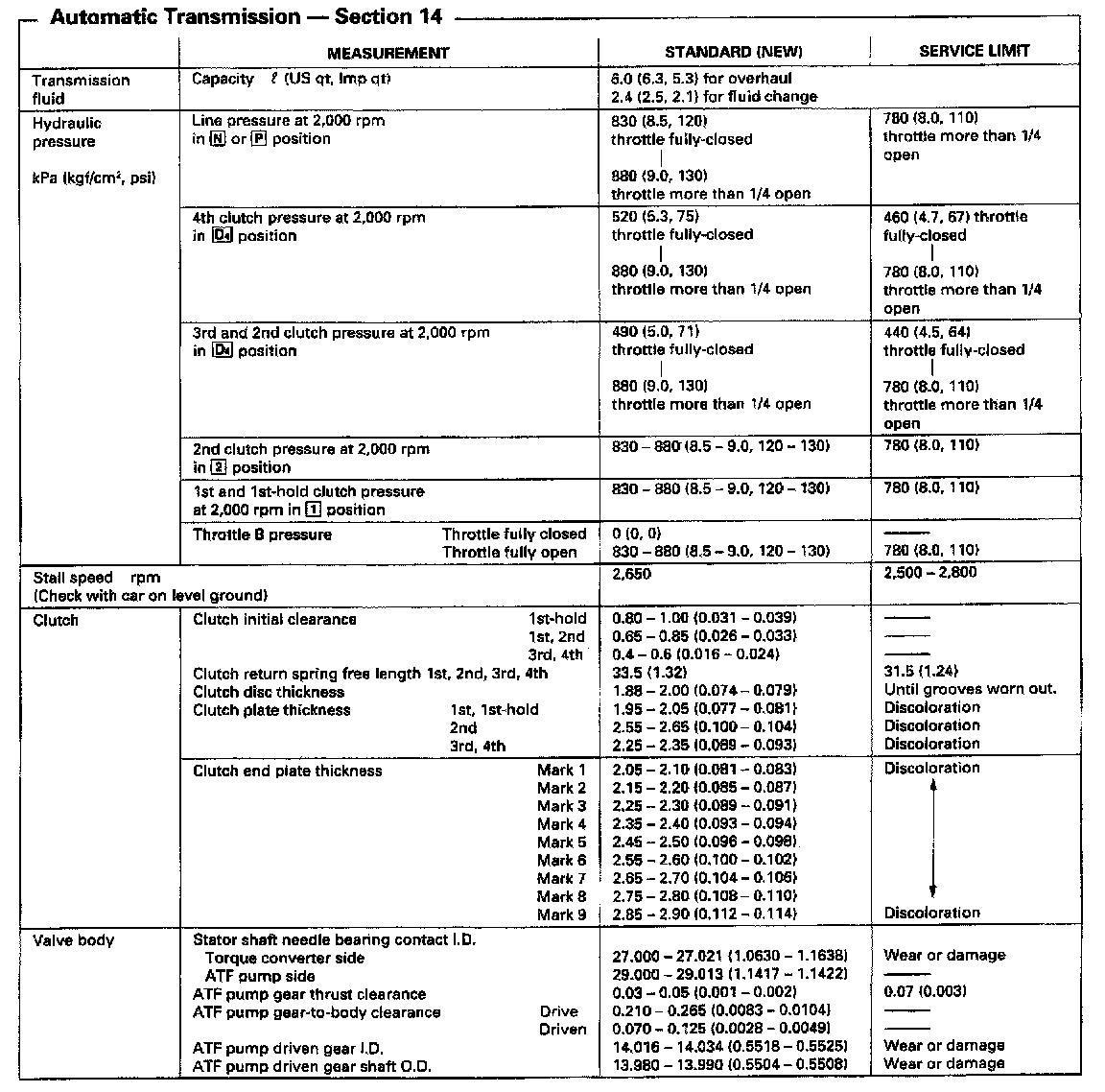

A6VA 4-spd A/T, Line Pressure, Stall Speed & Valve Body:

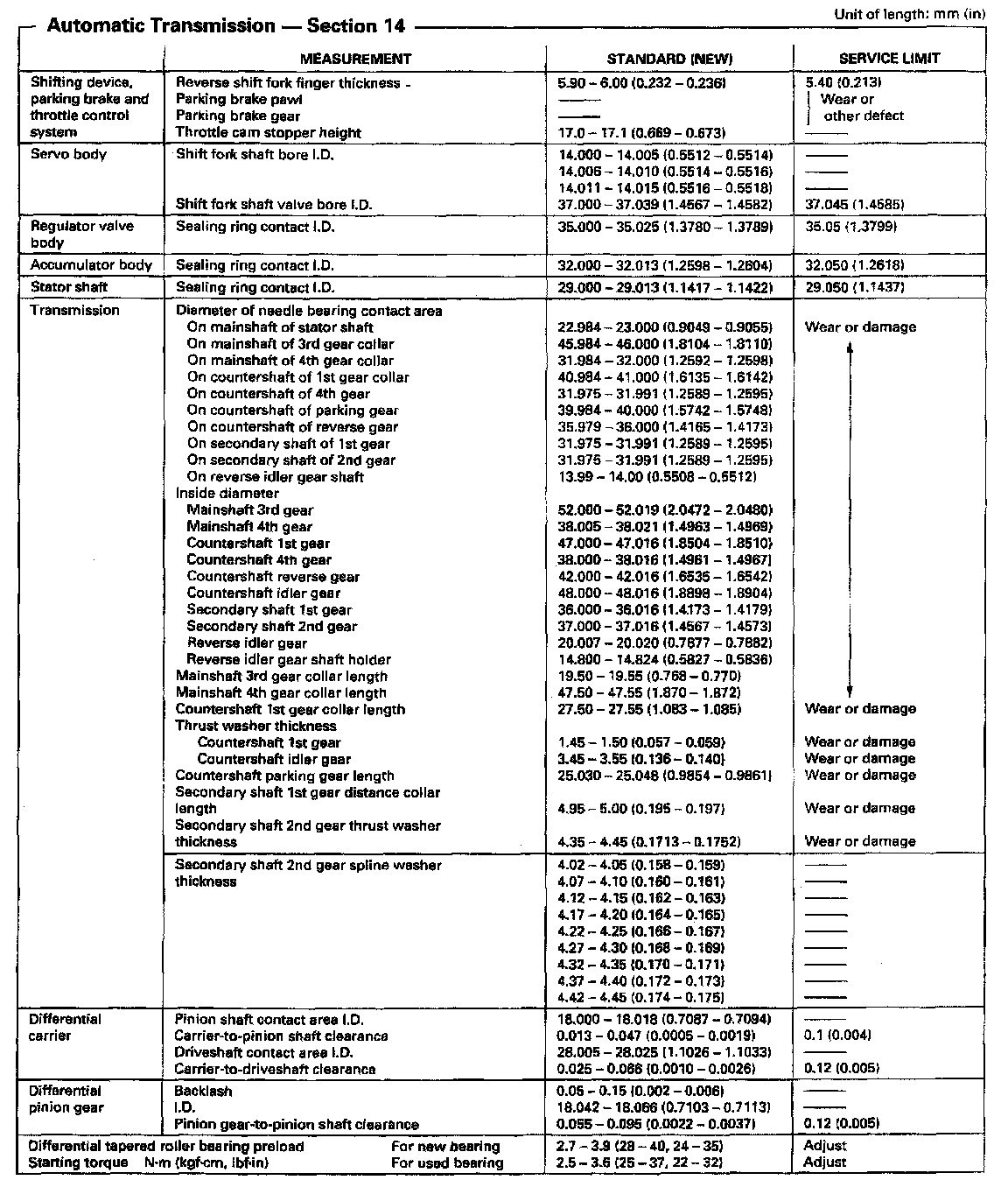

A6VA 4-spd A/T, Transmission Measurement:

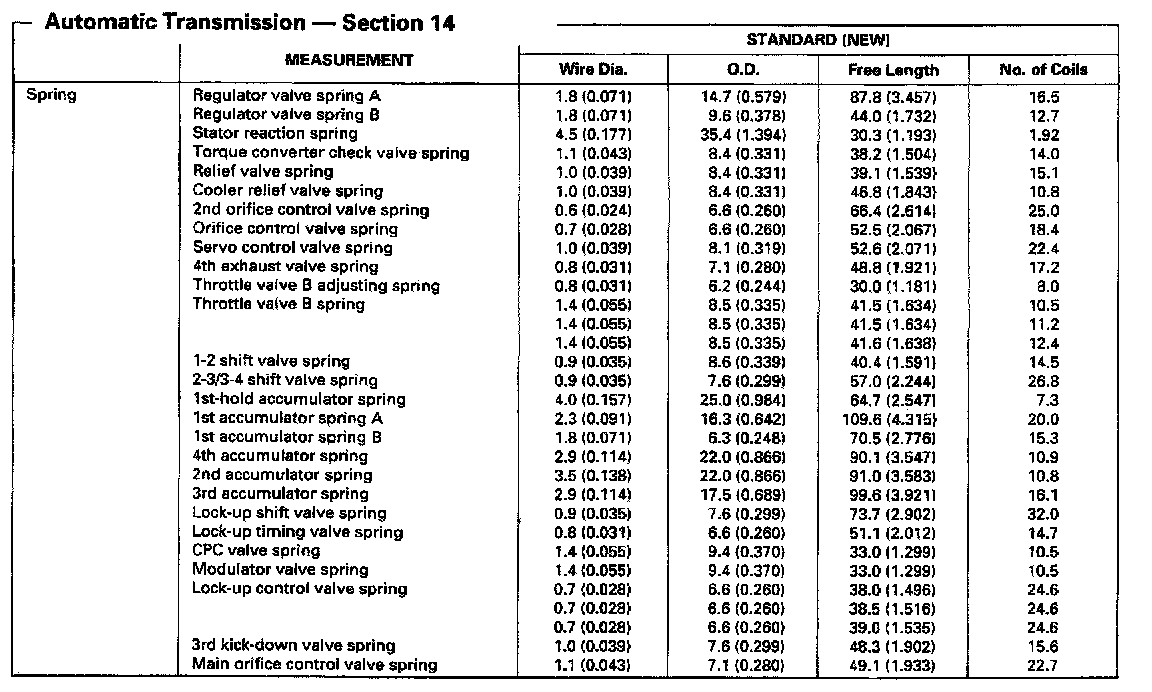

A6VA 4-spd A/T, Transmission Spring Measurement:





Manual/Automatic Transmission Gear Ratios:
