A/T Torque Data

A6VA 4-spd A/T, Right Side Cover (1 Of 6):

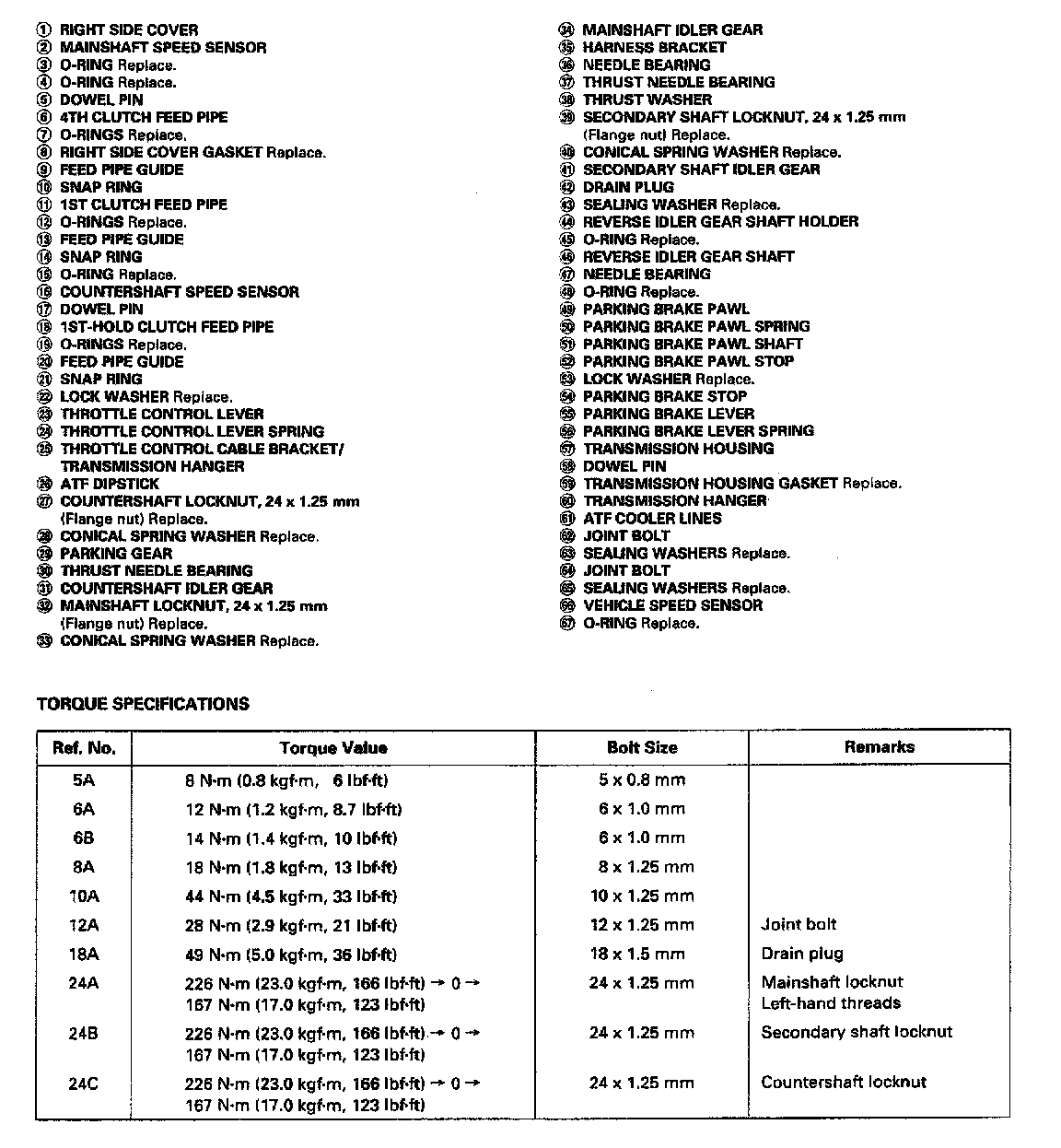

A6VA 4-spd A/T, Right Side Cover Legend (2 Of 6):

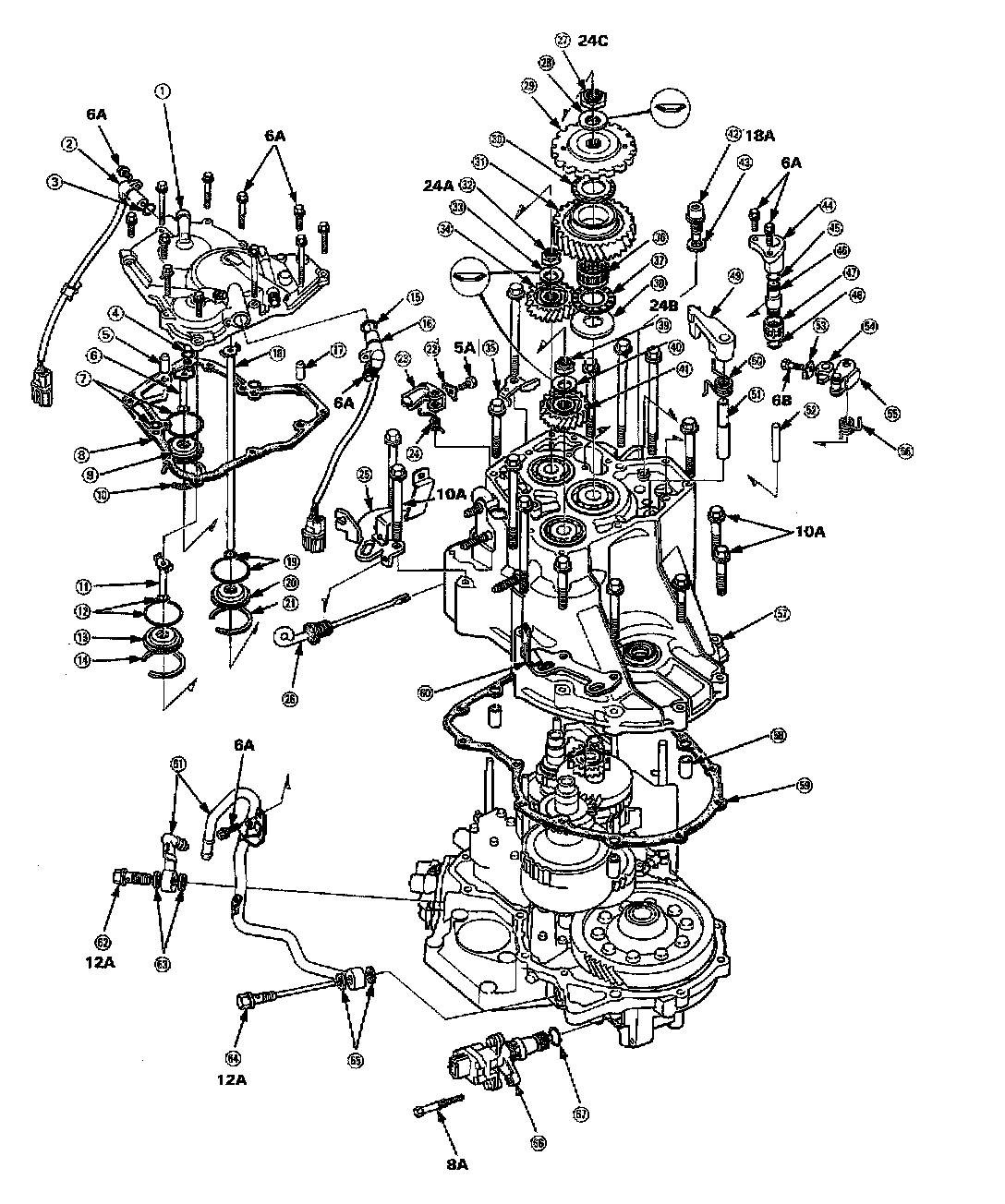

A6VA 4-spd A/T, Transmission Housing (3 Of 6):

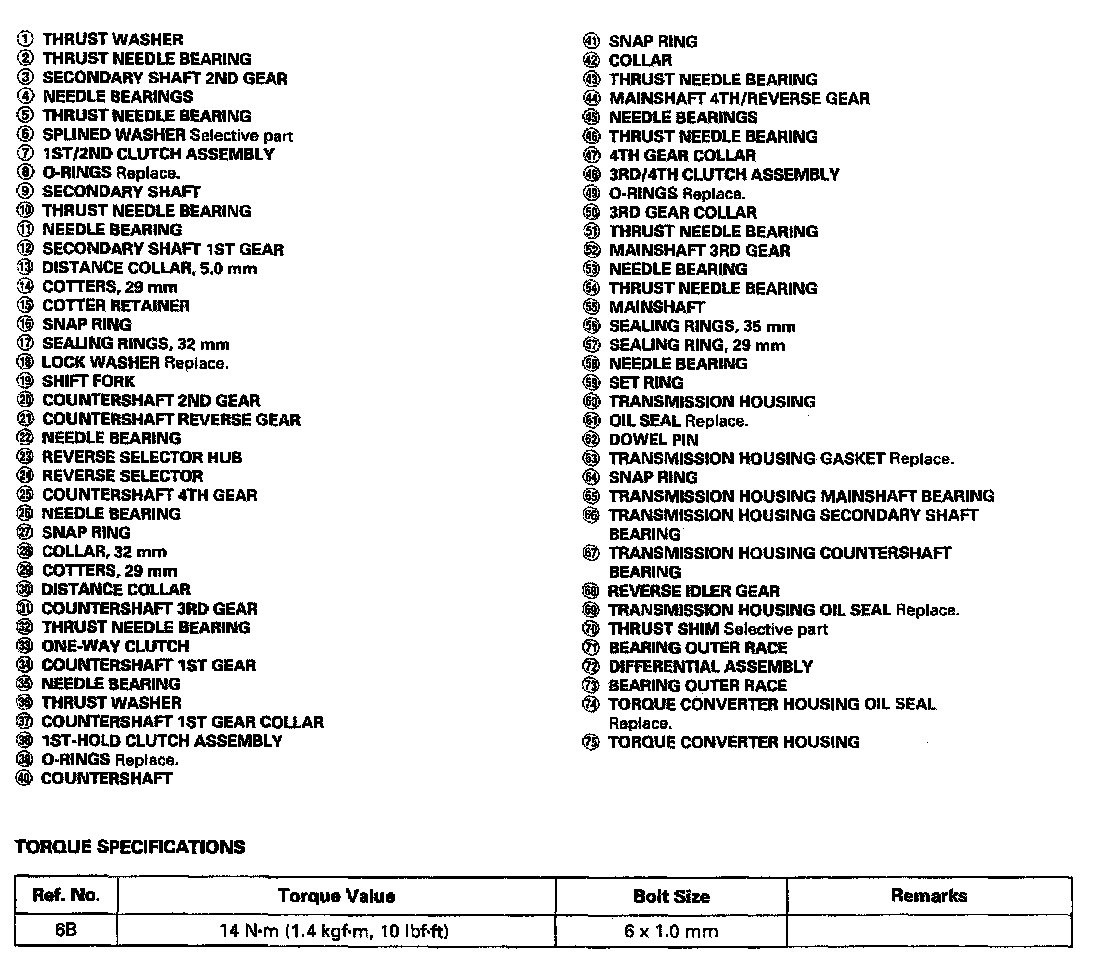

A6VA 4-spd A/T, Transmission Housing Legend (4 Of 6):

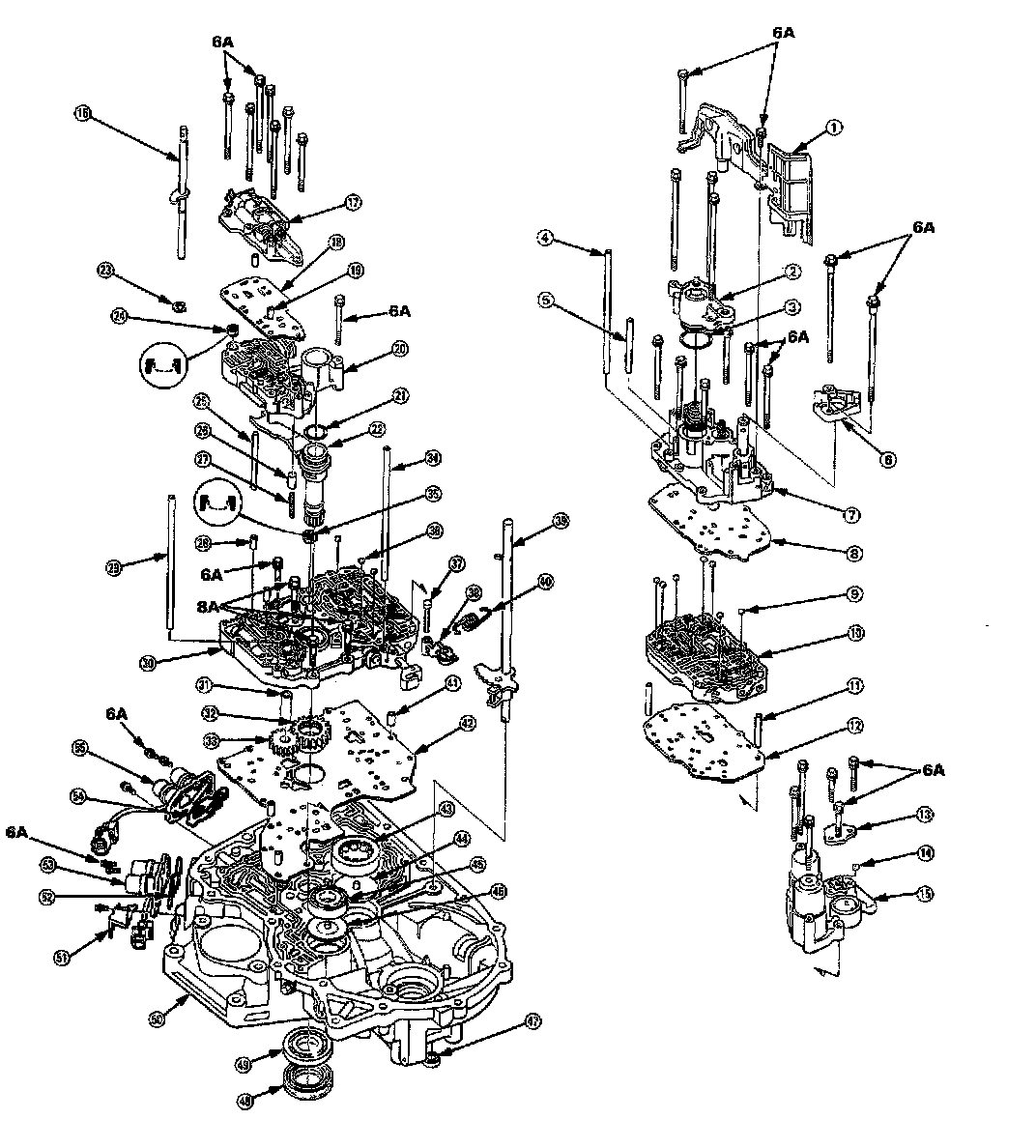

A6VA 4-spd A/T, Torque Converter Housing/Valve Body (5 Of 6):

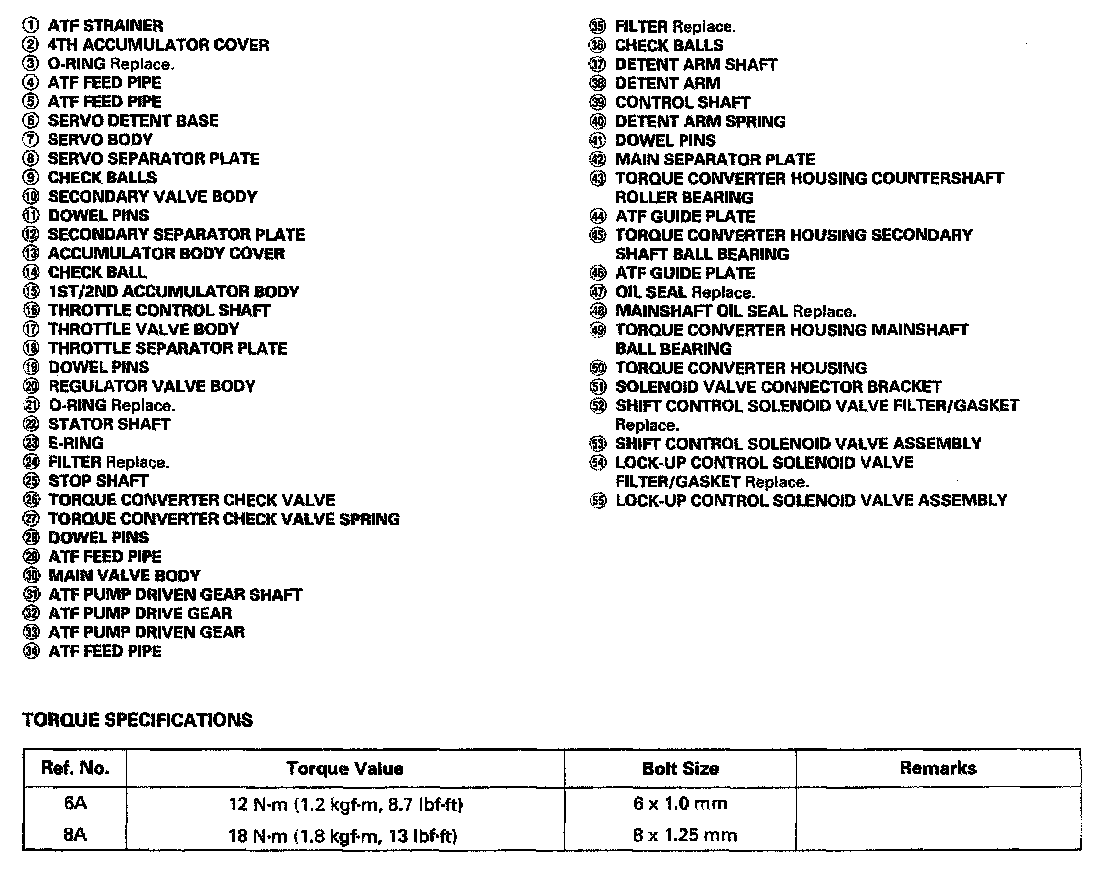

A6VA 4-spd A/T, Torque Converter Housing/Valve Body Legend (6 Of 6):

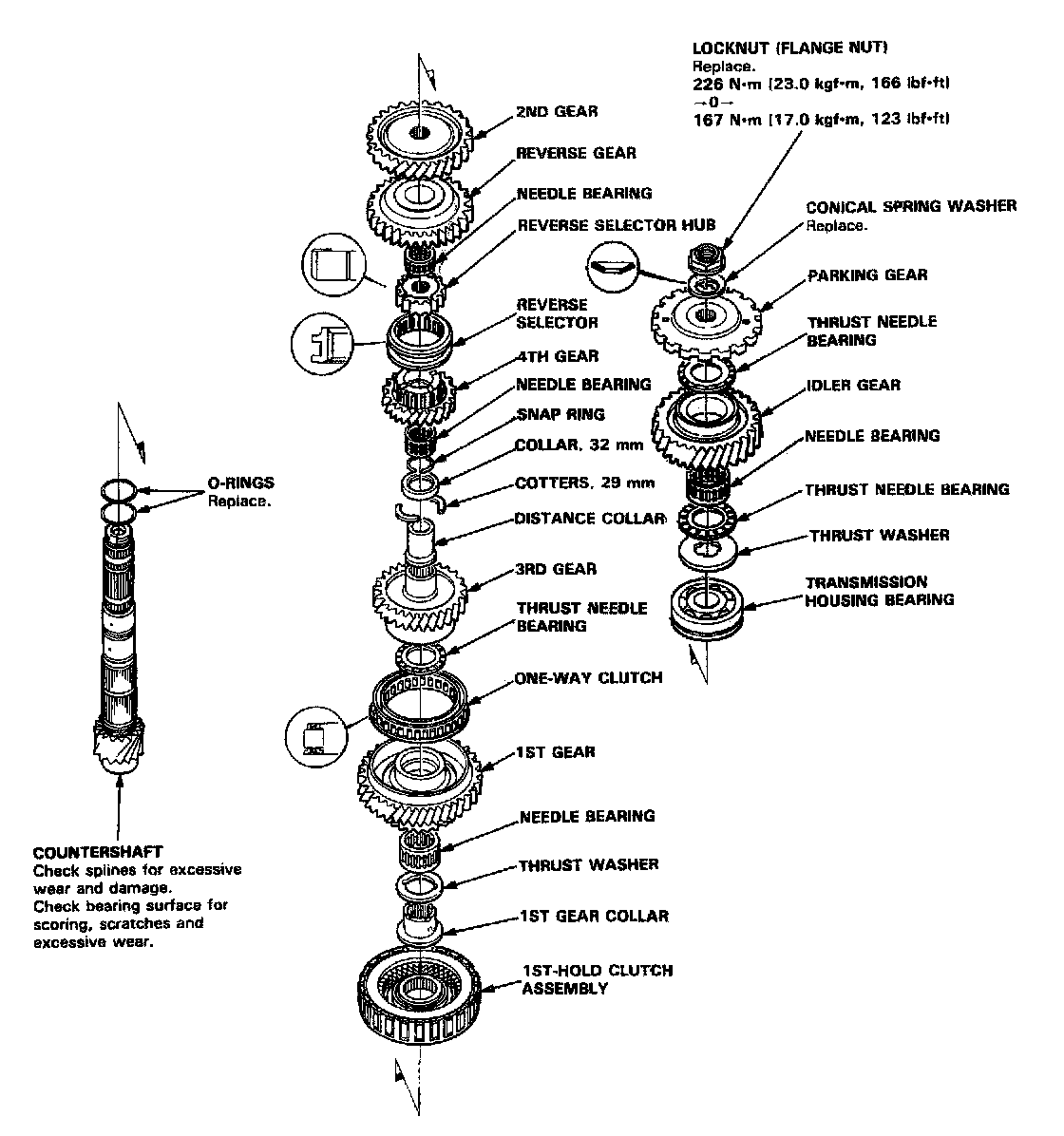

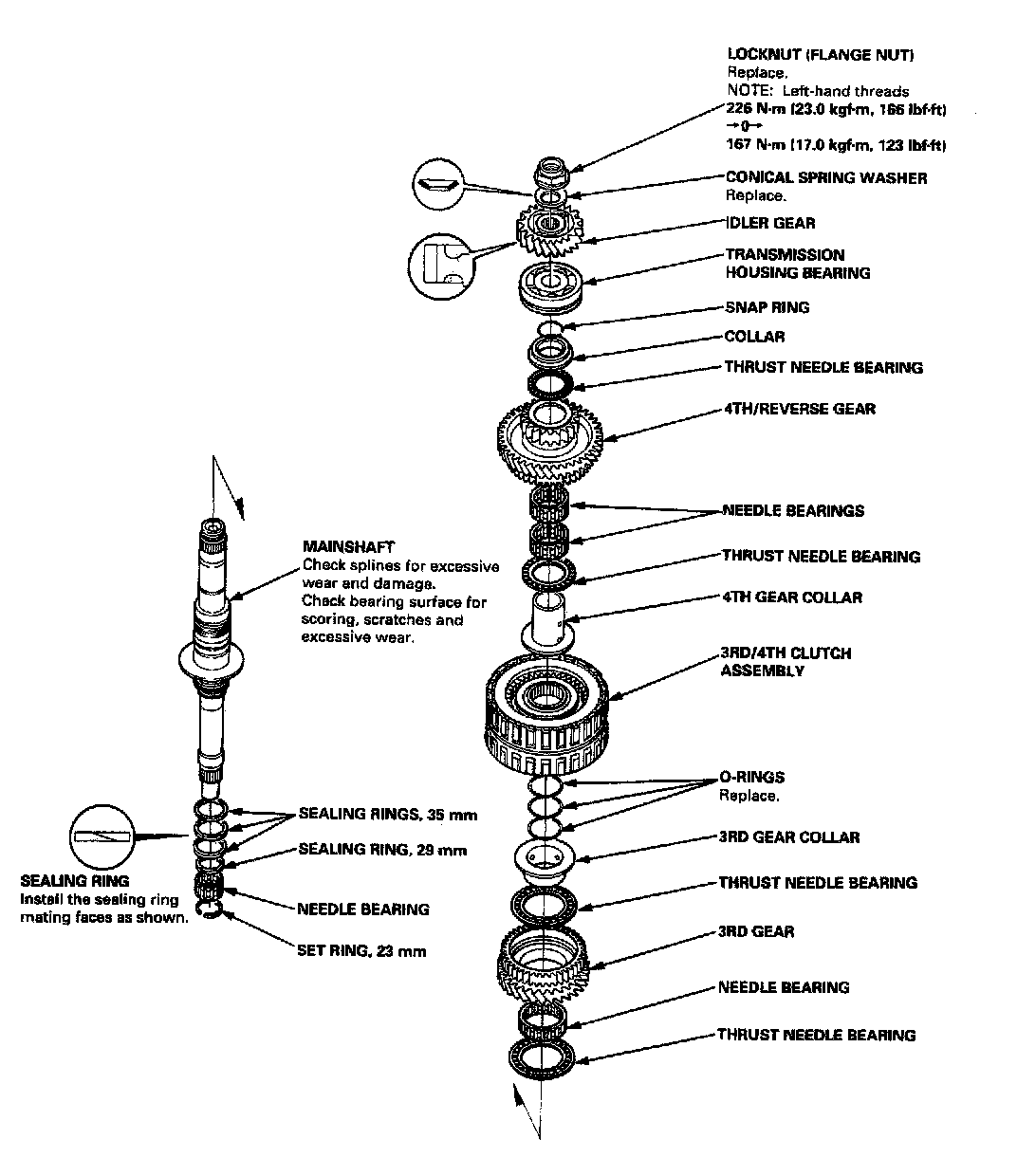

A6VA 4-spd A/T, Mainshaft Locknut:

A6VA 4-spd A/T, Countershaft Locknut:

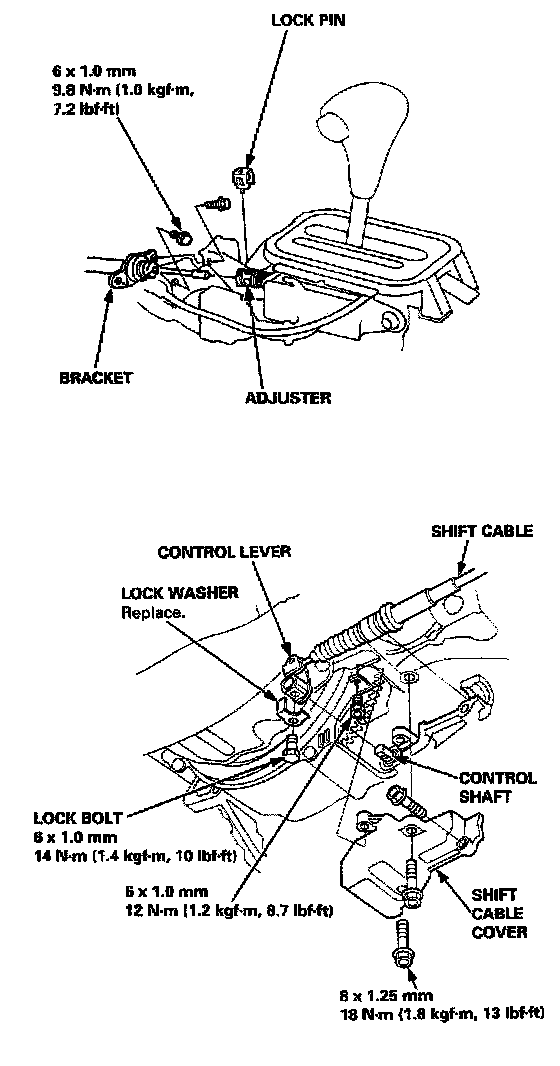

A6VA 4-spd A/T, Shift Lever / Shift Cable:

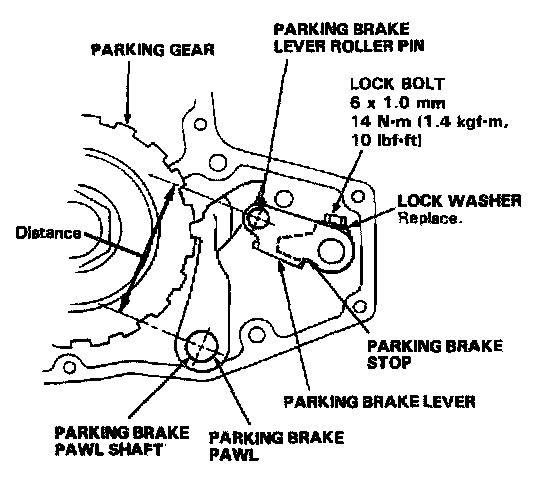

A6VA 4-spd Parking Brake Stop:

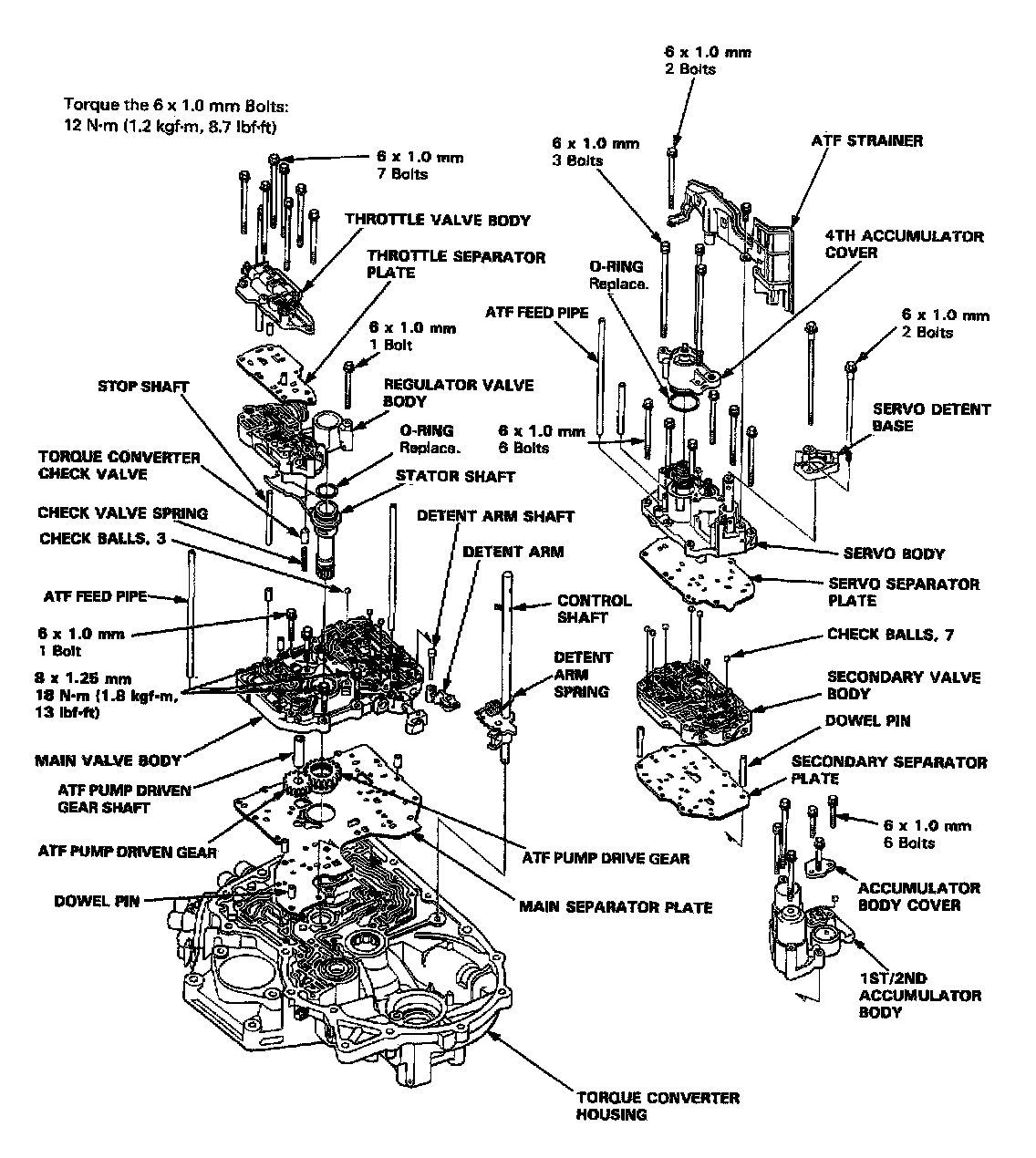

A6VA 4-spd A/T, Valve Body Assembly:

A6VA 4-spd A/T, Torque Converter Housing:

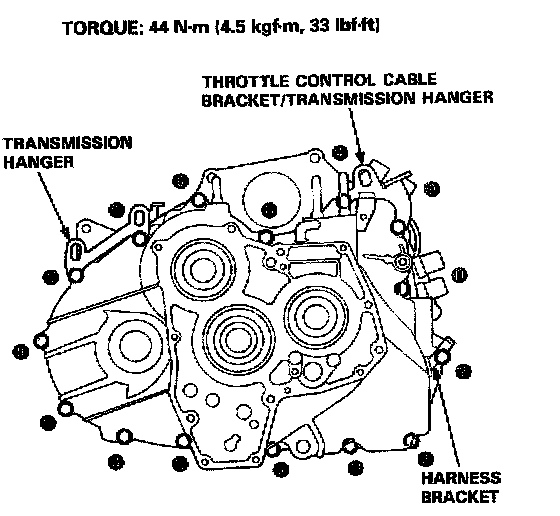

A6VA 4-spd A/T, Transmission Hanger & Brackets:

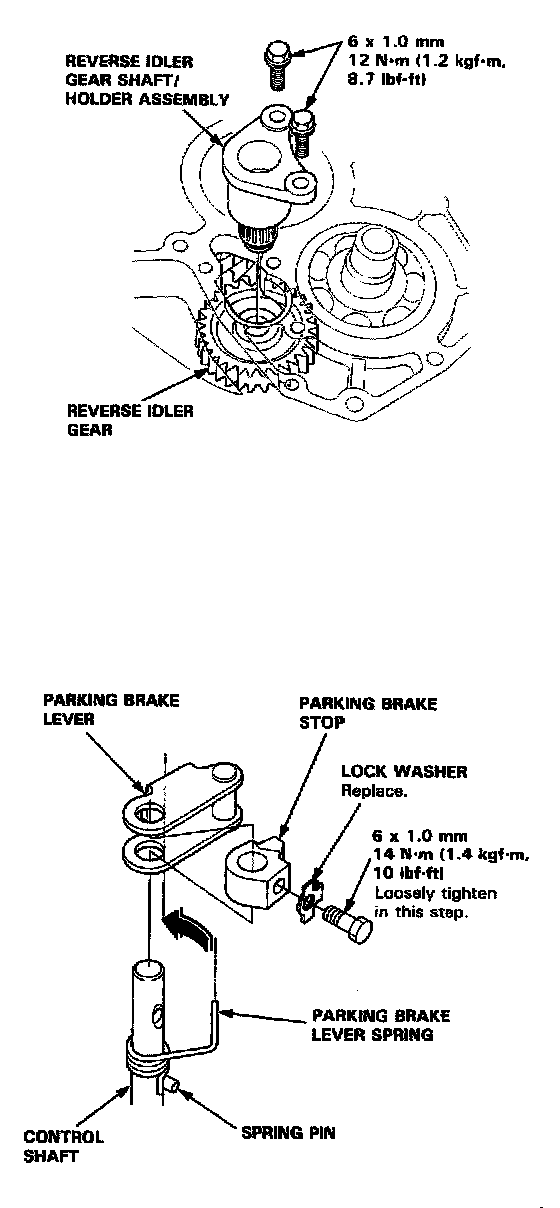

A6VA 4-spd A/T, Reverse Idler & Parking Brake Lock Bolts:

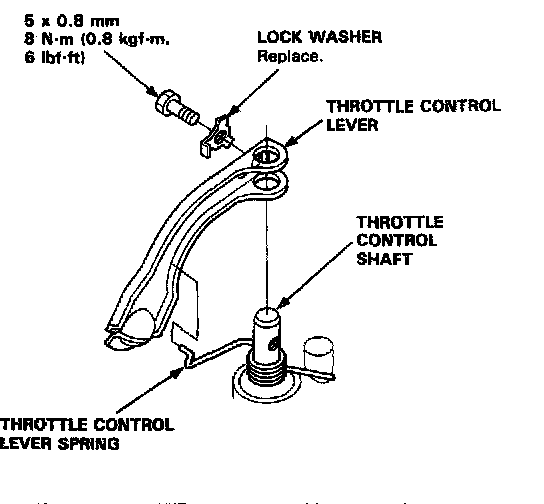

A6VA 4-spd A/T, Throttle Control Lever:

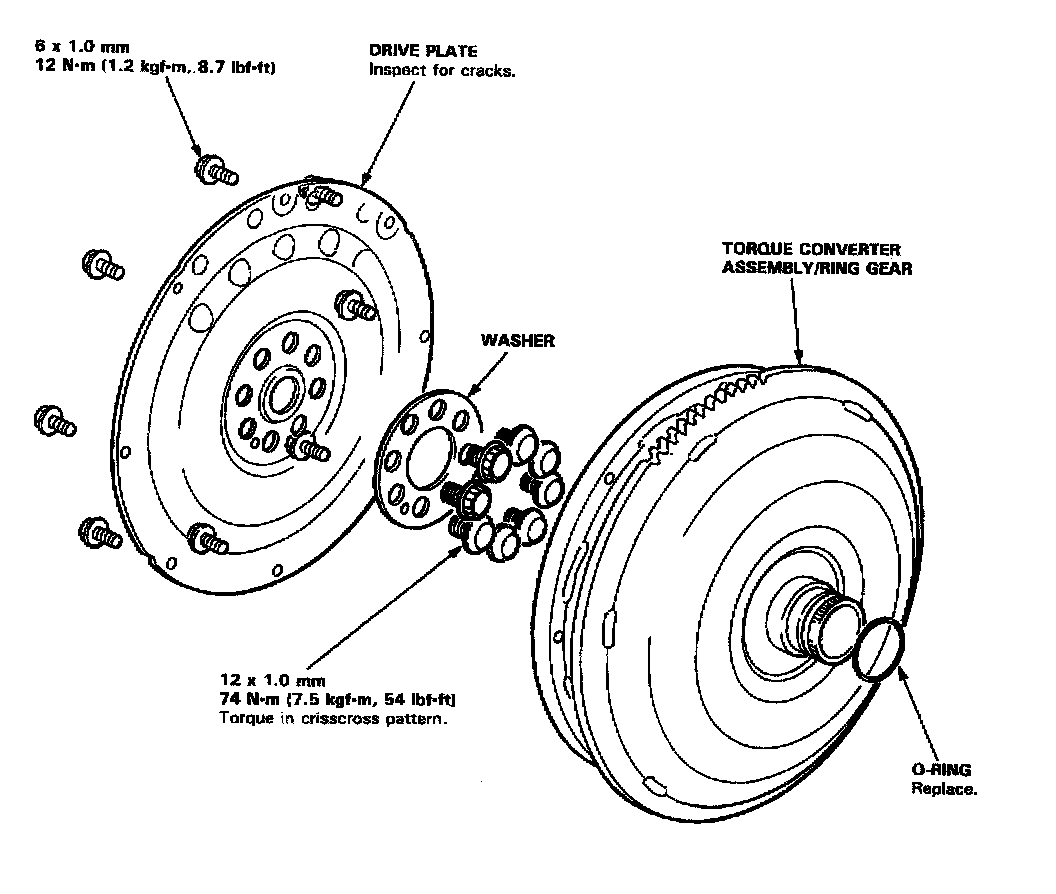

A6VA 4-spd A/T, Torque Converter / Drive Plate:

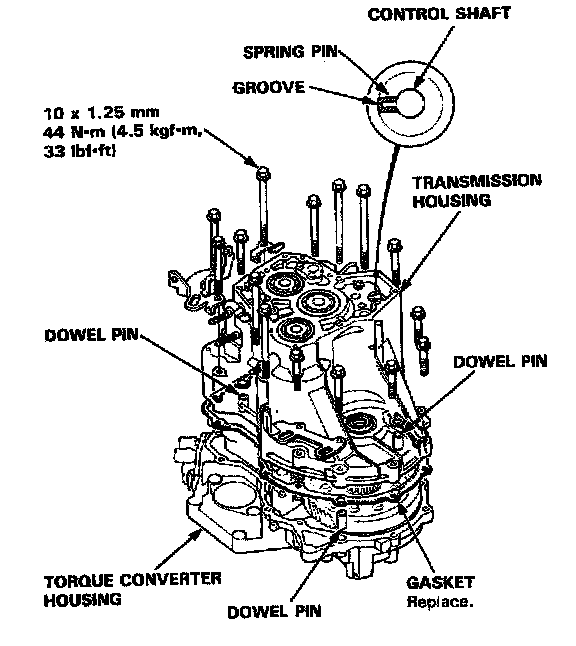

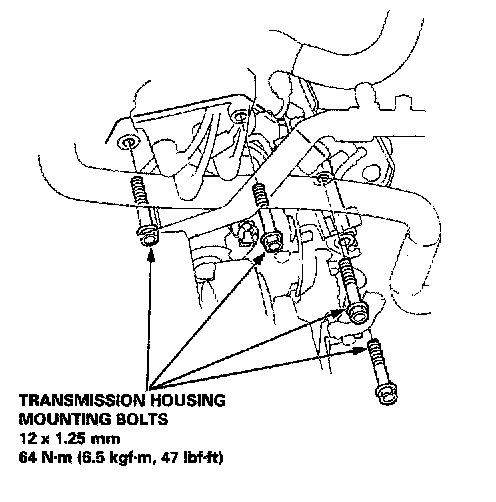

A6VA 4-spd A/T, Transmission Housing Mounting:

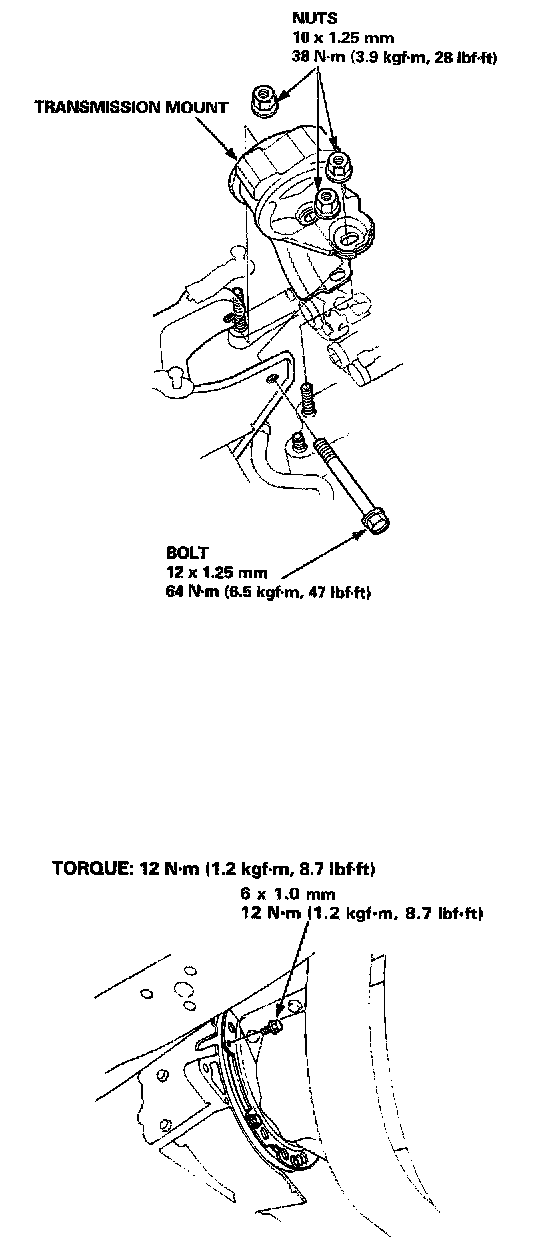

A6VA 4-spd A/T, Transmission Mount / Drive Plate:

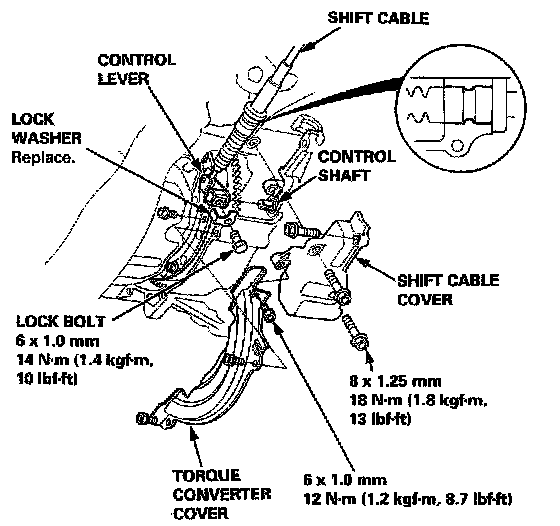

A6VA 4-spd A/T, Shift Cable Assembly:

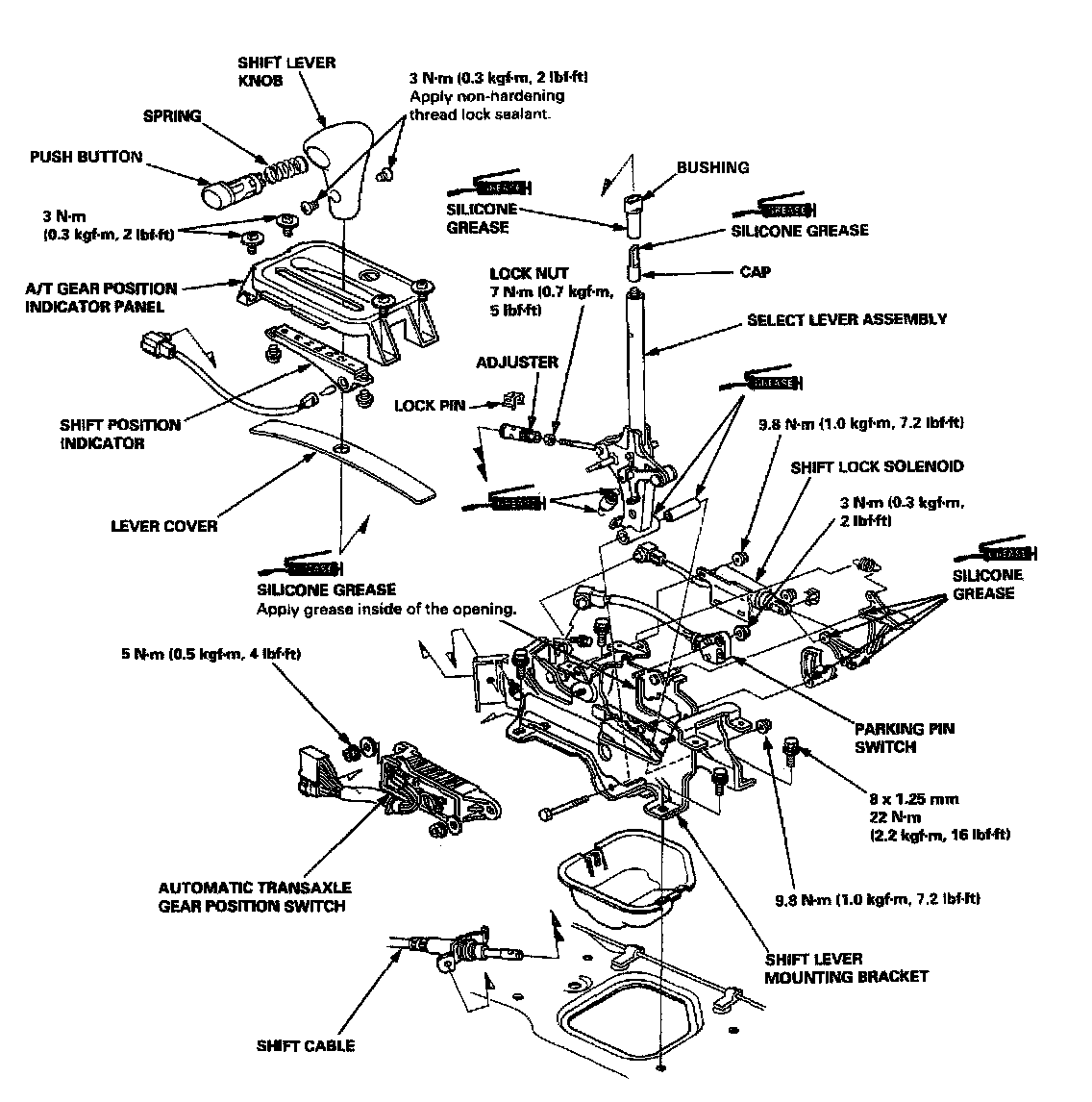

A6VA 4-spd A/T, Shift Lever Assembly:
