Differential Torque Data

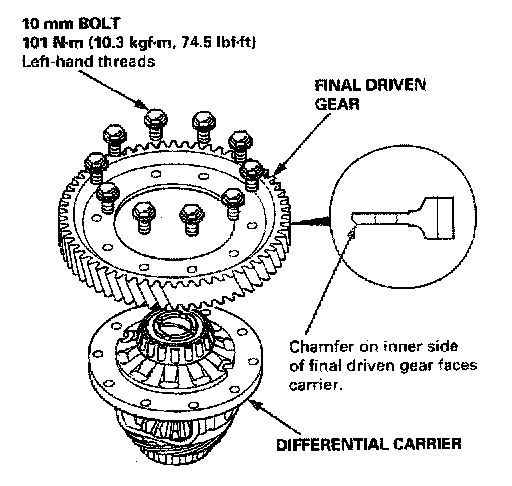

Differential Carrier Crisscross Pattern Torque:

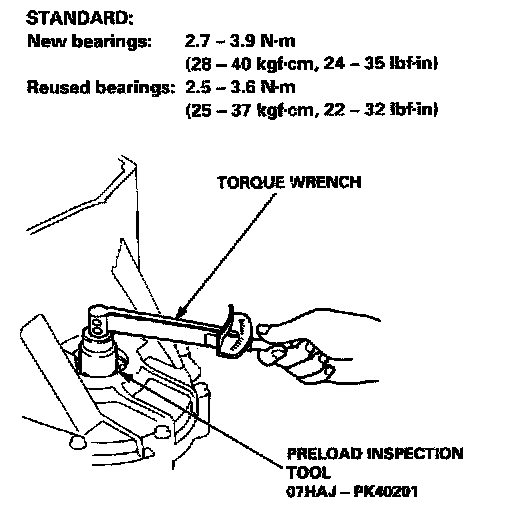

Differential Preload Torque:
