M/T Torque Data

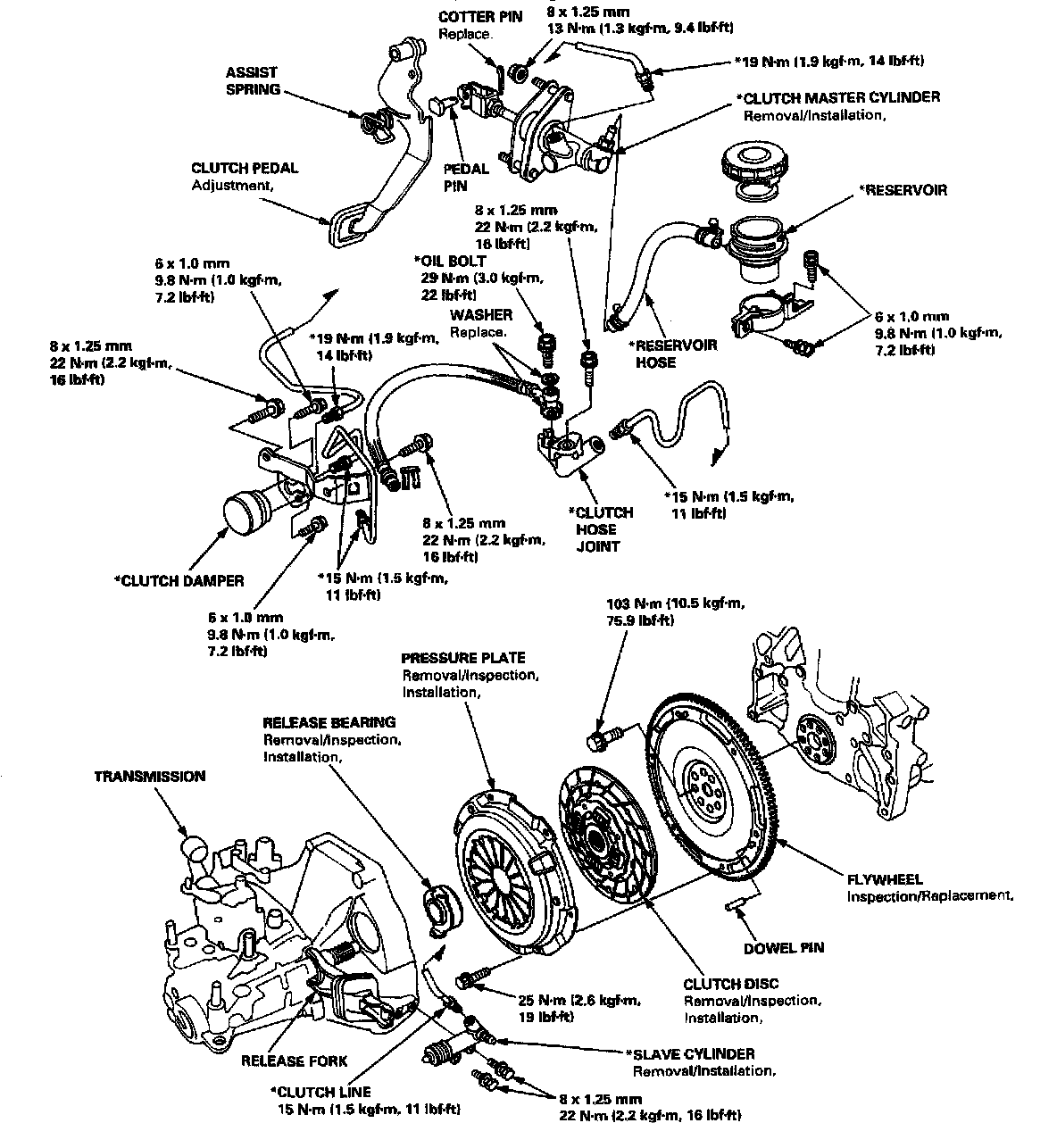

S2A4 5-spd M/T, Clutch Assembly:

S2A4 5-spd M/T, Clutch Pedal:

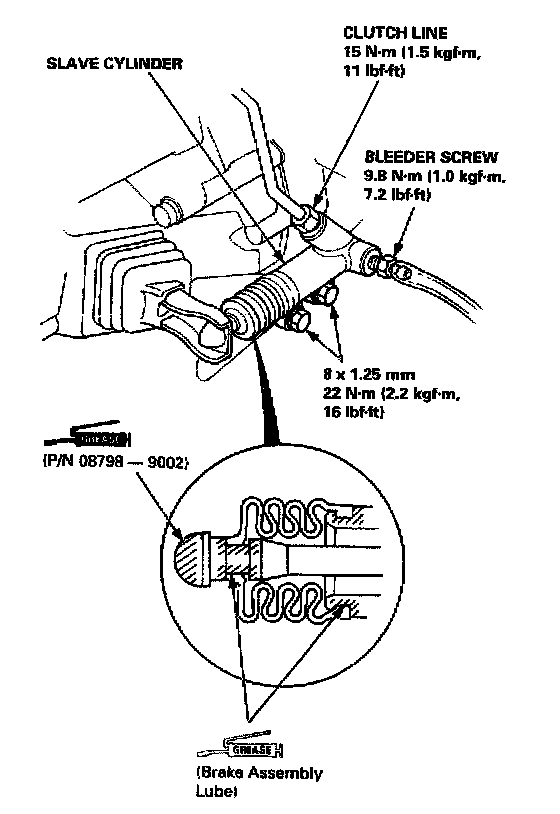

S2VA 5-spd M/T, Slave Cylinder:

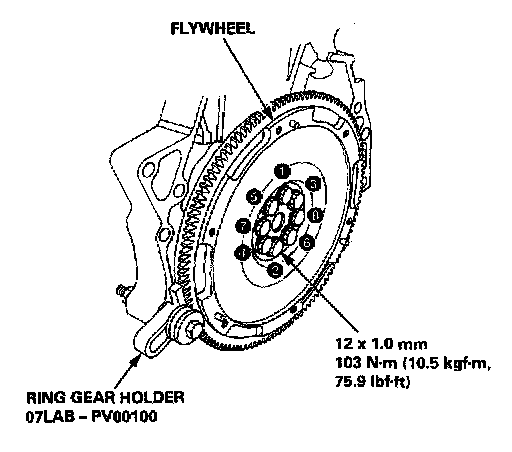

S2A4 5-spd M/T, Flywheel Torque & Sequence:

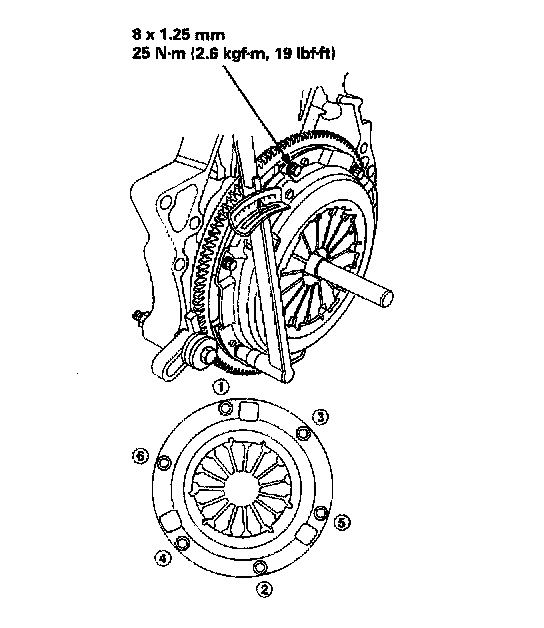

S2A4 5-spd M/T, Pressure Plate Torque & Sequence:

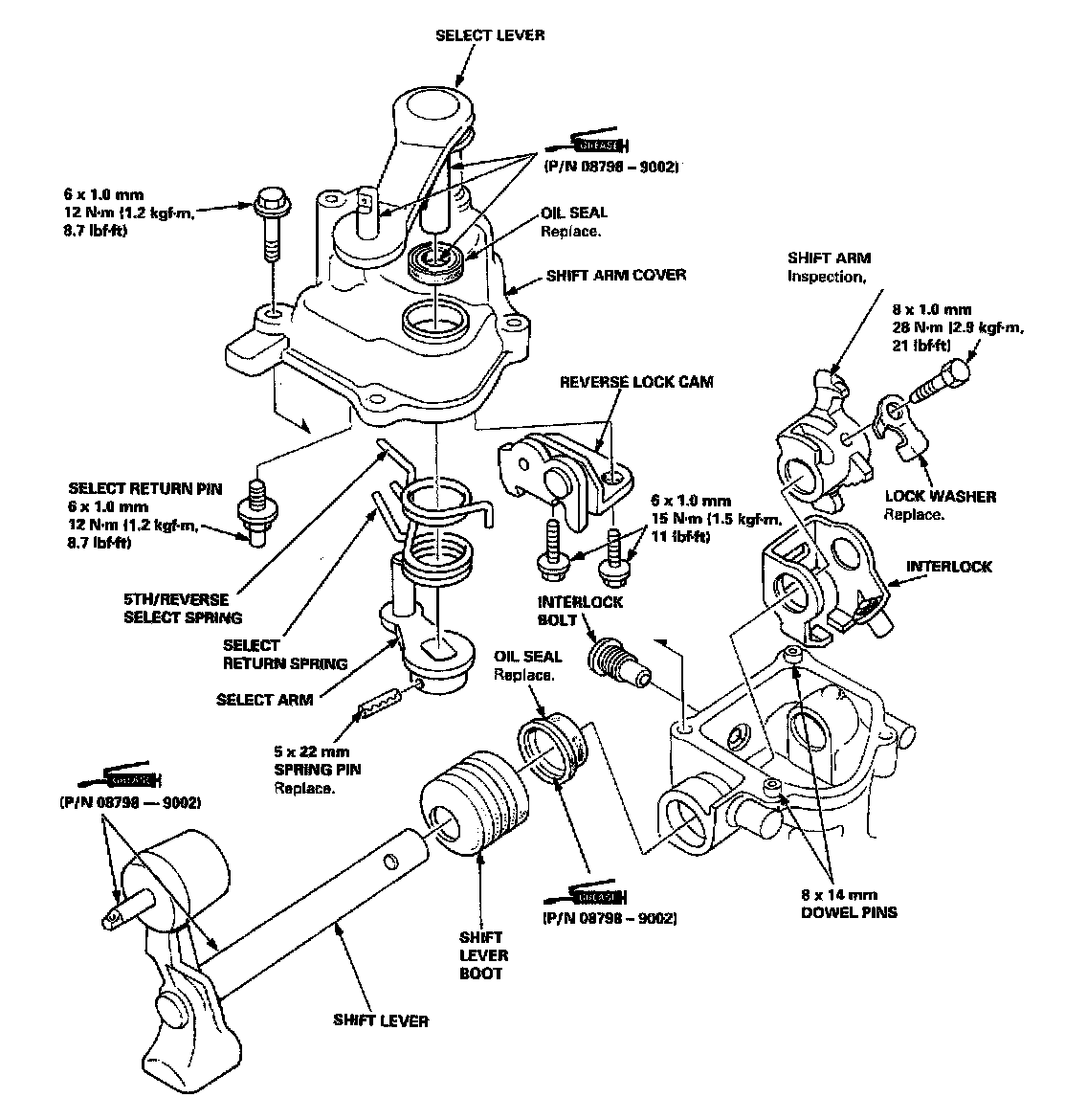

S2A4 5-spd M/T, Shift Arm Assembly:

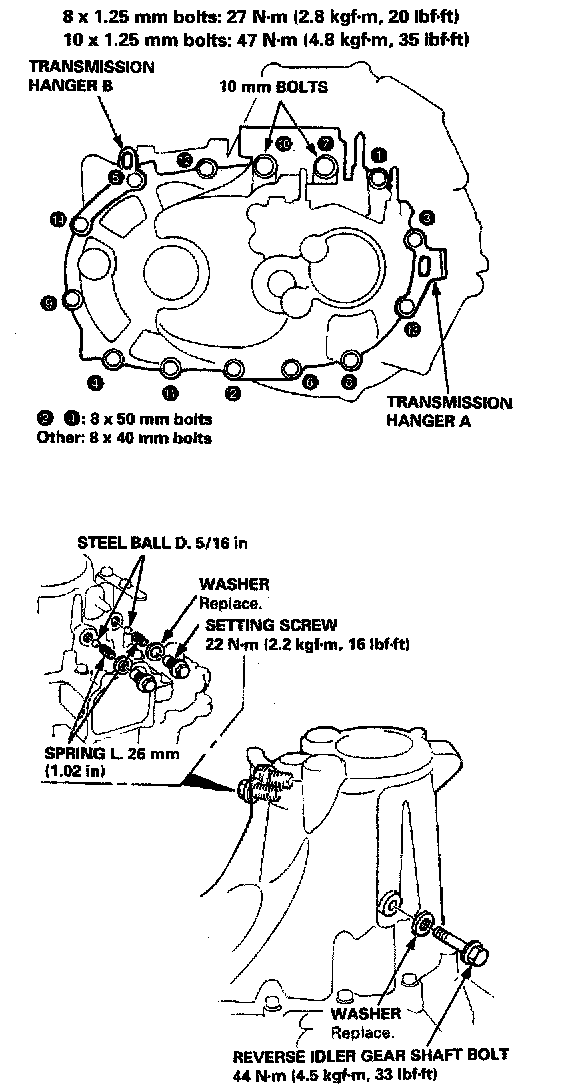

S2A4 5-spd M/T, Housing Sealing Bolt:

S2A4 5-spd M/T, Transmission Hanger/Reverse Idler:

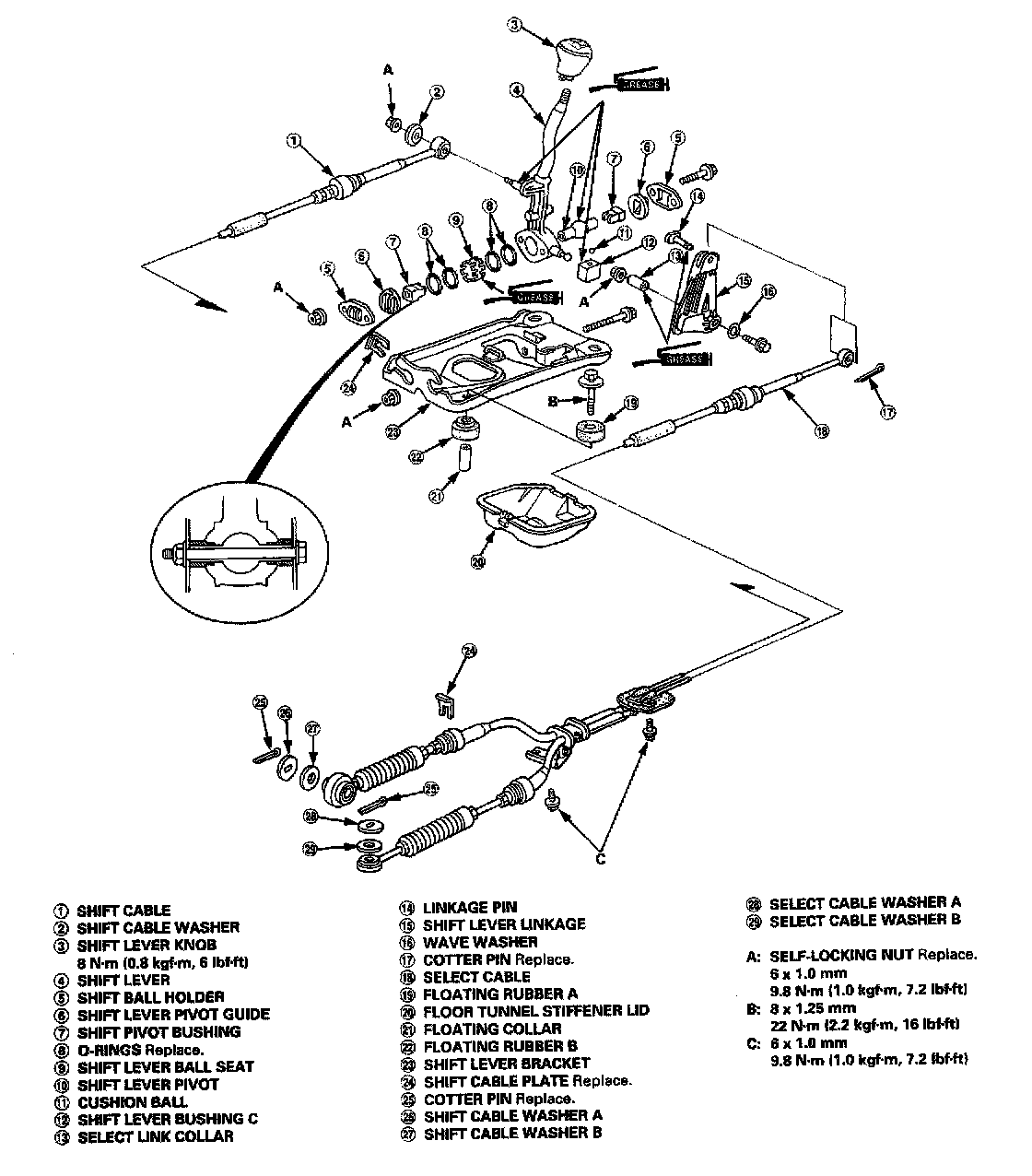

S2A4 5-spd M/T, Gearshift Mechanism:
