Valve Cover

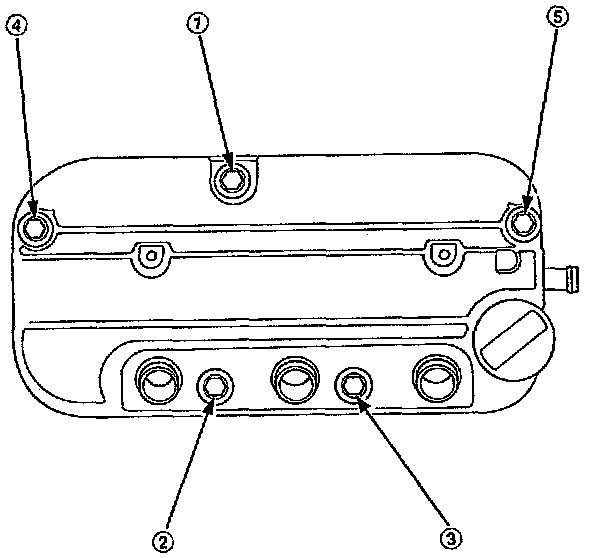

TIGHTENING SEQUENCE/SPECIFICATIONS
Use two or three steps to tighten nuts to a final torque of 12 Nm (107 in. lbs.). Use tightening shown in image.
