Oil Pan, Engine
Oil Pan, Engine

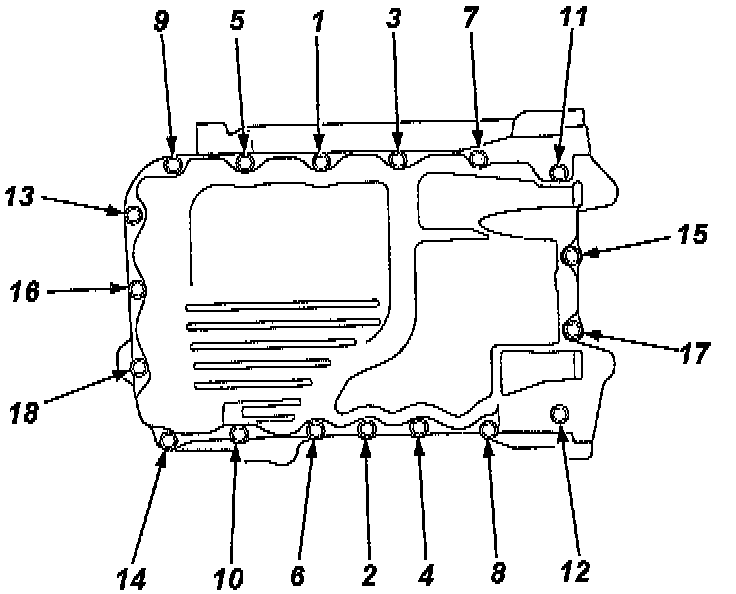

TIGHTENING SEQUENCE/SPECIFICATIONS
Tighten bolts to 12 Nm (107 in. lbs.). Refer to image for tightening sequence.
