Integra GS-R Sedan L4-1797cc 1.8L DOHC (VTEC) MFI
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Engine
>>
Cylinder Head Assembly
>>
Valve Seat
Valve Seat
Valve Seat

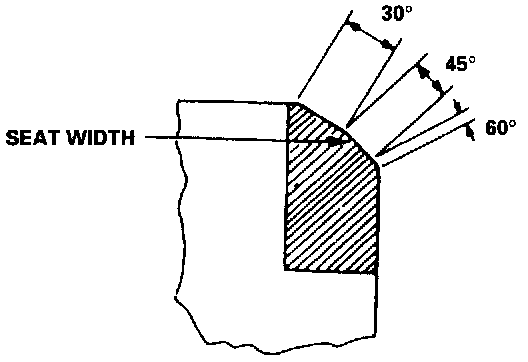

Width:
Standard: 1.25 - 1.55 mm (0.049 - 0.061 inch)
Service Limit: 2.0 mm (0.08 inch)
