Throttle Control Relay: Diagrams

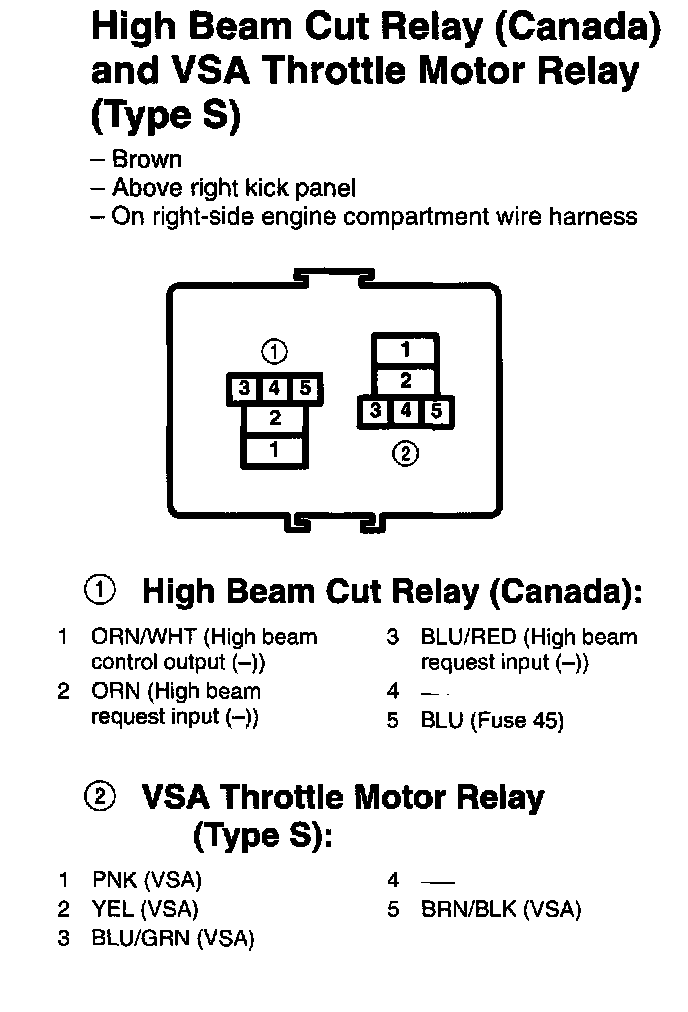

High Beam Cut Relay (Canada) and VSA Throttle Motor Relay (Type S):
