Automatic Climate Control

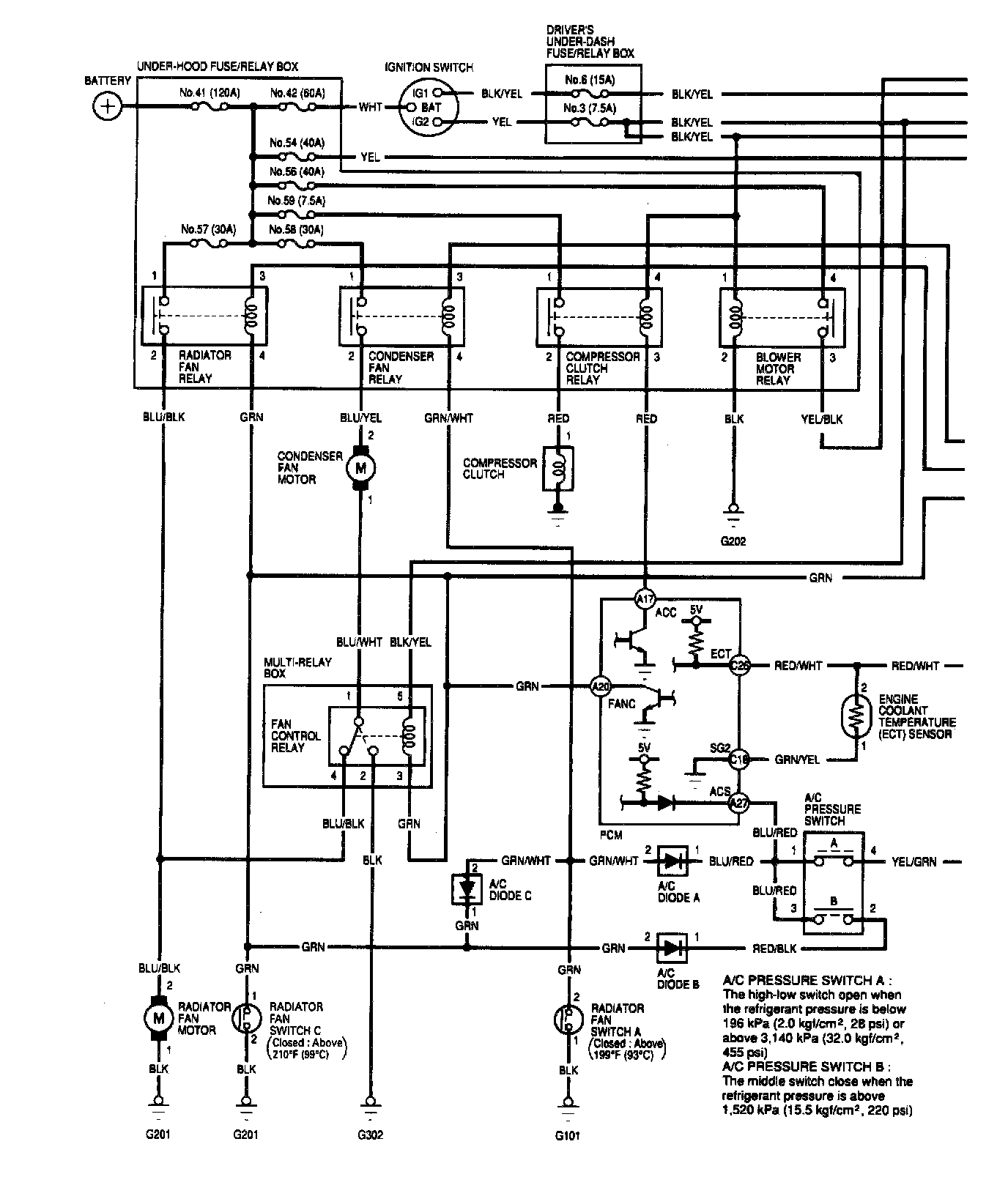

Climate Control - Circuit 1:

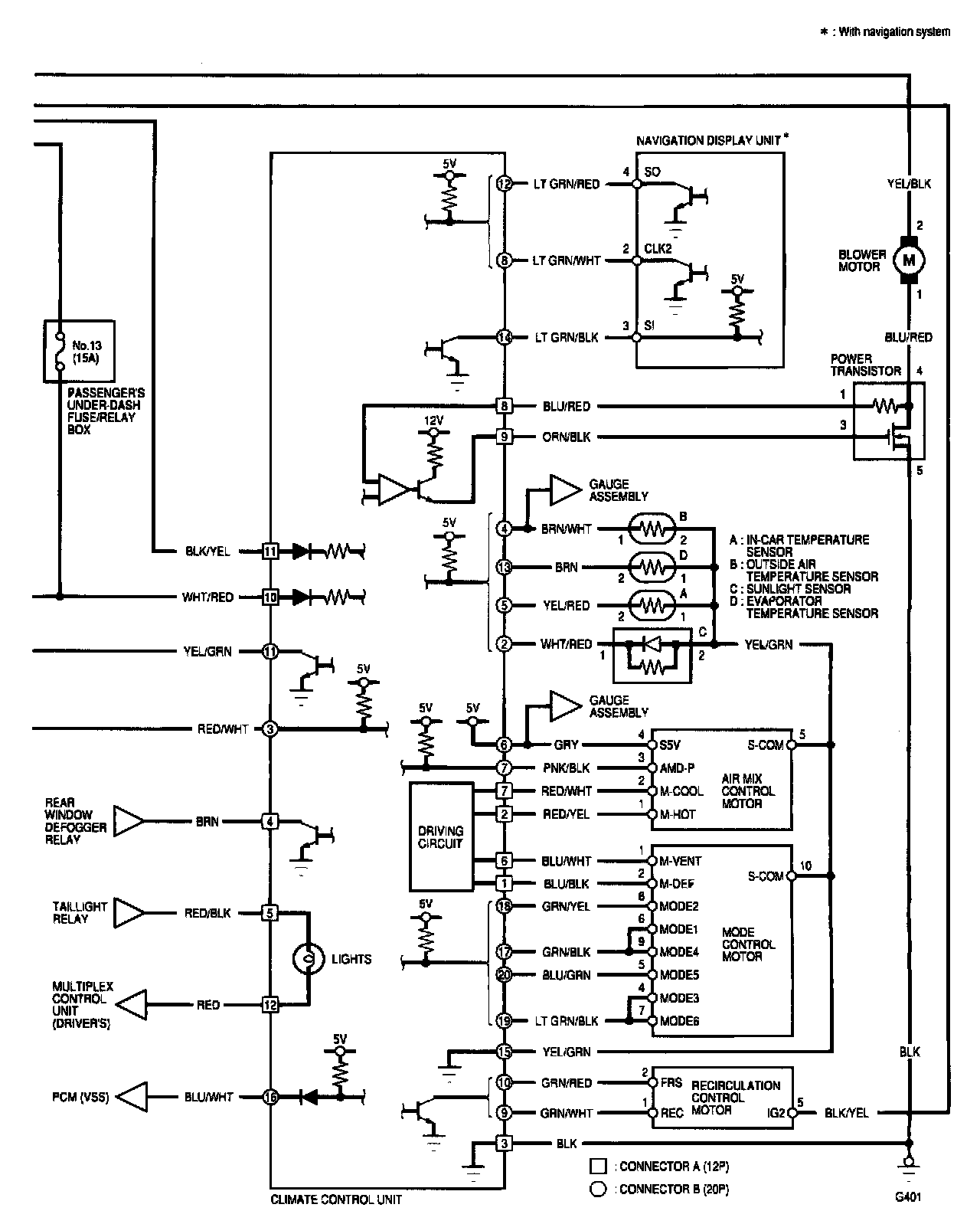

Climate Control - Circuit 2:

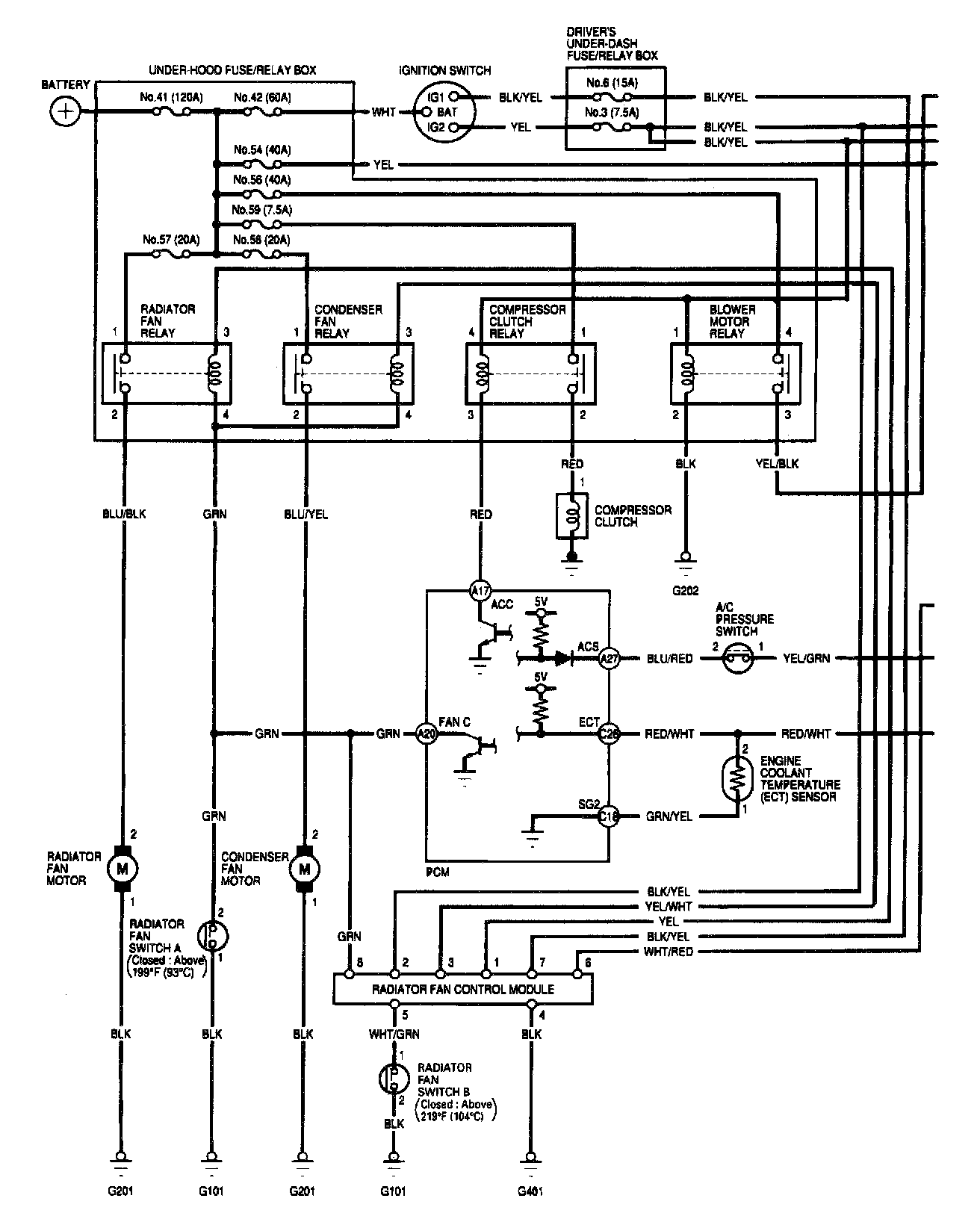

Climate Control - Circuit 1:



Climate Control - Circuit 2:
