Clock: Service and Repair
ClockReplacement
1. Remove the instrument panel.

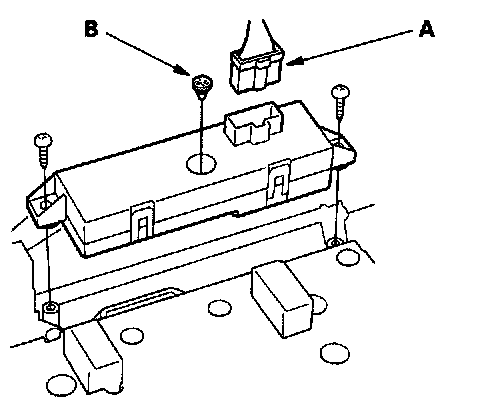

2. Disconnect the 5P connector (A) from the clock.
3. Remove the two mounting screws from the clock.
4. Remove the clock from the instrument panel.
5. If the necessary, check the bulb (B).
