Navigation Display: Service and Repair

Display Unit Removal/Installation

1. Remove the instrument panel.
2. Remove the rear console , and the console panel.
3. Remove the audio unit.

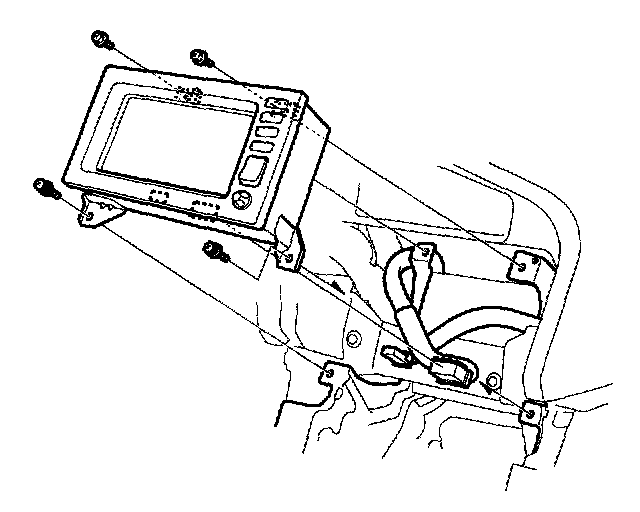

4. Remove the display unit.
5. Install the parts in the reverse order of removal.
