Navigation Display: Service and Repair

Display Unit Removal/Installation

1. Remove the instrument panel.
2. Remove rear console, and the console panel.
3. Remove the audio unit.

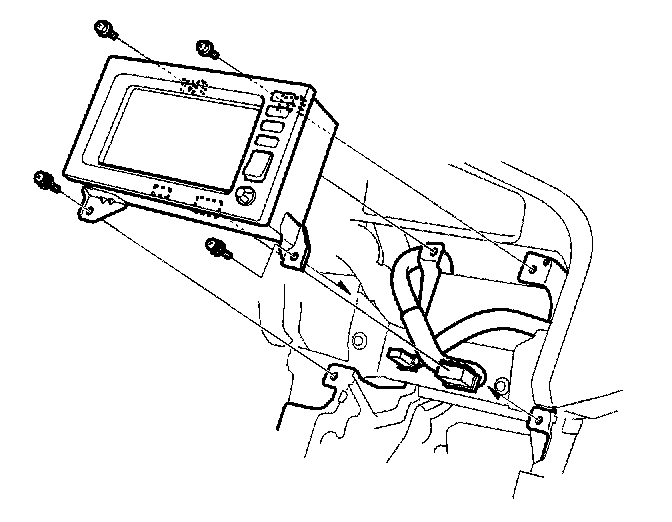

4. Remove the display unit.
5. Install the parts in the reverse order of removal.
