Alternator Pulley / Clutch: Service and Repair

Tensioner Pulley Replacement

1. Remove the auto-tensioner.

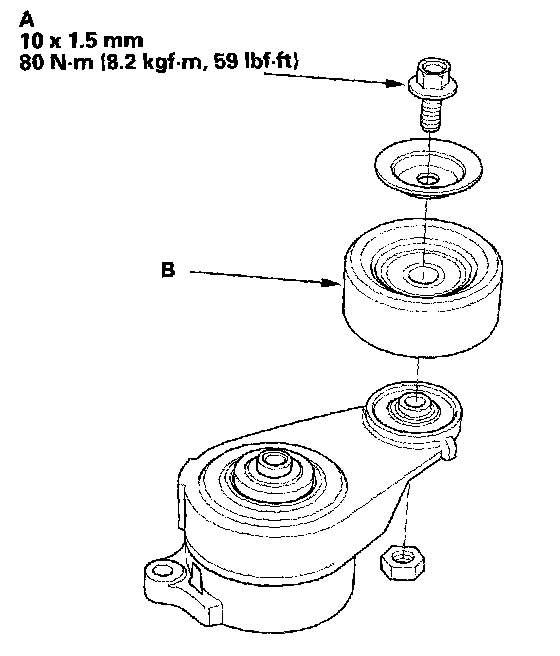

2. Remove the pulley bolt (A) (left-hand threads), and remove the tensioner pulley (B).
3. Install the tensioner pulley in the reverse order of removal.
