Fuel Pressure Regulator: Service and Repair

Fuel Pressure Regulator Replacement

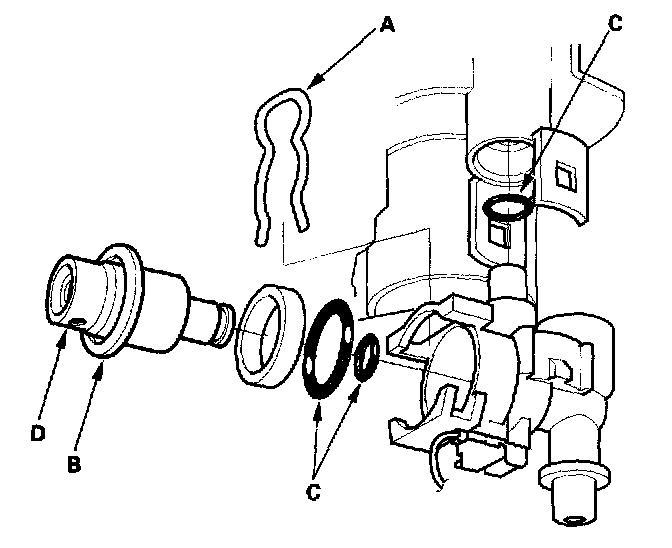

1. Remove the fuel tank unit.




2. Remove the clip (A).
3. Remove the fuel pressure regulator (B).
4. Install the regulator in the reverse order of removal with new O-rings (c) lubricated with clean engine oil.
Make sure the regulator is installed with the drain hole (D) facing down.
