Brake Pedal Assy: Service and Repair

Brake Pedal Replacement

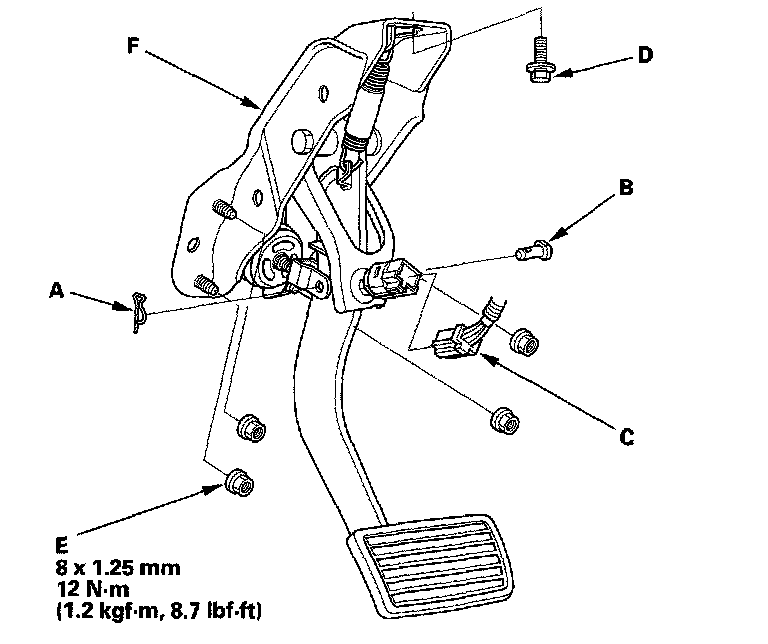

1. Remove the lock pin (A) and pin (B).

NOTE: Use a new lock pin whenever installing.





2. Disconnect the brake pedal position switch connector (C).
3. Remove the brake pedal bracket mounting bolt (D) and nuts (E).
4. Remove the brake pedal with bracket (F).
5. Install in the reverse order of removal.
6. Do the brake pedal and brake pedal position switch adjustment.
