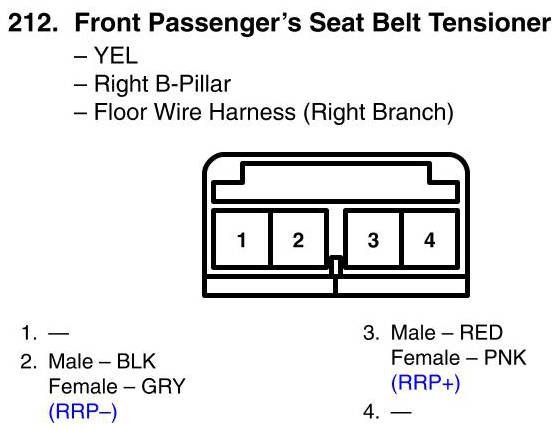

View 212 - Front Passenger's Seat Belt Tensioner Connector View
View 212 - Front Passenger's Seat Belt Tensioner Connector View
