Power Steering Gear - Modified
86audi2Applies To
4000S
4000CS QUATTRO
1986
Group
48
Subject
Power Steering
Part Identifier N/A
Key Points
Modified power steering gear
A-272
Number
86-01
November 3, 1986
Steering gears with modified gaskets have been used in production, beginning with VIN 81 GA 054 285.
This change is a preparatory measure that will make it possible later to introduce a new vane pump with higher pump pressure.
The replacement part number of the new steering gear is stamped on the identification plate on the rotary valve housing. Use this number when replacing the steering gear.
Note
When repairing:
^ use only new repair kit, Part No. 811 498 020 A
^ thrust ring 2 (see below) is now included in repair kit and mounts on end housing 3 with previous O-ring 1
^ bevel on thrust ring must match bevel on end housing when installed (see inset below)
^ repair kit also includes a new mounting sleeve (see steering rack seal, installing, on page 2)

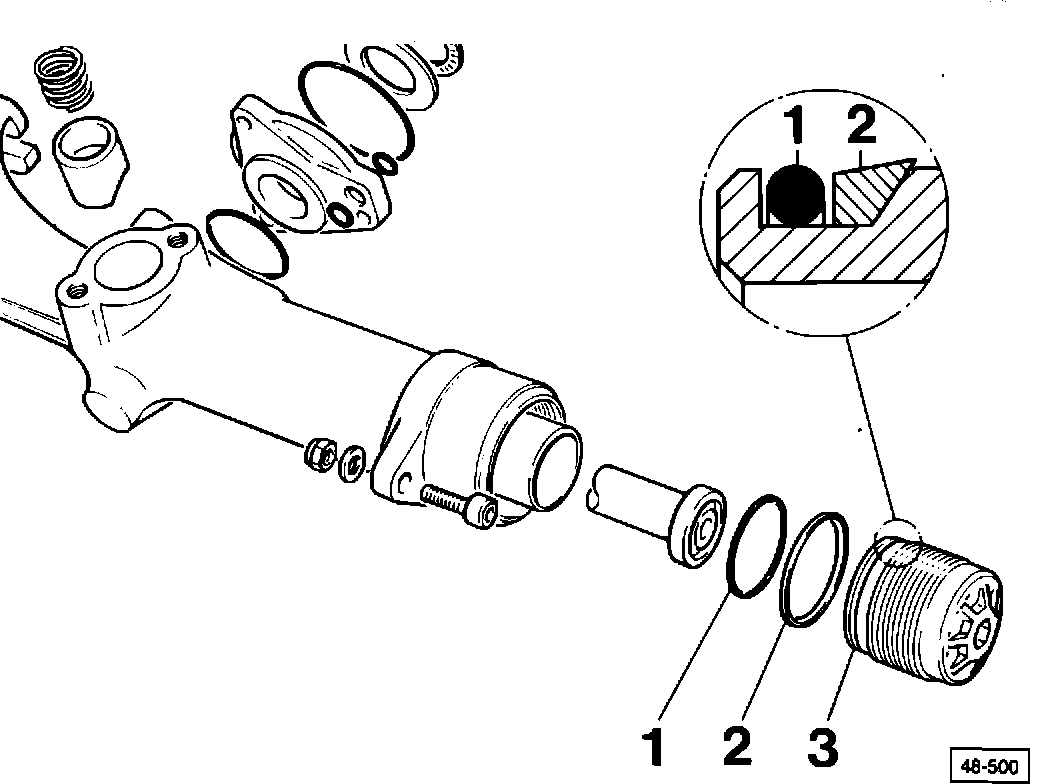

1 O-ring, 44 x 2.5 mm 2 thrust ring, replace 3 end housing
CAUTION Only the new repair kit, Part No. 811 498 020 A, will be available when the old seal sets are used up. When repairing the earlier type steering gears, thrust ring 2 must not be used.
Steering rack seal, installing
Work sequence
- place mounting sleeve c on rack seal d
- press rack seal d down to stop using mounting sleeve
- remove mounting sleeve parts b and c
- push mounting sleeve a and rack seal d onto rack to stop (arrow)
CAUTION
Clean end of rack thoroughly before pushing on new seal. Lubricate rack with hydraulic fluid
Apply force to mounting sleeve part only when pushing seal onto rack.
Lubricate outside of rack seal with multipurpose grease.
- remove mounting sleeve a
- push rack seal to stop on steering housing (arrow)
- drive rack seal into steering housing to stop
- install circlip
- install securing ring with prongs facing outward
