EGR Maintenance Light: Service and Repair

Resetting Oxygen Sensor Elapsed Mileage Counter

Note:

It is not necessarv to remove steering wheel or instrument cluster to reset elapsed mileage counter.

Working sequence

- remove screws from instrument cluster cover.






- pull cover toward steering wheel

- lift upper instrument cluster cover off of instrument cluster

- break plastic tab off back of instrument cluster.

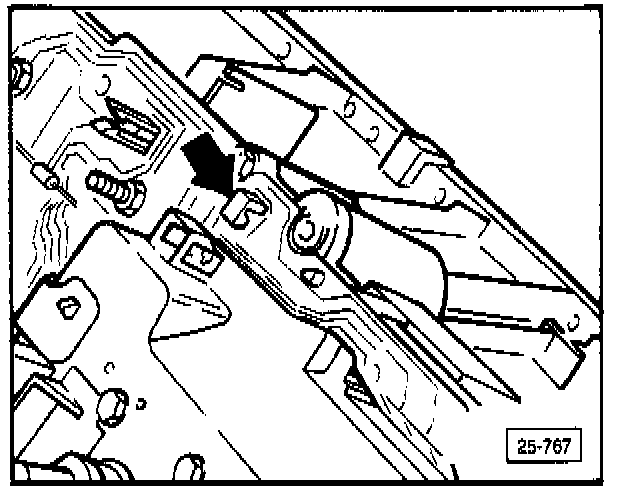

- insert screwdriver in opening and push reset lever toward rear of vehicle

- install upper instrument cluster cover

- install front instrument cluster cover
