Mechanical Climate Control

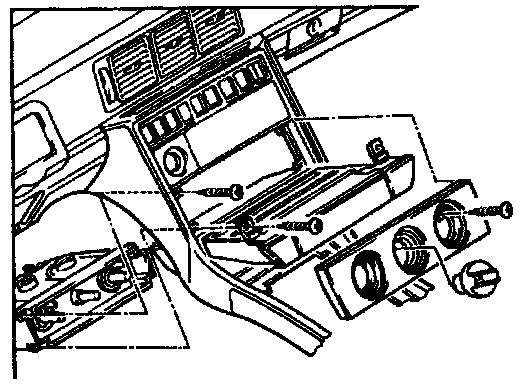

A/C Control Head:

- Pull rotary knobs from A/C control head.
- Remove cover.
- Remove 4 A/C control head screws.
- Remove center console.

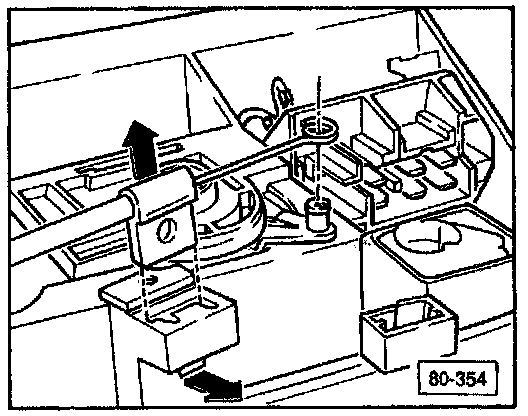

Cables:

- Remove cables.
- Install in reverse order of removal.

Cables:

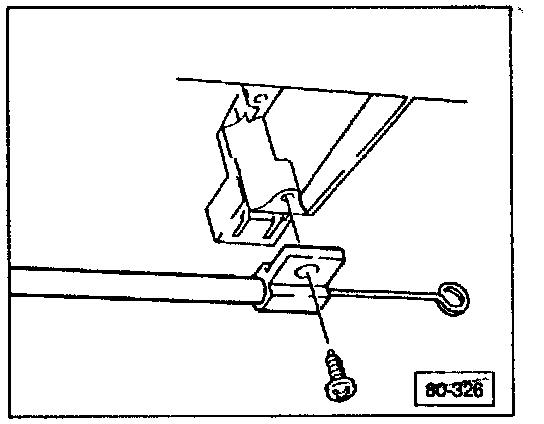

NOTE:
If cable retainer in A/C control head is broken, secure with screw.
