Fuel Injection Code, Checking

^ run engine at 3000 RPM for approximately 30 seconds
^ switch engine and ignition OFF
^ press and hold RESET button
^ switch ignition ON (while holding RESET button down)





^ press lower function selector switch and hold down

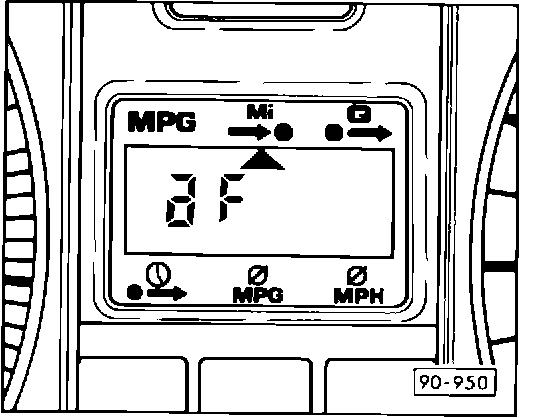

^ a (symbol) and appropriate fuel injection code displayed
^ code F for MPI

If the correct fuel injection code is displayed,
^ switch ignition OFF
^ check average speed display, following

If the correct fuel injection code is NOT displayed,
^ check coding connector for proper application
^ check fuel consumption signal, see Index
