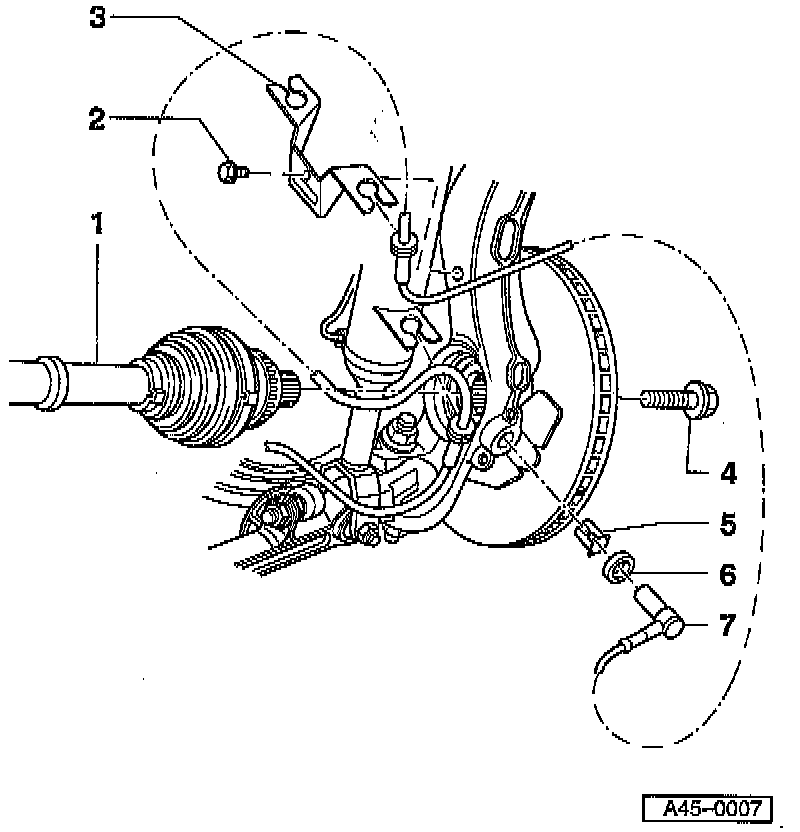

Front





LEGEND
1. Drive axle with ABS wheel speed sensor rotor
2. Bolt with washer
3. Bracket
4. Flanged bolt
5. Clamping sleeve
6. Seal
7. ABS wheel speed sensor
