Cruise Control Servo: Service and Repair

Removing

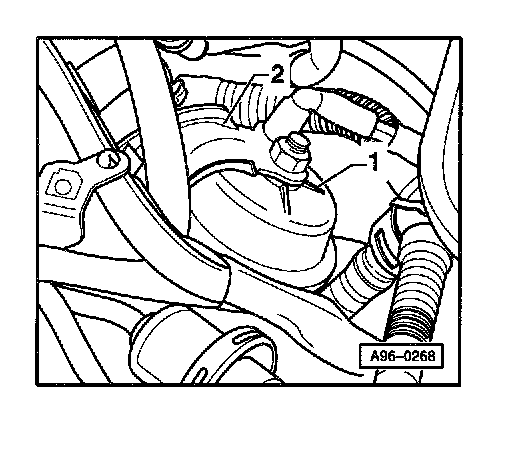

- Remove actuator -1- from bracket -2-.
Tightening torque: 25 Nm (18 ft lb).
- Remove vacuum line.
- Disconnect linkage from actuator.


Installing
- Install in reverse order of removal.
