Air Injection Control Valve: Service and Repair

Combination valve for secondary air inlet, removing and installing

Removing





^ Remove engine cover -arrows-.

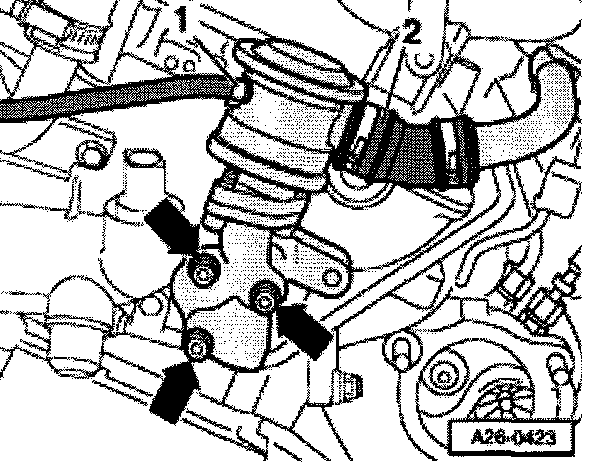

^ Disconnect hoses -1- and -2- from combination valve.
^ Unbolt combination valve -arrows,

Installing
Installation is carried out in the reverse order of removal.

Note: Replace gaskets and seals.

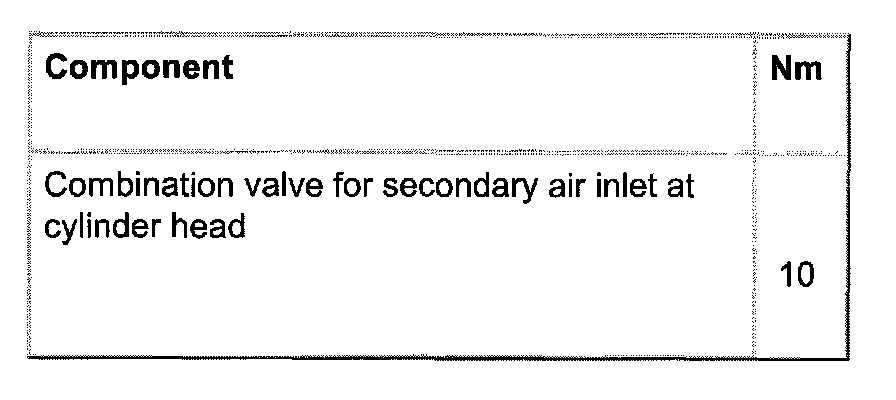

Tightening torque
