Rearview Mirror (Roof Mounted), Removing and Installing

Rearview Mirror (roof Mounted), Removing And Installing

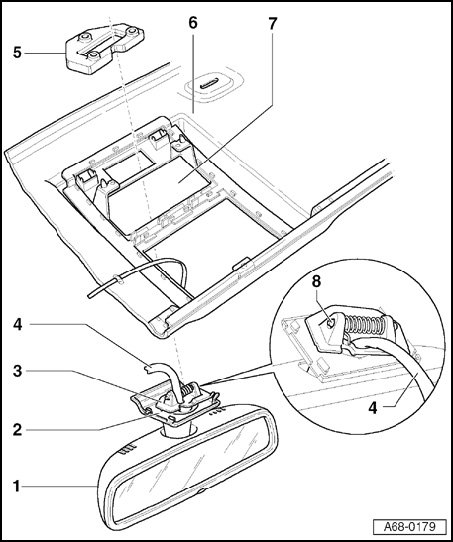

1 - Rearview mirror
- Removing
- Unclip molded headliner cover - 7 - at front.
- Disconnect harness connector - 4 - to rearview mirror.
- Using a screwdriver on the left side, pry out rearview mirror between base plate - 5 - and mirror base - 3 -.
- Installing:
- Check whether locking pin - 8 - is locked before installing.
- Insert right side of mirror base - 3 -.
- Clip in mirror base cover - 2 - on right side.
- Press up mirror base cover - 2 - on left side along with mirror base - 3 - until locking pin - 8 - engages.







2 - Mirror base cover
3 - Mirror base
4 - Cable
5 - Ground plate
6 - Molded headliner
7 - Molded headliner cover
8 - Locking pin
